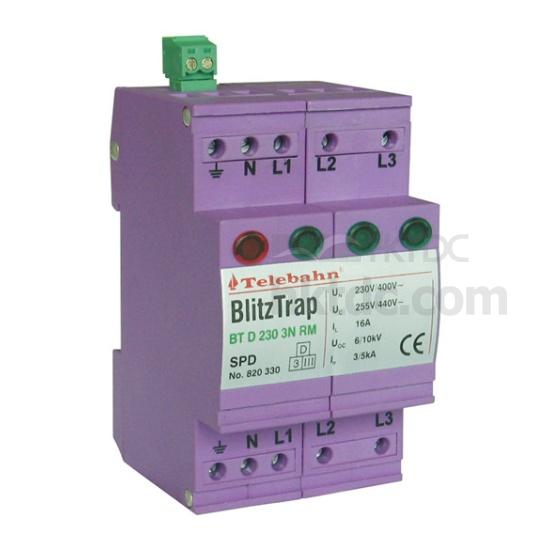

Surge Protective Device

生产所需时间:

10 日

产品型号:

BT D 230 3N RM

品牌名称:

Telebahn

颜色:

Purple thermoplastic, UL94-V0

尺寸:

9 x 6 x 5cm

港口:

Shenzhen, Zhuhai, Hong Kong

付款方式:

T/T, Paypal

最低订购数量:

5 piece(s)

是否有包装:

有

是否可定制:

是

描述

联络供应商

Product description:

Main characteristic:

Technical data:

Type: BT D 230 3N RM.
Nominal AC voltage UN: 230V/400V.
Rated voltage (maximum continuous AC voltage) Uc: 320V/440V.
Nominal load current IL: 16A.
Nominal discharge current (8/20) (L-N) In: 3kA.
Nominal discharge current (8/20) (L+N-PE) In: 5kA.
Combination wave (L–N) UOC: 6KV.
Combination wave (L+N–PE) UOC: 10KV.
Voltage protection level (L–N) Up: ≤ 1.15kV.
Voltage protection level (L/N–PE) Up: ≤ 1.5kV.
Response time (L–N) tA: ≤ 25ns.
Response time (L/N–PE) tA: ≤ 100ns.
Maximum backup fuse: 16A gL/gG.
Short-circuit withstand capability at maximum backup fuse: 6kArms.
Operating temperature range TU: -40℃~+80℃.
Cross-sectional area: 0.5mm ~ 6mm solid / 4mm flexible.
Mounting on: 35mm DIN rail.
Enclosure material: purple thermoplastic, UL94-V0.
Dimension: 3 mods.
Test standards: IEC 61643-1; GB 18802.1; YD/T 1235.1.
Certification: CE (LVD, EMC).
Type of remote signaling contact: break contact.
Switching capacity AC: 250V/0.5A.
Switching capacity DC: 250V/0.1A; 125V/0.2A; 75V/0.5A.
Cross-sectional area for remote signaling contact: maximum 1.5mm solid/flexible.
Electronic devices SPD three phrases protection.
