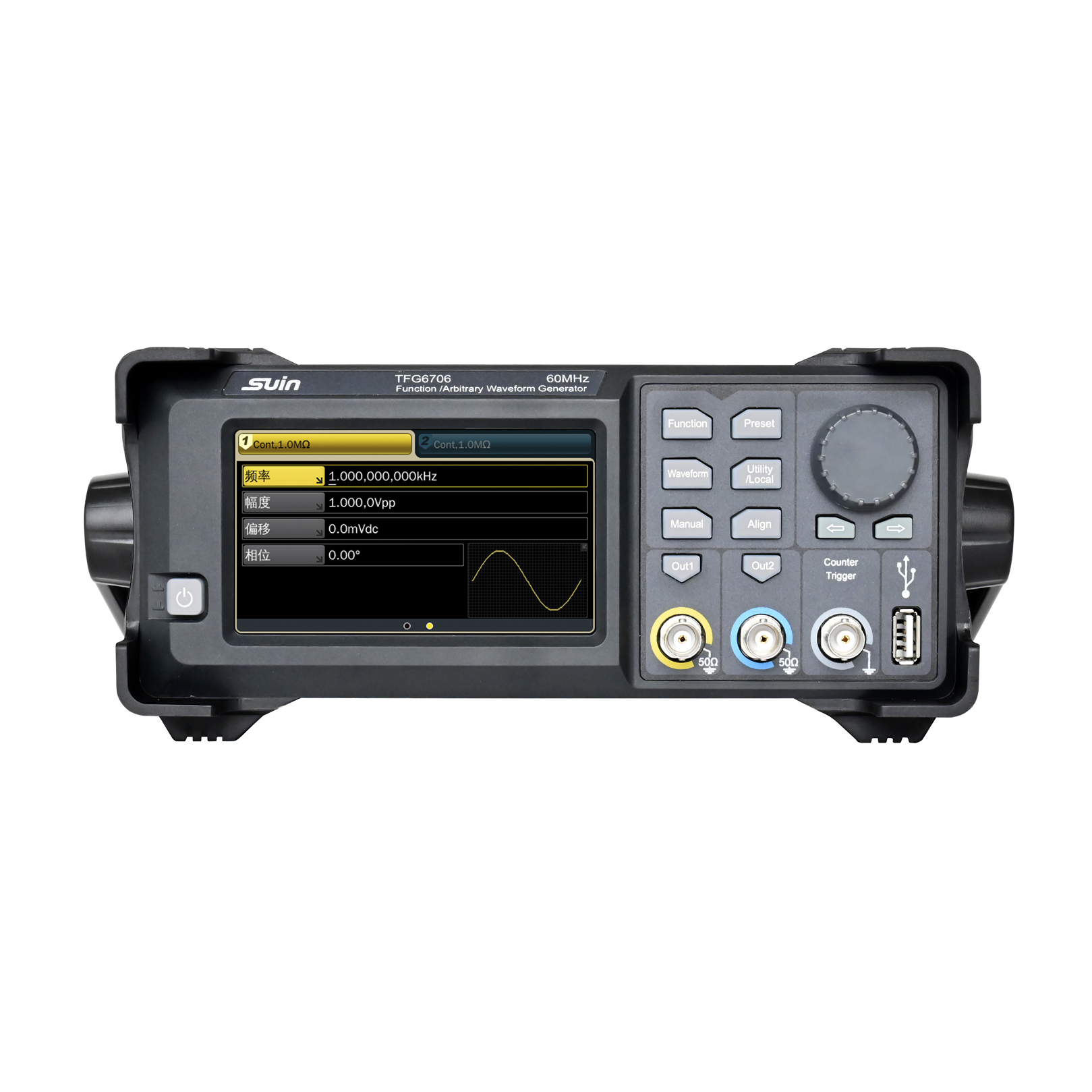

TFG6706 Function/Arbitrary Waveform Generator

描述

联络供应商

Features

*625MSa/s sample rate, 16bit vertical resolution and 32Mpts arbitrary length

*Amplitude is upto 24Vpp with 0.1mVpp resolution

*Economic type with improved performance

Specifications

		TFG6702	TFG6703	TFG6704	TFG6706
Frequency
Sine		1 μHz~20 MHz	1 μHz~30 MHz	1 μHz~40 MHz	1 μHz~60 MHz
Square		1 μHz~20 MHz	1 μHz~30 MHz	1 μHz~40 MHz	1 μHz~40 MHz
Pulse		1 μHz~10 MHz	1 μHz~10 MHz	1 μHz~10 MHz	1 μHz~25 MHz
Others		1 μHz~10 MHz	1 μHz~10 MHz	1 μHz~10 MHz	1 μHz~20 MHz
Resolution		1 μHz
Accuracy		±(25ppm + 34p Hz)
Waveform
Type		166 kinds include: Sine, Square, Ramp, Pulse, Noise, DC, PRBS, user-defined
		arbitrary waveform, user-defined harmonic, etc.
Sample Rate		625MSa/s
Vertical Resolution		16 bits
Arbitrary	Sample Rate	625 MSa/s (jump-point sample); 1 μSa/s~312.5 MSa/s (poing-to-point sample)
	Length	2-32Mpts
	Resolution	16 bits
Squre	Rise/Fall Time	≤3 ns (typ.)
	Duty Cycle	0.0001 %~99.9999 %
Pulse	Rise/Fall Time	≥3 ns
	Duty Cycle	8ns ~(period-8ns)
Amplitude
Range		2 mVpp~24 Vpp, frequency≤10 MHz 2 mVpp~12 Vpp, frequency>10 MHz
Resolution		0.1 mVpp or 4 digits
Accuracy		±(1% of setting+1mV), Sine 1kHz,0V offset,≥10mVpp
DC Offset (High-Z)
Range		±12 Vpk（ac＋dc)
Resolution		0.1 mVdc or 4 digits
Accuracy		±(\|setting value\|×1 %＋amplitude value×0.5 %＋2 mV)
Sweep
Range		1 μHz ~ upper frequency limits
Type		Linear, logarithmic, step
Time		1ms to 500s
Burst
Mode		Triggered, Gated
Period		1μs ~ 999.9s
Count		1~231-1
Modulation
FM, AM,PM,PWM, SUM	Carrier Waveform	Sine, Square, Ramp (only pulse for PWM), etc.
	Modulation Waveform	Sine, Square, Ramp, etc.
	Modulation Frequency	1mHz to 100kHz
FSK,4FSK,NFSK,PSK, 4PSK,NPSK,ASK,OSK	Carrier Waveform	Sine, Square, Ramp, etc.
	Hop Frequency	1 μHz to upper limits
	Hop Rate	1mHz to 1MHz
Counter
Frequency Range		1mHz to 300MHz (DC Couple) 10Hz to 300MHz (AC Couple)
Resolution		8digits/s
Period and Pulse Width Measurement		100ns to 20s
Duty Cycle Measurement		0.1% to 99.9%
General Characteristic
Power		100V~240V,50/60Hz(1±10%); 100V~120V,400Hz(1±10%) <45 VA；<80 VA (with optional P/A)
Dimension & Weight		256×105×321mm, approx. 2.4kg/2.6kg (with optional P/A)

Options
TCXO	±1ppm accuracy,±1ppm/year aging rate
Power Amplifier	2 times power amplifier, Max output power 8W(8Ω)

Standard Accessories
Power Cord	1
BNC Cable	1
CD (software+manual)	1
