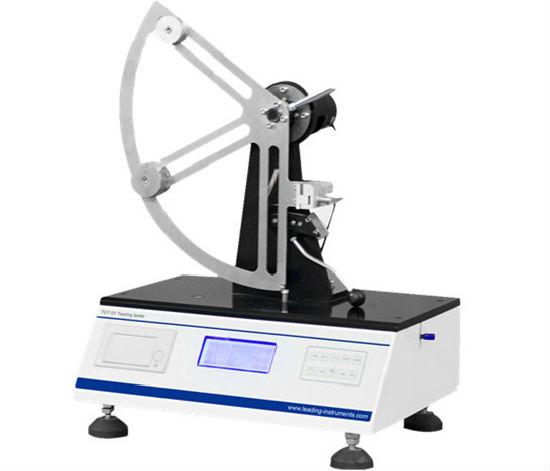

TGT-01 Tearing Tester is applicable in the tearing test of films, sheets, flexible PVC, PVDC, waterproof films, woven materials, polypropylene, polyester, paper, cardboard, textile and non-woven, etc.

CHARACTERISTICS
      * Automatic and electronic measurement;
      * Pneumatic specimen clamping and pendulum releasing;
      * Rapid force range selection;
      * Multiple capacities of pendulum;
      * Multi-testing units;
      * RS232 interface;

PRINCIPLE
Lift the pendulum up to certain height, enable it to have a certain potential energy, pendulum tears the specimen while swinging down, computer calculates the decreasing energy caused by tearing so as to obtain the needed force for tearing.

TECHNICAL INDEXES

•       Pendulum Capacities: 200gf, (400gf, 800gf, 1600gf, 3200gf, 6400gf)
•       Gas Source Pressure: 0.6MPa (users provide gas source themselves)
•       Gas Inlet: Ф4mmpolyurethane pipe
•       Dimensions:480mm(L) x380 mm(B) x560mm(H)
•       Power: AC 220V 50Hz
•       Net weight: 23.5kg

 STANDARDS
      ASTM D1922, ASTM D1424, ASTM D689, TAPPI T414, ISO 6383, ISO 1974

CONFIGURATION
Standard:Mainframe, one basic pendulum, one augmenting weight, one check weight, communication cable, software
      Optional:

•       Basic pendulum: 200gf, 1600gf
•       Augmenting weight: 400gf , 800gf ,3200gf ,6400gf
•       Check weight: 200gf, 400gf, 800gf, 1600gf, 3200gf, 6400gf, and sampling knife.
