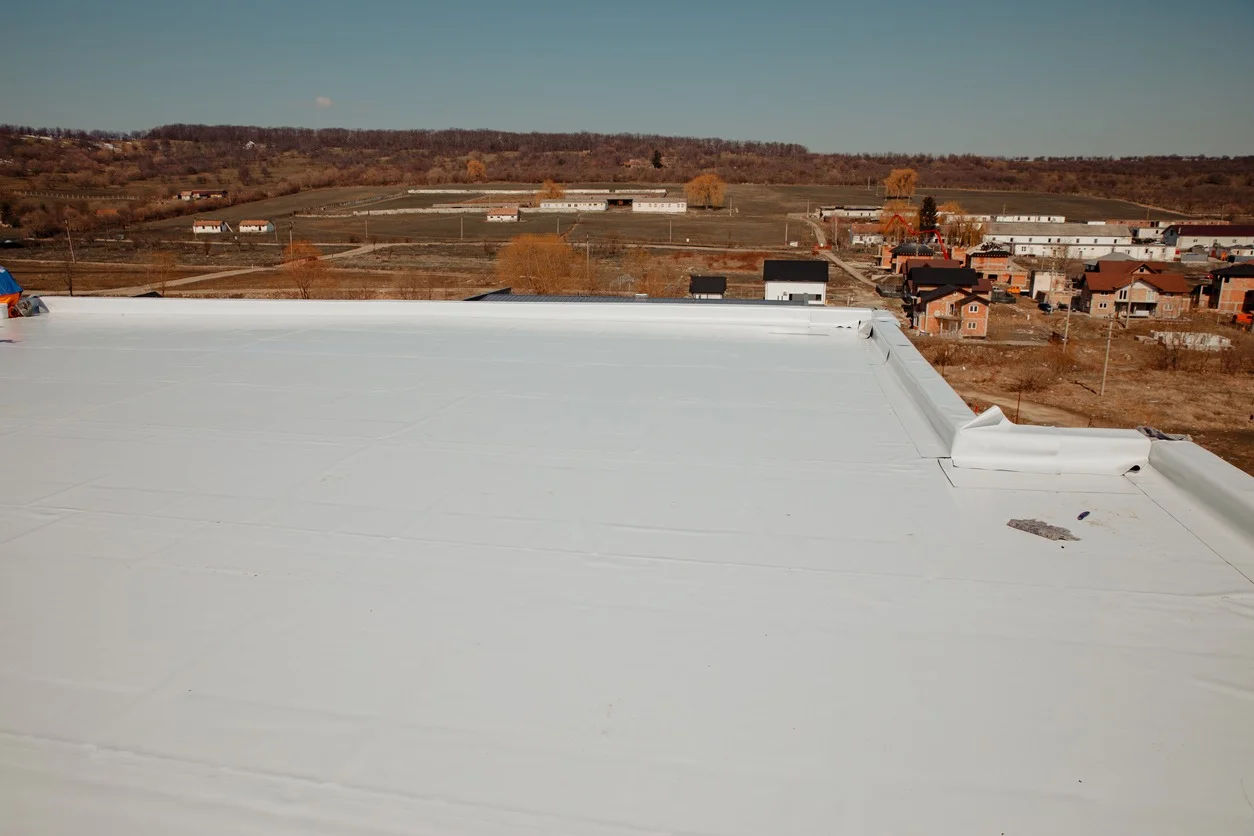

Weidun®️005 TPO Roofing Membrane refers to thermoplastic polyolefin, a type of single-ply roofing membrane material. It’s commonly used in commercial and residential roofing applications. TPO roofing is known for its durability, flexibility, and resistance to ultraviolet light and chemical exposure.
Uses
Weidun 005 TPO Roofing Membrane is considered a good option for single-ply roofing systems due to its excellent physical properties, ease of installation, and minimal maintenance requirements.
Advantages
Highly durable and resistant to punctures, tears, and impacts.
Excellent resistance to UV radiation, ozone, and chemical exposure, ensuring longevity.
Flexible, allowing for easier installation and adaptability to a variety of roof designs and shapes.
Heat-welded seams create strong bonds, enhancing the overall strength of the roofing system.
Recyclable, making it an environmentally conscious choice compared to some other roofing materials.

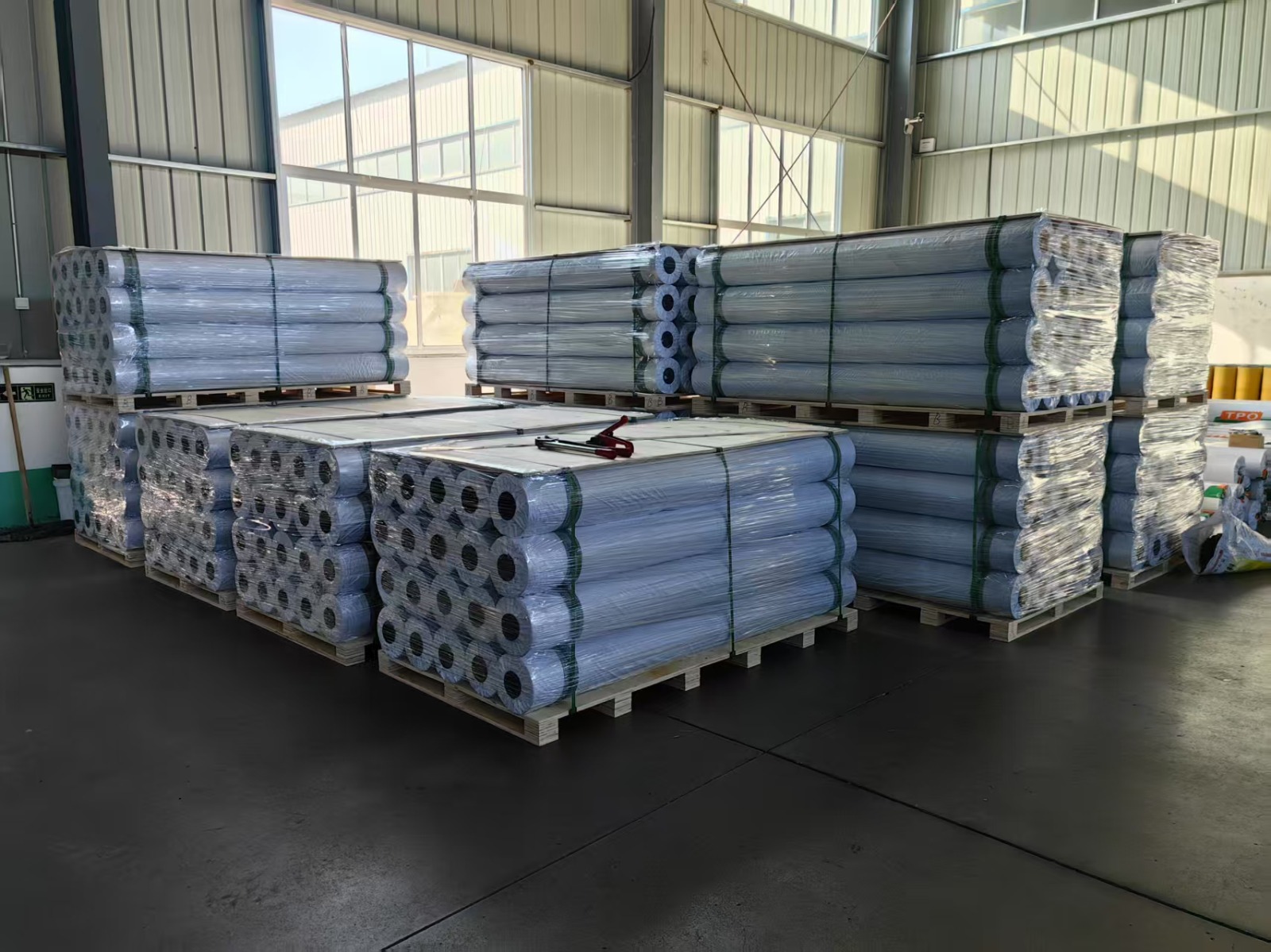

Storage and Handling
To prevent damage, support rolls on end in an upright position and store ina clean, dry location, covering as necessary to protect from environmental damage. Monitor environmental conditions during storage.
Roll Size* | 20.0m |
Roll Length | 10.0m |
Roll Width | 2.0m |
Roll Thickness | 12mm; 1.5mm |
Top side Surfacing | Smooth; Fleeced-back |
Bottom Side Surfacing | Smooth; Self-adhesive |
Technical Data Sheet
Property | Standard Minimum Valve | Weidun Value |
Elongation at 23℃ +/-2℃, (%) | 500 | 500 |
Low-temperature flexibility, at -10 ℃ | No crack | No crack |
Water penetration ( Maintain a water pressure of 1.5bar for 7days ) | Non-penetration | Non-penetration |
Angle Tear Strength (N/mm) | 65 | 67 |
Thermal Treatment Dimensional Change Rate (%) | 4 | 2.8 |
Joint Peel Strength (N/mm) | 8 | 6 |
Tensile Strength at 23℃ (Mpa) | 15 | 15.8 |
