TSX 2520 SMD Crystal 12MHz-54MHz Xtal

品牌:

JGHC晶光华

是否可订造:

可以

型号编号:

T22

尺寸:

2.5x2.0x0.55mm

Nominal Frequency:

12-54MHz

Load Capacitance:

20pF or specif

Frequency Difference:

±20ppm or specif

Email:

alan@jghcrystal.com

Website:

www.jghcorp.com

描述

联络供应商

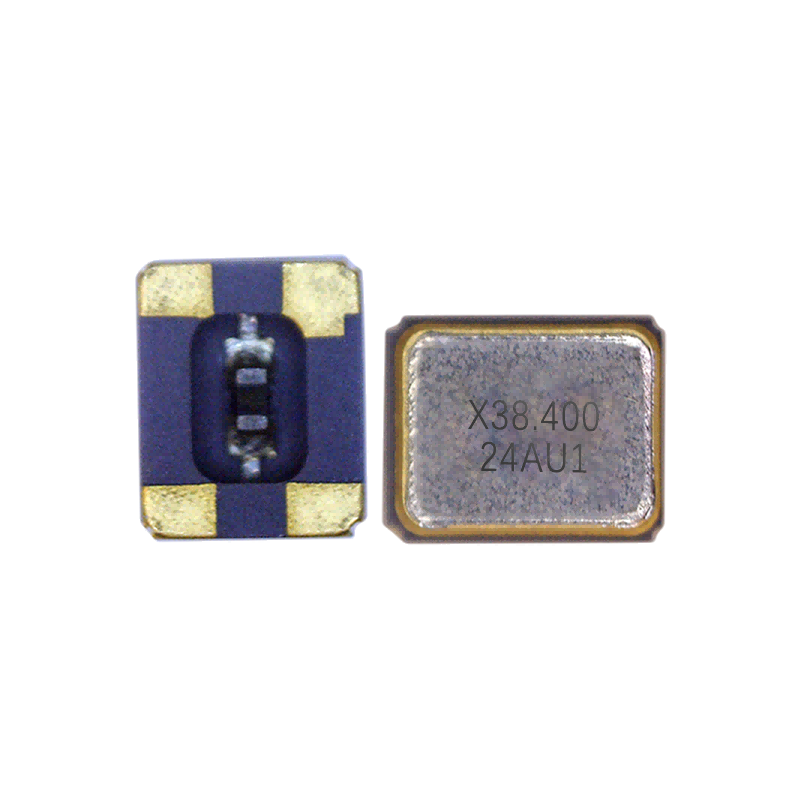

SMD 2520 Seam Temperature Sensing Crystal 2.5x2.0x1.0mm T22 Series

Our Temperature Sensing TSX Crystal provide better frequency stability and higher reliability for diverse mobile

communication and harsh automotive applications.

Features

High precision and high frequency stability；

Excellent thermal coupling between thermistor and crystal；

Application in mobile communications

RoHS Compliant / Pb Free

Crystals specifications

ITEMS/TYPE	T22
Frequency Range	12~54MHz
Load Capacitance	12pF, or specify
Frequency Tolerance (at 25 ℃)	±10 ppm, or specify
Frequency Stability Over Operating Temperature Range	±10 ppm, or specify
Operating Temperature Range	-40~+85℃, or specify
Shunt Capacitance (C0)	3pF Max.
Drive Level	1~200μW (50μW typical )
Aging (at 25 ℃)	± 1 ppm / year Max.
Storage Temperature Range	-40~ + 105 ℃
Thermistor Resistance (25℃)	100kΩ , or specify
Thermistor B-constant (25~50℃)	4250, or specify
