Tact Switch
生产所需时间:
10 日
描述
联络供应商
描述

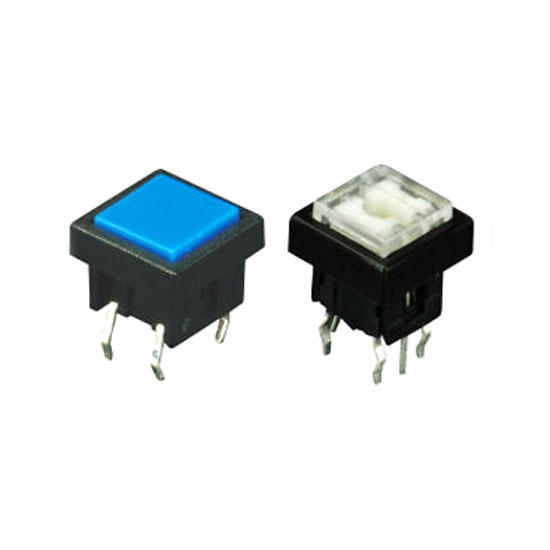

This tact switch comes with a tiny size for momentary purposes. It can be easily mounted onto different surfaces. This tact switch with excellent quality is ideal for a wide range of consumer electronic devices.
- Circuit: SPST.
- Current rating: 50mA.
- Voltage rating: 12VDC.
- Dielectric withstanding voltage: 250VAC for 1minute.
- Contact resistance: 100mΩ max.
- (Initial) insulation resistance: 100mΩ.
- Min. operating force: 200±50gf 300±50gf.
- Total travel: 0.25mm±0.1mm.
- Operating life: 100,000 cycles.
- Min. solder specifications: 260°C for 5 seconds.
- Function: momentary.
- Operating temperature: +10°C -+60°C.
