Terminals, terminal blocks and electrical protection for junction boxes
品牌:
BP
型号编号:
BPC-2I1O-DIN-10
Solid Conductor:
0.5-10mm²
Rated Conductor Cross-section:
10mm²
Connection Method:
2-in-1-out
Certifications:
CE, RoHS
描述
联络供应商
描述

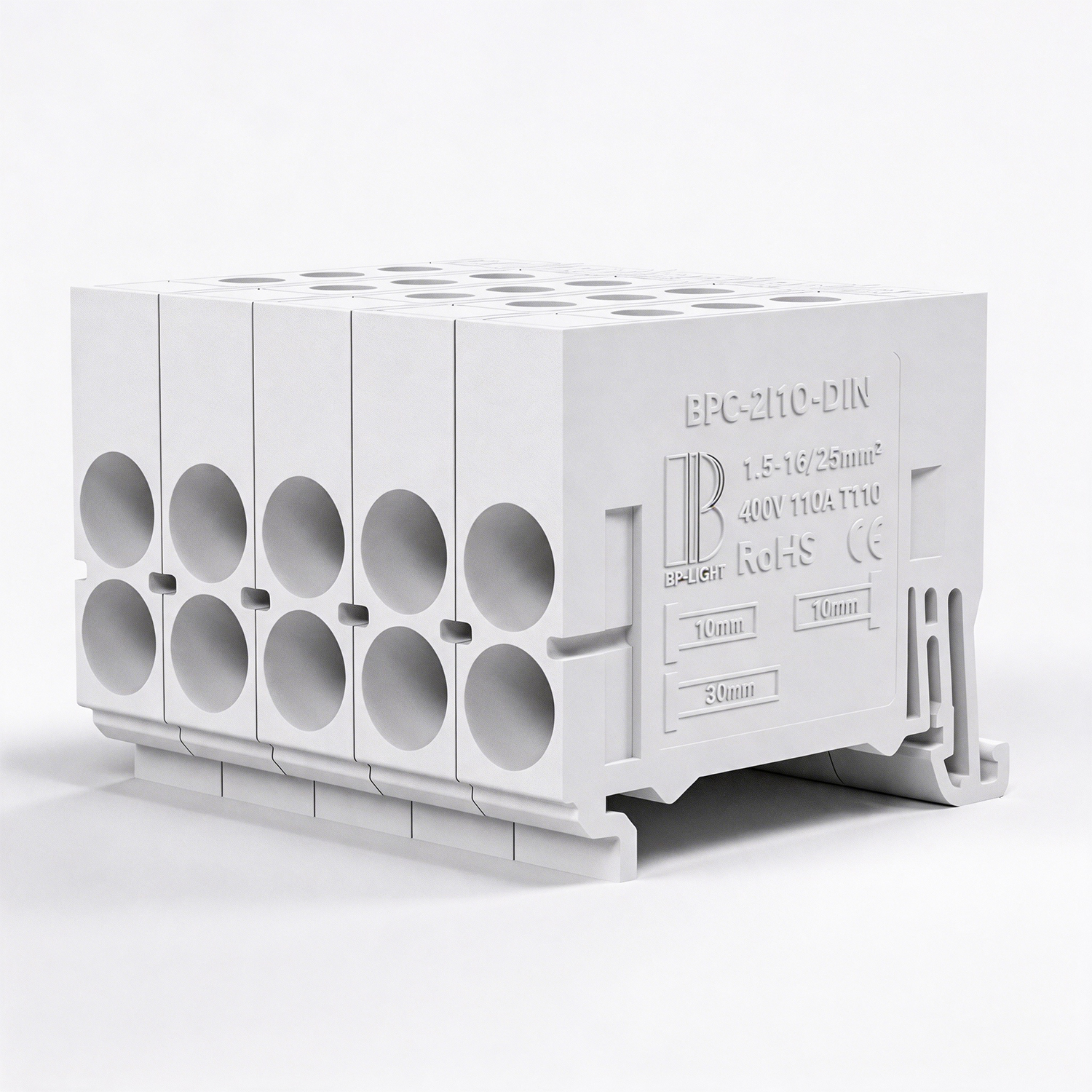

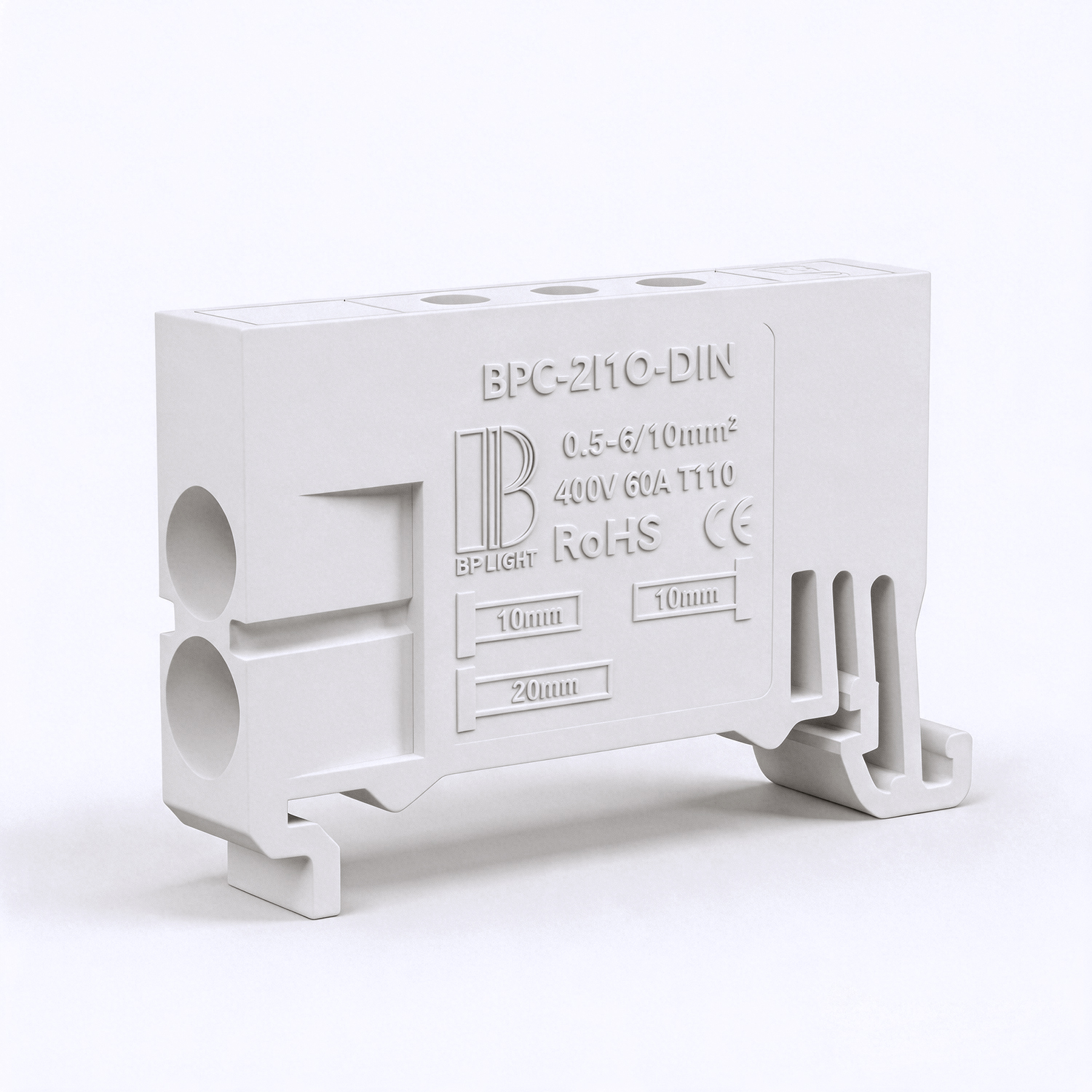

Patented brass terminal blocks designed for public lighting projects, providing effective electrical protection inside enclosures. With individual conductor housing for convenient testing and rewiring, the product boasts wide cable compatibility, extreme temperature and corrosion resistance, fully compliant with European safety norms. Complete product range ensures quick installation and simple maintenance for all outdoor lighting wiring scenarios.
- Compact size: only 44.6*9*27.6mm.
- Corrosion-resistant material for long service life.
- Wide compatibility, fits solid conductors of0.5–10mm²
KEY FEATURES
✓Fast & Convenient Installation Design: Equipped with flared wire entry guides, locking tabs and Allen-type captive screws for time-saving, efficient assembly. It supports mounting on 35 mm DIN rails.
✓Ample Electrical Load Specifications: Rated voltage 400 V, maximum current 110 A, insulation withstand voltage 6 kV, meeting high-power working conditions of public lighting.
✓User-friendly Low-Maintenance Structure: Single conductors can be disconnected separately for inspection. Snap-on wire markers are available as an option to simplify later circuit modification.
APPLICATIONS
✓Public LED street light projects
✓Road & tunnel lighting systems
✓Park & municipal landscape lighting
✓Traffic signal equipment
✓Small outdoor control enclosures
✓New energy auxiliary lighting systems
✓
Industrial low-voltage control cabinets
TECHNICAL SPECIFICATIONS
