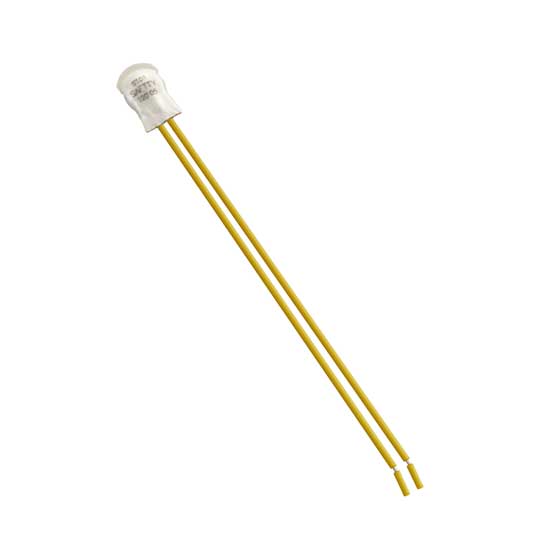

Displayed is a thermal protector with a tolerance of 5K. This device operates on a voltage of 500V AC or 60V DC. With a wide nominal operating temperature, this thermal protector is an ideal choice for protecting electronic motors from overheating.

• Similar as S01 Series of THERMIK.
• Nominal operating temperature: 60-180℃.
• Tolerance: (+/-)5K.
• Reset temperature: generally two-thirds of the operating temperature +/- 15K max.
• Operating voltage: 500V AC and 60V DC.
• Working current: 250V AC/5A.
• Shock resistance: 10-60Hz and 100m/s2
• Case pressure stability: 450N (45kg).
• Insulation voltage: 2.5KV.
• Sectional area of lead wire: 0.3mm2 AWG22.
