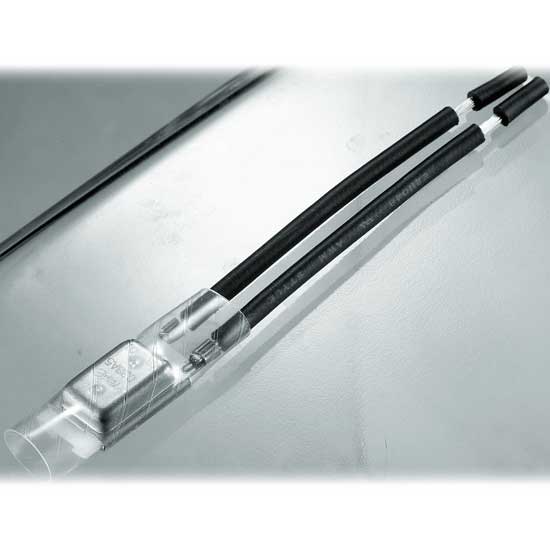

This is a thermal protector that can be used in HID ballasts, transformers, fractional power motors, AC brushless motors and pumps, DC motors and heating appliances. It is designed in a miniature size and has repeatable temperature performance over 10k life. This piece is suitable for most impregnation processes.

• 17AME CG series.
• Application Field: the similar type as 17AM.
• Positively make and break with snap-action discs.
• Repeatable temperature performance over 10k life.
• Various resistances of bimetal.
• Available with a gasket case.
• Substitute 7AM 17AM series
• Rated current: 20A/24V DC, 22A/120V AC and 10A/250V AC.
• Maximum contact rating: 10,000 cycles.
• Opening temperature: 50-180℃.
• Tolerance: ±5, ±3, and ±1℃.
• Resistance less than 50mΩ.
