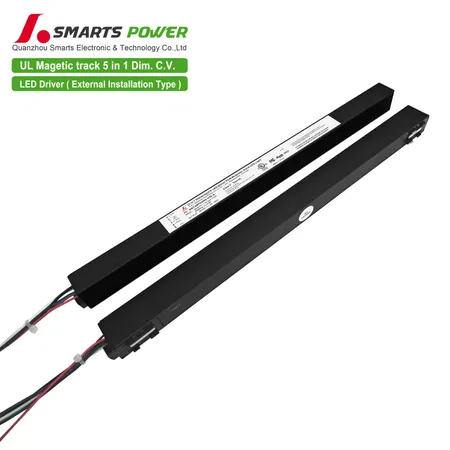

Triac & 0-10V Dim. Constant Voltage 24V LED driver 96W Suitable for Magnetic Track Installing

Range:

120-277VAC

Working Mode:

Constant Voltage

Dimming Function:

Phase dimming: work with Forward phase, MLV and Reverse phase, ELV, TRIAC dimmers. 0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1

Dimming Mode:

PWM mode or Voltage reduce (VR) mode

Dimming Range:

PWM:0-100%;Voltage reduce (VR) mode: 24V(14-24V); 48V(28-48V)

品牌:

SMARTS

型号编号:

SMT-EMT24096-VTD-A

描述

联络供应商

Model		SMT-EMT24096-VTD-A	SMT-EMT48096-VTD-A
Certificate		UL/ SELV / FCC / RoHS / REACH
Output	DC Voltage	24V	48V
	Voltage Tolerance	±1.5%	±1%
	Voltage Regulation	≤0.5%
	Rated current	4A	2A
	Rated power	96W
	Load Regulation	±1%
Input	Voltage Range	110-277VAC
	Frequency Range	47 - 63Hz
	Power Factor (Typ.) @ full load	0.99@120VAC 0.95@277VAC
	THD(Typ. ) @ full load	<20%@120VAC &277VAC
	Efficiency(Typ.) @ full load	≥88.5%@120VAC ≥91%@277VAC	≥88.5%@120VAC ≥91%@277VAC
	AC Current (Max.)	1.2A
	Inrush Current (Typ.)	17A,810us@50%Ipeak110VAC;38A,148us@50%Ipeak277VAC
	Leakage current	<0.5mA
Protection	Short Circuit	Hiccup mode, recovers automatically after fault condition is removed
	Over Load	≤120% Constant current mode, recovers automatically after fault condition is removed
	Over temperature	100℃±10℃ shut down o/p voltage, automatically recover after cooling
Environment	Working TEMP.	-40~+60℃ (see below derating curve)
	Working Humidity	20 - 90%RH non-condensing
	Storage TEM.,Humidity	-40 - +80℃,10 - 95% RH non-condensing
	TEMP.coefficient	±0.03%/℃(0 - 50℃)
Safety & EMC	Safety standards	UL8750 (US)
	Withstand voltage	I/P-0/P: 1.8KVAC I/P-F/G: 1.8KVAC O/P-F/G: 0.5KVAC (US)
	Isolation resistance	I/P-O/P: 100MΩ/ 500VDC/ 25℃/ 70% RH
	EMC Emission	FCC Part 15 Subpart B (US)
	Surge Immunity Test	Different mode: 2KV, Common mode:4KV
Others	Net Weight	0.4KG
	Dimension	355.52024.2mm (LWH)
	Packing	50pcs /CTN
Notes	1. All parameters NOT specially mentioned are measured at 120VAC input,rated load and 25℃ of ambient temperature.
	2. Under low input voltage, derating output is required to ensure a long life.
