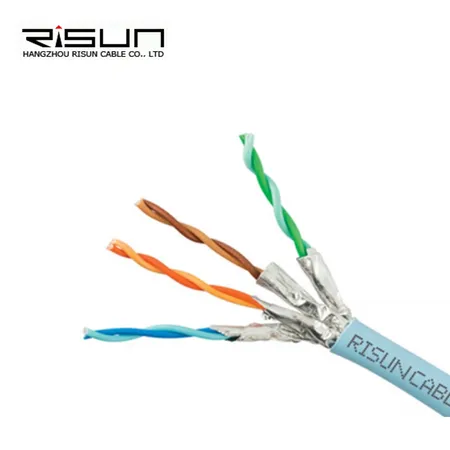

U/FTP CAT6A 23AWG LSZH
美元 $105.00 - 美元 $112.00
生产所需时间:
20 日
运送方式:
by sea
描述
联络供应商
描述
DESCRIPTION
Manufactured according to ISO / IEC 11801-2, TIA-568-C.2, EN-50173.
TECHNICAL SPECIFICATIONS
| Conductor | Solid bare copper : 0,56±0.01 mm | |
| Insulation | Foam PE : 1.35±0.05 mm | |
| Identification of pairs | ||
| 1 pair | Blue - White / Blue | |
| 2 pair | Orange - White / Orange | |
| 3 pair | Green - White / Green | |
| 4 pair | Brown - White / Brown | |
| Shield | Aluminum foil each pair | |
| Drain | Tinned copper : 0,40±0.01 mm | |
| Ripcord | Yes | |
| Sheath | LSZH | |
| Color | Ice blue (other colors are available upon request) | |
| Bending radius | ≥ 8 x Diameter (mm) Installation | |
| Storage temperature | -15℃—+70℃ | |
ELECTRICAL CHARACTERISTICS
nº Pairs.x Ф 4x2x23AWG
Conductor Resistance max.75 Ω/km
Resistance Unbalance max.4%
Velocity of Propagation 69%
Impendance 100±15 Ω
| Frequency (MHz) | Return Loss ≧dB | ATT ≦dB/100m | Next ≧dB | DELAY ≦ns100m | PS NEXT ≧dB | EL FEXT ≦dB/100m | PS EL FEXT ≧dB/100m |
| 1 | 20.0 | 2.1 | 74.3 | 570.0 | 72.3 | 68.0 | 65.0 |
| 4 | 23.0 | 3.8 | 65.3 | 552.0 | 63.3 | 56.0 | 53.0 |
| 8 | 24.5 | 5.3 | 60.8 | 546.7 | 58.8 | 49.9 | 46.9 |
| 10 | 25.0 | 5.9 | 59.3 | 545.4 | 57.3 | 48.0 | 45.0 |
| 16 | 25.0 | 7.5 | 56.2 | 543.0 | 54.2 | 43.9 | 40.9 |
| 20 | 25.0 | 8.4 | 54.8 | 542.1 | 52.8 | 42.0 | 39.0 |
| 25 | 24.3 | 9.4 | 53.3 | 541.2 | 51.3 | 40.0 | 37.0 |
| 31.25 | 23.6 | 10.5 | 51.9 | 540.4 | 49.9 | 38.1 | 35.1 |
| 62.5 | 21.5 | 15.0 | 47.4 | 538.6 | 45.4 | 32.1 | 29.1 |
| 100 | 20.1 | 19.1 | 44.3 | 537.6 | 42.3 | 28.0 | 25.0 |
| 200 | 18.0 | 27.6 | 39.8 | 536.5 | 37.8 | 22.0 | 19.0 |
| 250 | 17.3 | 31.1 | 38.3 | 536.3 | 36.3 | 20.0 | 17.0 |
| 300 | 16.8 | 34.3 | 37.1 | 536.1 | 35.1 | 18.5 | 15.5 |
| 500 | 15.2 | 45.3 | 33.8 | 535.6 | 31.8 | 14.0 | 11.0 |
APPLIANCE
Cable for data transmission in structured cabling networks (LAN), horizontal and secondary facilities.
PACKING
305 m / wooden drum
500 m / wooden drum
