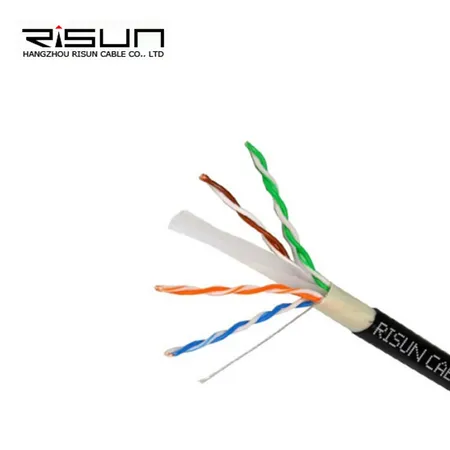

DESCRIPTION
Manufactured according to ISO / IEC 11801-2, TIA-568-C.2, EN-50173.
TECHNICAL SPECIFICATIONS
| Conductor | Solid bare copper : 0,56±0.01 mm | |
| Insulation | HDPE : 1.0±0.05 mm | |
| Identification of pairs | ||
| 1 pair | Blue - White / Blue | |
| 2 pair | Orange - White / Orange | |
| 3 pair | Green - White / Green | |
| 4 pair | Brown - White / Brown | |
| Filler | Yes | |
| Ripcord | Yes | |
| Inner sheath | PVC | |
| Outer sheath | PE | |
| Color | Gray + black (other colors are available upon request) | |
| Bending radius | ≥ 8 x Diameter (mm) Installation | |
| Storage temperature | -15℃—+70℃ | |
ELECTRICAL CHARACTERISTICS
nº Pairs.x Ф 4x2x23AWG
Conductor Resistance max.75 Ω/km
Resistance Unbalance max.5%
Cap. between cond. pair 56nF / 100m
Velocity of Propagation 69%
Impendence 100±15 Ω
| Frequency (MHz) | Return Loss ≧dB | ATT ≦dB/100m | Next ≧dB | DELAY ≦ns100m | PS NEXT ≧dB | EL FEXT ≦dB/100m | PS EL FEXT ≧dB/100m |
| 1 | 20.0 | 2.03 | 74.3 | 570.0 | 72.3 | 67.8 | 64.8 |
| 4 | 23.0 | 3.78 | 65.3 | 552.0 | 63.3 | 55.8 | 52.8 |
| 8 | 24.5 | 5.32 | 60.8 | 546.73 | 58.8 | 49.7 | 46.7 |
| 10 | 25.0 | 5.95 | 59.3 | 545.38 | 57.3 | 47.8 | 44.8 |
| 16 | 25.0 | 7.55 | 56.2 | 543.0 | 54.2 | 43.7 | 40.7 |
| 20 | 25.0 | 8.47 | 54.8 | 542.05 | 52.8 | 41.8 | 38.8 |
| 25 | 24.3 | 9.51 | 53.3 | 541.20 | 41.3 | 39.8 | 36.8 |
| 31.25 | 23.6 | 10.67 | 51.9 | 540.44 | 49.9 | 37.9 | 34.9 |
| 62.5 | 21.5 | 15.38 | 47.7 | 538.55 | 45.4 | 31.9 | 28.9 |
| 100 | 20.1 | 19.80 | 44.3 | 537.60 | 42.3 | 27.8 | 24.8 |
| 200 | 18.0 | 28.98 | 39.8 | 536.54 | 37.8 | 21.8 | 18.8 |
| 250 | 17.3 | 32.85 | 38.3 | 536.27 | 36.3 | 19.8 | 16.8 |
APPLIANCE
Cable for data transmission in structured cabling networks (LAN), horizontal and secondary facilities.
PACKING
305 m / wooden drum
500 m / wooden drum
