UGR Transparent Light Diffusing Polycarbonate Film for LED/LCD | 灯饰

江西盛汇光学科技协同创新有限公司

UGR Transparent Light Diffusing Polycarbonate Film for LED/LCD

生产所需时间:

7 日

重量:

0.836 公斤

产品型号:

UGR3690-500

品牌名称:

Moon

颜色:

Transparent

港口:

Shanghai

付款方式:

T/T, PayPal, Western Union, etc

保养期:

3 年

主体物料:

聚碳酸酯 (PC)

主体颜色:

Transparent

尺寸 (长 x 寛 x 高):

1,180 x 1,180 x 0.5 毫米

样式:

Flat Shapes

可定制:

是

描述

联络供应商

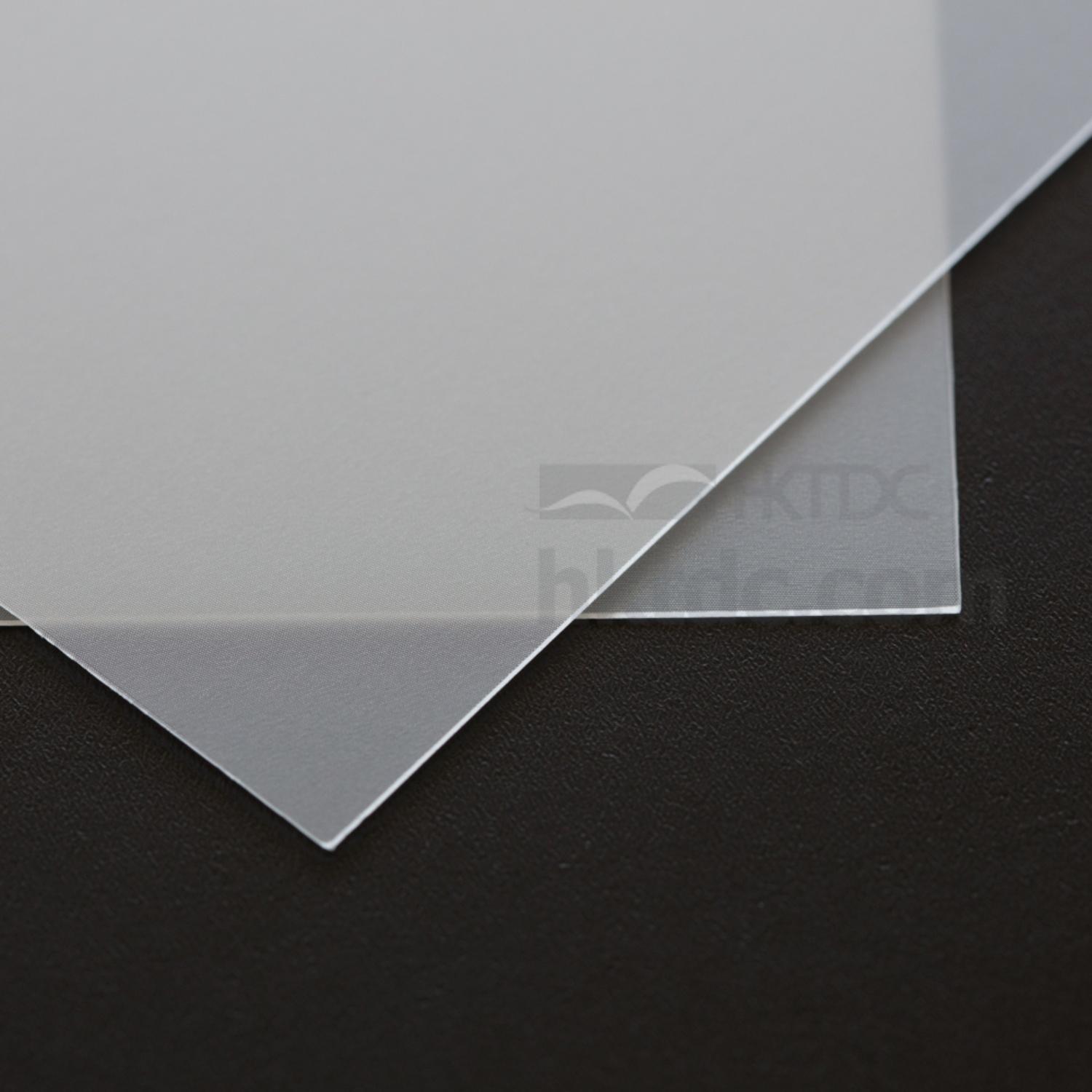

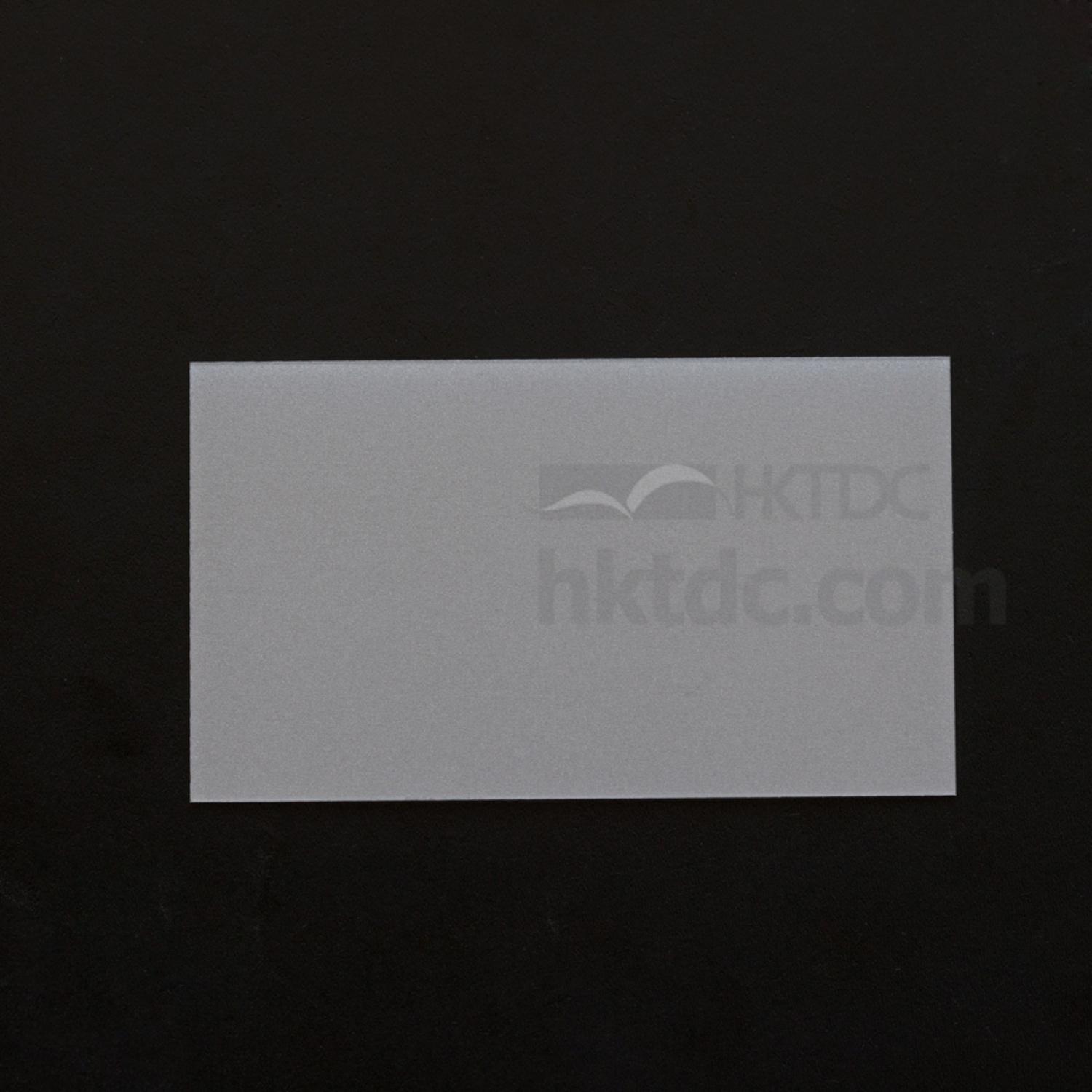

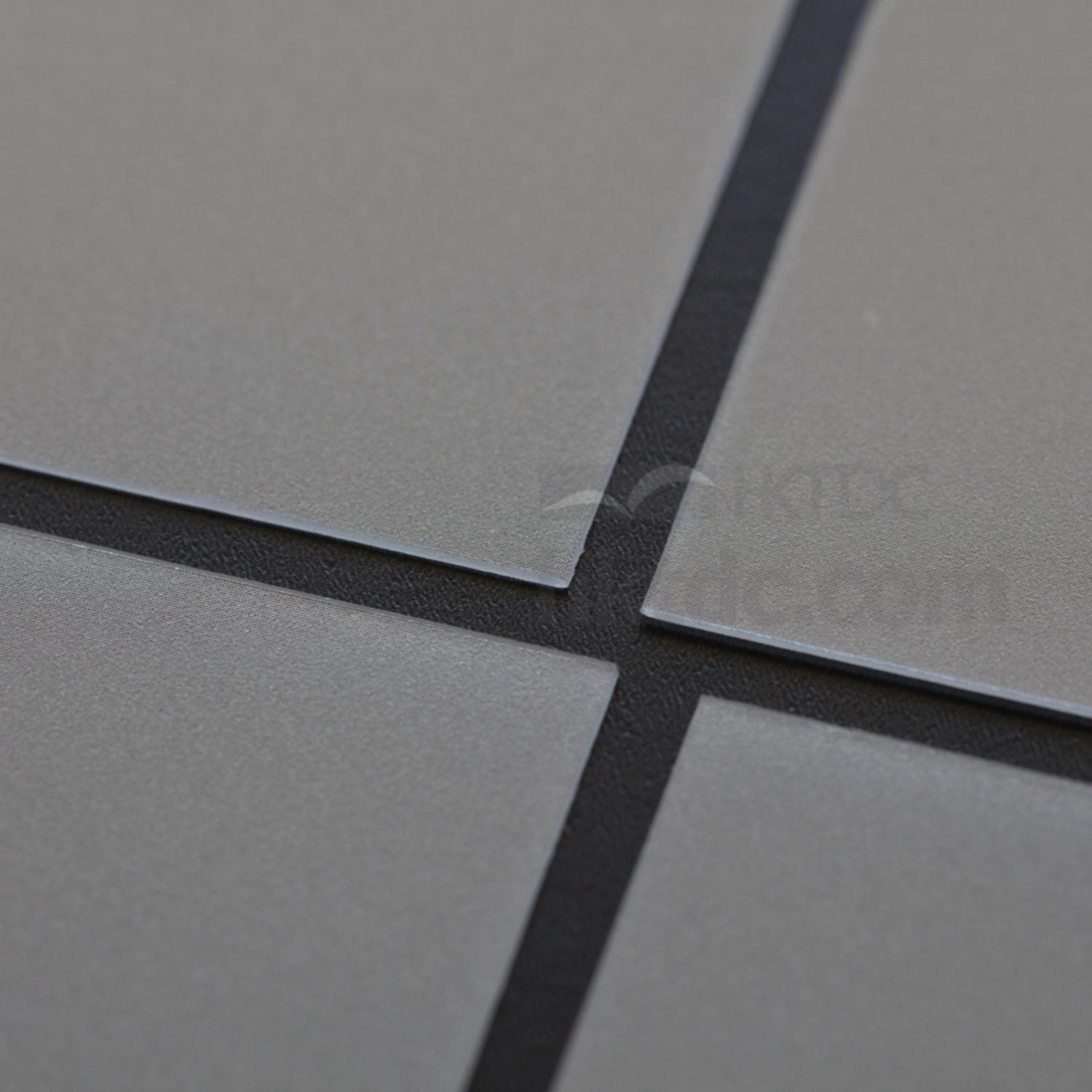

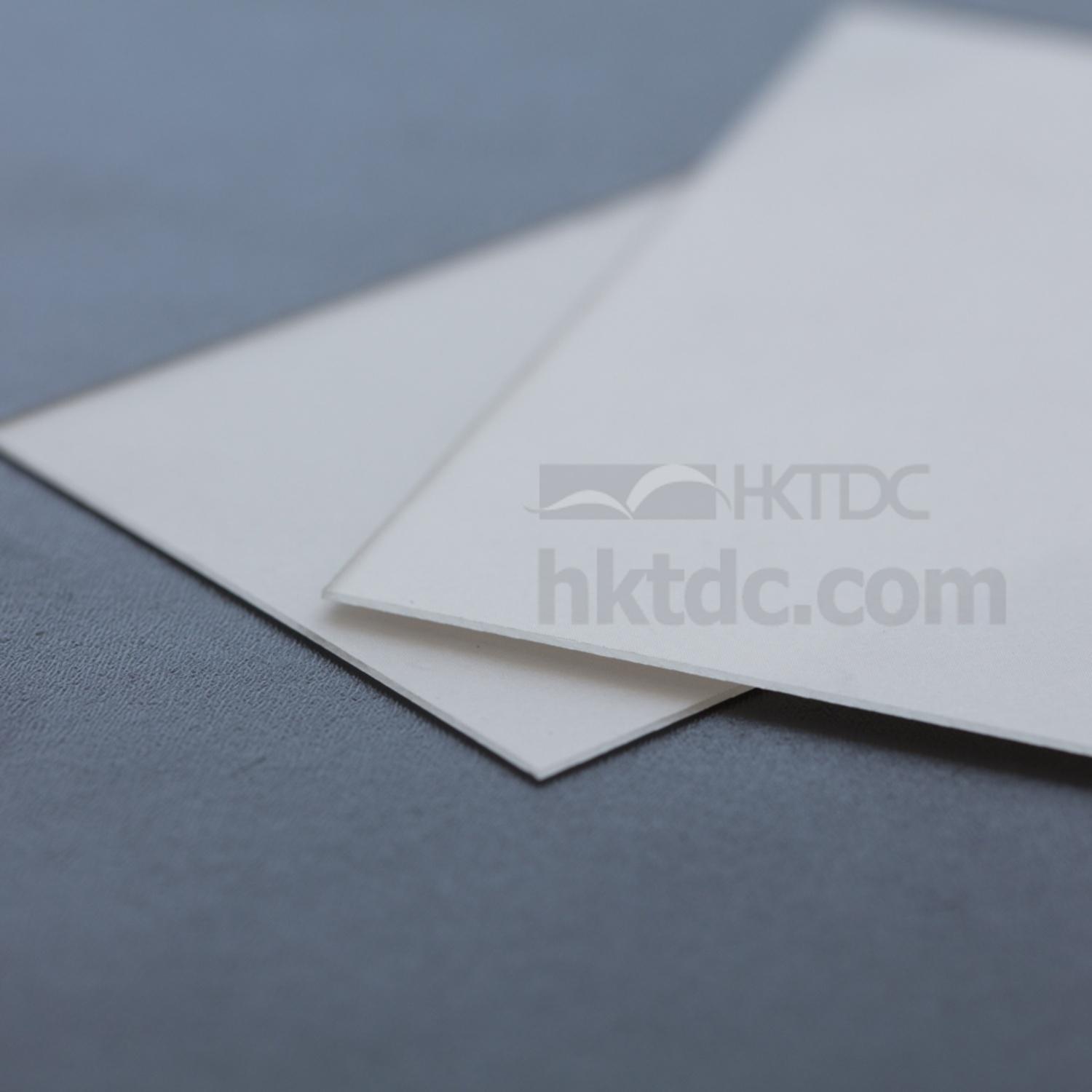

UGR Transparent Light Diffusing Polycarbonate Film for LED/LCD

Model No.: UGR3690-500
Standard Size: 1180*1180*0.5mm (customized size accepted)
Texture: Microstructure
Light transparency: 95±2%； Haze: 70 ±2%
MOQ: It depends, it is open to discussion for our regular size based on its stock and production schedule.
Size: Customized accepted

Product Properties:

UGR<19, improve the visual comfort
High fire resistance grade: UL94-V0 / TP(a), ensure the safety of luminous using
High light transparency and haze degree: minimize light loss to maximize the luminous flux and luminous efficiency, and in parallel protect the led bead from being exposed .
Good stability, low water absorption ratio and shrinkage, high cutting accuracy and stable dimension, superior low and high temperature resistance(could be used for a long time between -40°C to 120°C), stable mechanical properties in a wide range of temperatures.
Enhanced anti-yellowing performance to maintain light transmission : normally around 3 years no yellowing used indoor
Excellent optical property, diffuser the light and make the light brightness evenly
Outstanding mechanical properties, good impact resistance, tensile strength, bending strength and compressive strength:
High toughness and high strength (640J per square meter), 200 times stronger than regular glass, 36 times stronger than PMMA (17.4J per square meter) and 30 times higher than PS (21J per square meter).
Expands design freedom, it can be bent to cater to the shapes of lighting instead of making injection mold, save the mould cost
