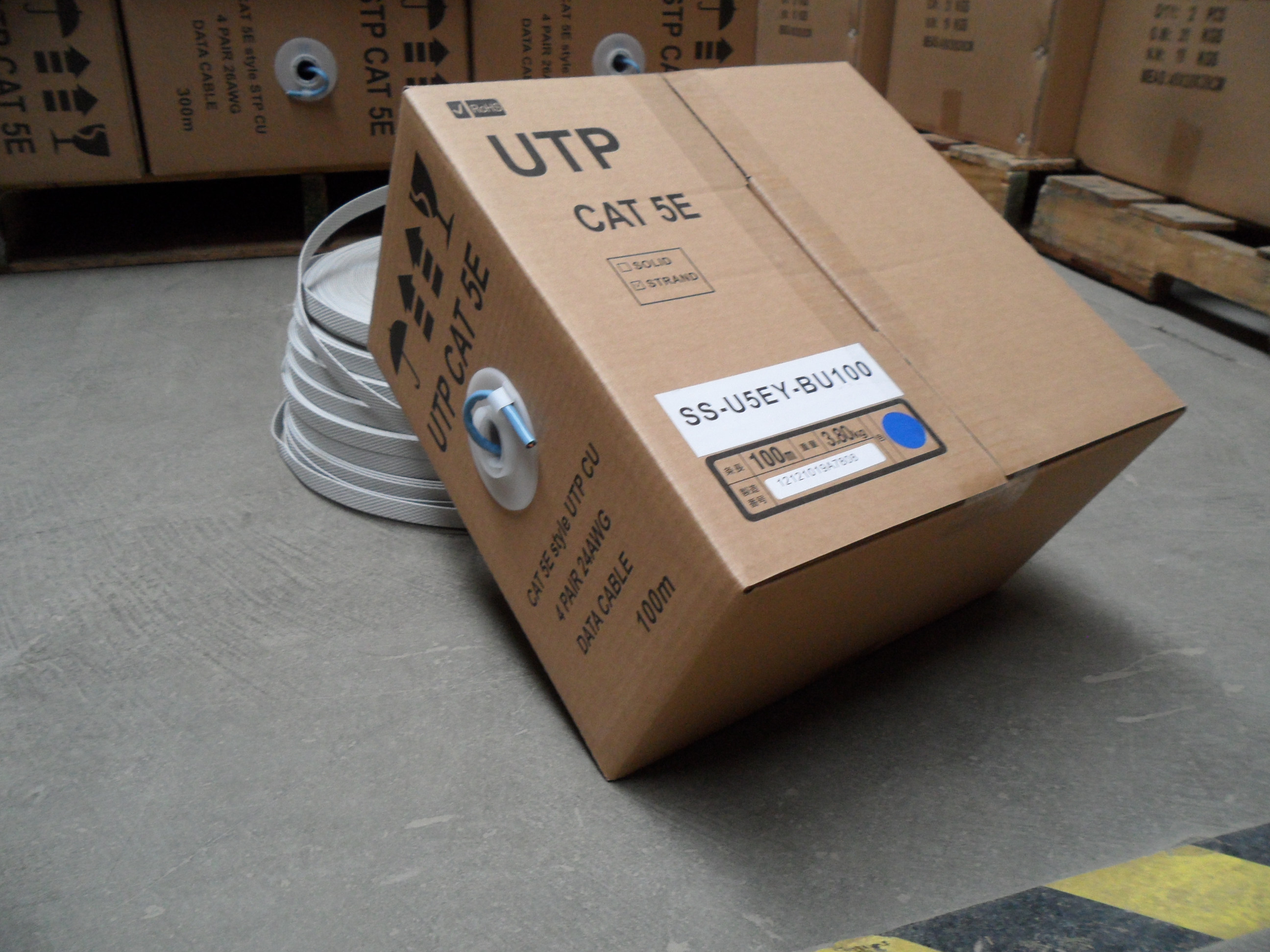

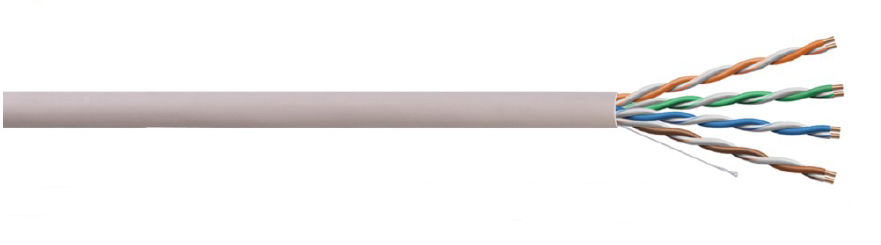

- UTP Cat5E Unshielded 4 Twisted Pairs Lan Cable
- Construction
- Conductor: solid bare copper 24AWG solid 0.51mm-0.47mm stranded 7/0.20-7/0.16mm
- Insulation: HDPE -Number of insulated conductors: 8, twisted in 4 pairs
- Color code: White-Blue/Blue, White-Orange/Orange White-Green/Green, White-Brown/Brown
- Shield: none
- Drain wire: none
- Outer sheath: PVC, CMX, CM, CMR, LSZH, LDPE, OD: 5.1±0.2mm
- Application -meet or exceed requirement of ANSI/TIA-568-C.2 Cat5e and ISO 11801 2nd Edition Class D channel standards
- Meet or exceed requirement of ANSI/TIA-568-C.2 and IEC61156-5 Cat5e component standards
- Third party tested to Cat5e channel compliance
- Meet requirements of IEEE 802.3af and IEEE 802.3at for PoE application
- Electrical Characteristics
- Impedance: 1-100MHz 100±15(Ohms)
- Rated Temperature: 75 degree
- DC Resistance Unbalance(%): Max 2.5
- DC Resistance 20 degree: 9.5(Ohms/100m)
- Pair-to-Ground Capacitance Unbalance: 330(pF/100M)
- Insulation Resistance: 5000MΩ x Km
- Dielectric strength: DC 2500V 2S
