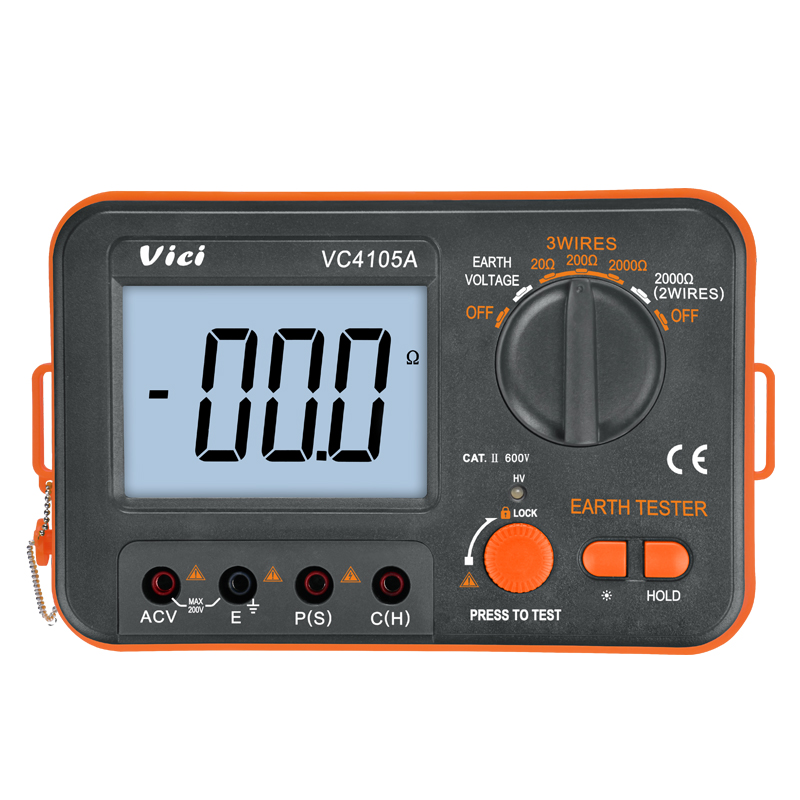

VC4105A Earth Tester with 3 wires 2 wires meaurements method
应用:
Power equipment, construction, railway grounding installation, maintenance, and project acceptance.
品牌:
Vici
型号编号:
VC4105A
尺寸:
176*116*63mm
重量:
550g
Earth resistance:
0.01Ω ~ 2000Ω
Earth voltage:
0.1V ~ 200V
描述
联络供应商
描述

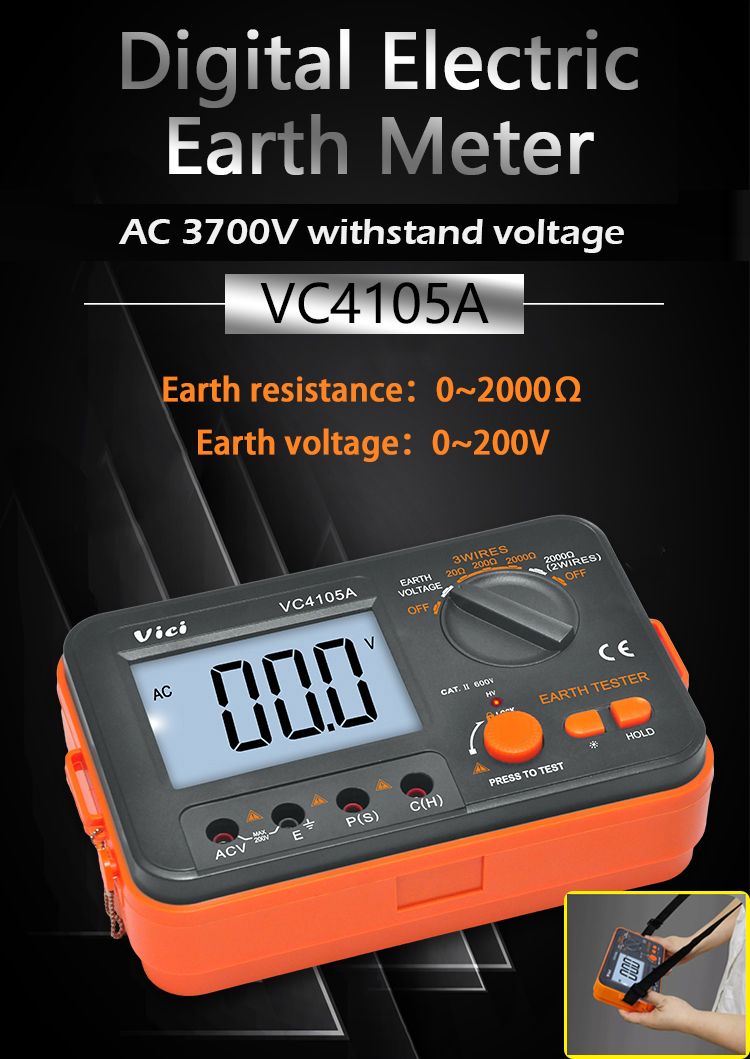

VC4105A Earth Resistance Meter
Features:
1.Earth resistance range: 0-1999Ω.
2.Earth voltage range: 0-199.9V.
3. 3 ½ digit LCD display with 32mm high figure
4. Withstand voltage: 3700V AC between the circuit and body cover (for 1 minute).
5. Overload protection: At earth voltage range, Max voltage can be 450V AC (for 1 minute).
At earth resistance range, Max voltage can be 280V AC for (10 seconds).
Technical Data:
Basic function | Range | Accuracy | Resolution | Test method |
Earth resistance | 20Ω | ±(2%rdg+0.1Ω) | 0.01Ω | 3 wires test |
200Ω | ±(2%rdg+3dgt) | 0.1Ω | ||
2000Ω | 1Ω | |||
2000Ω | ±(2%rdg+5dgt) | 1Ω | 2 wires test | |
Earth voltage | 200V | ±(1%rdg+5dgt) | 0.1V | - |
Special Function:
Model | VC4105A |
Working temperature | -10℃—50℃ relative humidity < 80% |
Storage temperature | －20℃—60℃ relative humidity < 75% |
Best measuring temperature | 23℃±5℃ relative humidity < 75% |
Overload protection | √ |
Operating frequency | About 820Hz |
Operating Current | About 3mA |
Operation method | Manual range |
Max. display | 1999 |
LCD size | 75*52mm |
Power source | 1.5V AA battery *6pcs |
General Characteristic:
Orange and Grey | |
Meter weight | 550g (including the battery) |
Standard packing | White box and bag. |
176×116×63mm | |
Standard accessory | 1. Test Leads x 1 set Including: 15m red wire x1, 10m yellow wire x1, 5m green wire x1 2. Auxiliary earth spikes x 2 3. Instruction Manual x 1 4. Battery R6P (SUM-3) x 6 5. Carrying bag x 1 |
Standard QTY per carton | 6pcs |
Carton size | 48.5*33*33CM |
G.W per carton | 15KG |
