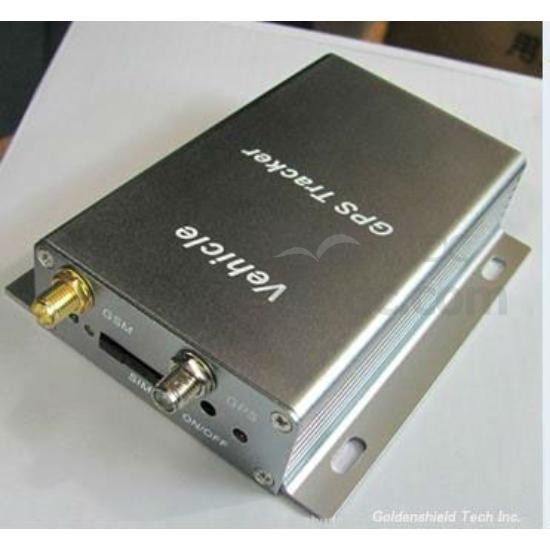

- VT310X is a professional level GPS vehicle tracker focus on positioning and vehicle security. VT310X can support detecting engine off/on, controlling door/windows/engine, can equip fuel consumption detection, temperature detection, geo-fencing, SOS alert, over speed alert, with build-in motion sensor for power saving, with build-in memory to store GPS position info when no GPS signal and resend automatically when GPS signal recover. It has abundant ports for additional applications and tracking solutions especially suitable for fleet management
- Tracking via SMS or GPRS (TCP/UDP)
- Current location
- Get actual address name via SMS or website
- Get position GoogleMap link via SMS
- Tracking by distance or time interval
- Data logger function with 4Mb memory.
- Built-in motion sensor for power saving
- SOS panic button
- Geo-fencing control
- Internal backup battery
- Over-Speed alert
- Engine cut-off to stop the car in safe condition
- Monitoring voice (optional)
- Alert when VT310X enters/exits GPS blind area
- Alert when VT310X is power failure
- I/O: 5 digital inputs, 2 analog inputs, and 5 outputs
- Mileage report
- Monitor fuel consumption for Fleet management (optional)
- Monitor temperature (optional)
- Application:
- Suit for Fleet management
- Parameters
- Power Supply
- + 9V-+ 35V/1.5A
- Backup Battery
- 850mAh
- Dimension
- 104mm x 62mm x 24mm
- Installation Dimension
- 104mm x 83mm x 24mm
- Weight
- 150g
- Operating temperature
- -20° to 65° C
- Humidity
- 5% to 95% Non-condensing
- Frequency
- GSM 900/1800/1900Mhz or GSM 850/900/1800/1900Mhz
- GPS Module
- latest GPS SIRF-Star III chipset
- GPS Sensitivity
- -158Db
- GPS Frequency
- L1, 1575.42 MHz
- C/A Code
- 1.023 MHz chip rate
- Channels
- 20 channel all-in-view tracking
- Position Accuracy
- 10 meters, 2D RMS
- Velocity Accuracy
- 0.1 m/s
- Time Accuracy
- 1 us synchronized to GPS time
- Default datum
- WGS-84
- Reacquisition
- 0.1 sec., average
- Hot start
- 1 sec., average
- Warm start
- 38 sec., average
- Cold start
- 42 sec., average
- Altitude Limit
- 18,000 meters (60,000 feet) max
- Velocity Limit
- 515 meters/second (1000 knots) max
- LED
- 2 LED lights to show GPS/GSM working status
- Flash Memory
- 4MB
- Interface
- 5 digital inputs, 3 negative and 2 positive triggering; 2 analog inputs; 5 outputs
