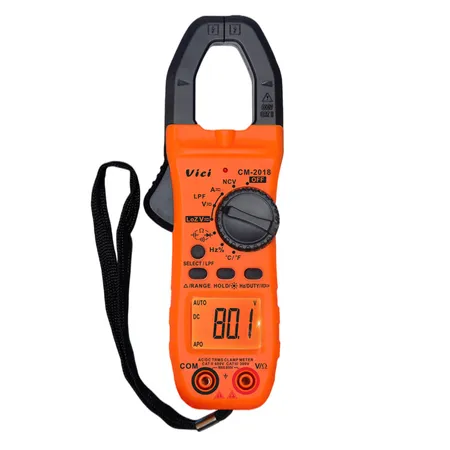

Vici CM-2018 Loz LPF AC DC 800A Clamp Meter with Orange display alarm and Live test function

型号编号:

CM-2018

尺寸:

185*65*32mm

重量:

200g

Safety level:

CAT. III 600V

Max display:

6000 digits

Voltage:

600V

Current:

800A

Capacitance:

60mF

Resistance:

60MΩ

Frequency:

10MHz

Temperature:

1000℃， 1832℉

描述

联络供应商

CM-2018 AC/DC 3 5/6 Digital Clamp Multimeter

Features:

1. Clamp opens 28mm

2. AC DC T-RMS, NCV, LPF（VFC）, LoZ V function

3. Clamp light, Backlight, Flash light

4. Max. 6000 digits large LCD display

5. CE standard design, improves the safety of the test

6. Full function protection, strong anti-interferential performance

7. Duty cycle test, REL test, data hold, Auto power off function

Technical Data:

Basic function	Range	Accuracy
DCV	600mV/6V/60V/600V	±(0.5%+5)
DCV	LoZ 0V~600V	±(2.0%+10)
ACV	6V/60V/600V	±(0.8%+5)
	LPF 0V ~ 600V	±(4.0%+5)
	LoZ 0V ~ 600V	±(2.0%+10)
DCA	60A/600A/800A	±(1.5%+5)
ACA	60A/600A/800A	±(1.5%+5)
Resistance	600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ	±(0.8%+1)
Capacitance	6nF/60nF/600nF/6uF/60uF/600uF/6MF/60MF	±(2.5%+5)
Frequency	10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz	±(0.5%+4)
Temperature	(-40 to 1000 )℃, (-40 to 1832 ) ℉	±(1.0%+5)

Special Function:

Model	CM-2018
NCV test	√ (clamp & red test lead detecting)
True RMS test	√
LPF (VFC) function	√
LoZ function	√
Low battery indicator	Approx. less than 2.6 V
Data hold function	√
Auto power off	About 15 minutes
Diode test	√
Continuity test	Less than 50Ω
Duty-cycle test	√
REL test	√
Clamp light function	√
Backlight display	√
Orange backlight display for high volt	√
Input impedance	10MΩ
Sampling rate	3 times/s
AC frequency response	40-2kHz
Operation method	Auto or manual range
Max display	6000
Clamp opens	28mm
Battery	3V (2*AAA battery)
Power consumption	Quiescent current approx. 2mA

General Characteristic：

Meter color	Orange and Black
Meter weight	About 200g (including battery)
Meter size	1856532mm
Standard accessory	Test leads, battery, manual, temperature probe, carrying bag
Standard packing	Gift box
Carton size	41.52846.5CM
Standard QTY per carton	40pcs
G.W per carton	15kg

Note: for the NCV detecting function, this clamp meter is not only can detect the NCV by clamp, but also can be directly touched by the red stylus probe to detect cable that could not be reached by the clamp.
