Vicimeter VC60B+ Insulation Tester for Motor, Cable, Electromechanical equipments | 工程和建筑机械

SHENZHEN VICIMETER TECHNOLOGY CO.,LTD.

Vicimeter VC60B+ Insulation Tester for Motor, Cable, Electromechanical equipments

美元 $26.35 - 美元 $50.70

应用:

Motor, cable, electromechanical equipment, telecommunications equipment, power facilities and other insulation resistance detection needs

品牌:

Vici

型号编号:

VC60B+

尺寸:

176*116*63mm

重量:

580g

Resistance:

1Ω ~ 2000Ω

Insulation:

100kΩ ~ 2GΩ

Voltage:

DC 1000V, AC 750V

描述

联络供应商

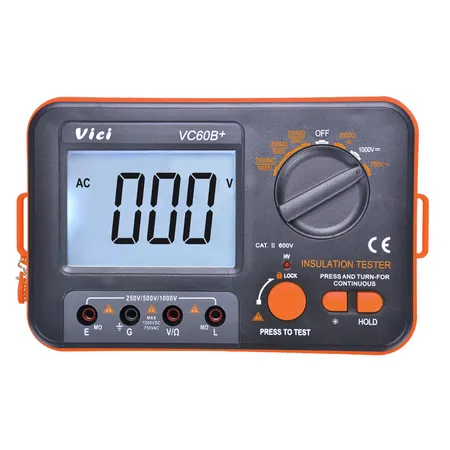

VC60B⁺ Insulation Tester

Features:

An accurate, reliable and easy-to-use insulation tester

Large LCD display, easy to read

Strong anti-magnetic and anti-jamming function

Full function protection, anti high voltage circuit design

Unit symbol display, easy to use

High voltage and short circuit input alarm

Technical Data:

Special Function:

Model	VC60B⁺
Continuity alarm	Less than 30Ω±10Ω
Low battery indication	Less than approx.7.5V
Data hold	√
LCD backlight	Approx.10Sec.
Function protection	√
Input impedance	1MΩ
Sampling rate	3 times/Sec.
AC frequency response	50-200Hz
Operation mode	Manual range
Max. display	1999
LCD size	75 x 52mm
Power source	1.5V AA battery x6pcs, or external DC 9V power source
Power consumption	Quiescent current approx.3mA

General Characteristic:

Color	Orange and Gray
Weight	580g (including battery)
Meter size	176 (L) x116 (W) x63 (D) mm
Standard accessory	Test lead, shoulder strap, battery, operation manual
Individual packing	Gift box
Master carton packing	20pcs
Master carton size	37.53643CM
Master carton weight	17.5KG
