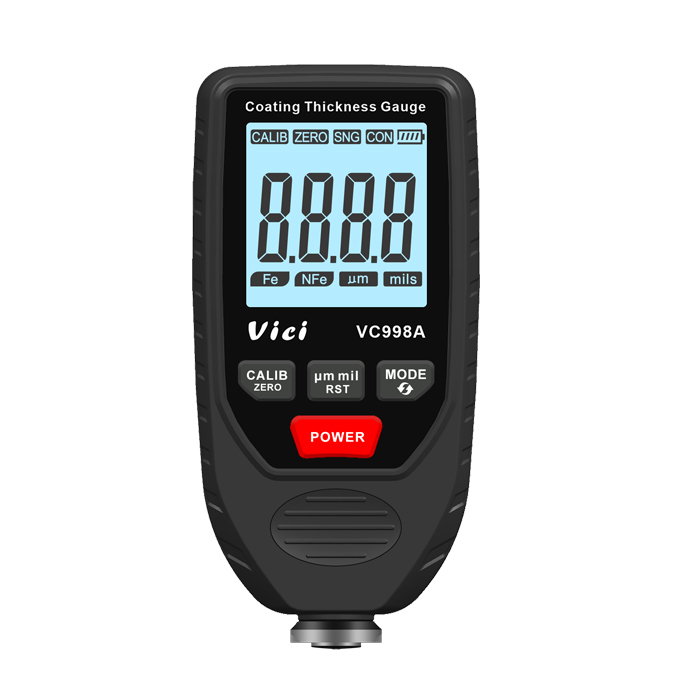

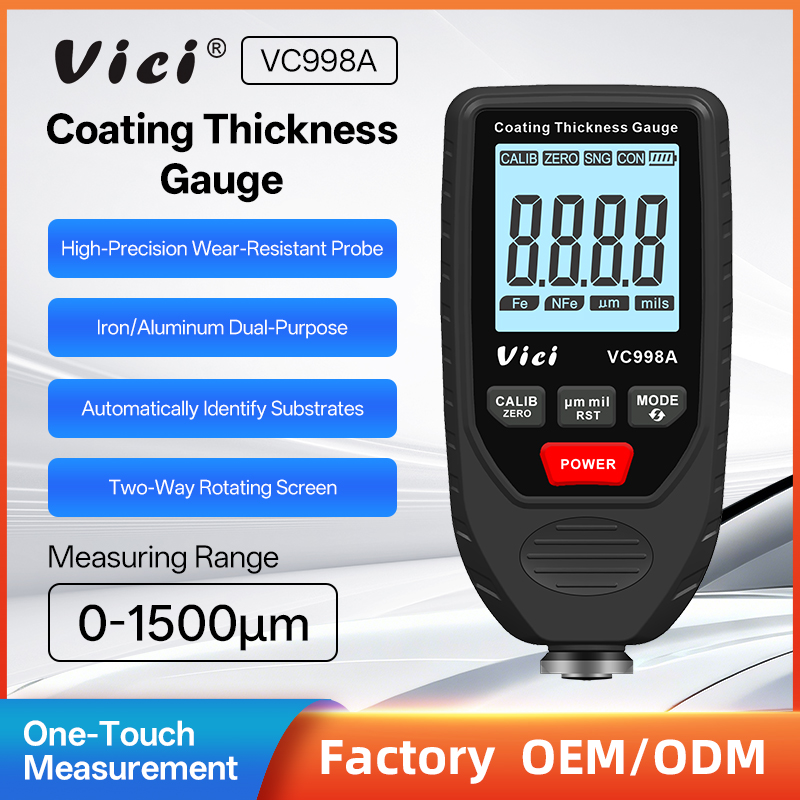

Vicimeter VC998A Coating Thickness Test Gauge

Type:

Fe, NF

Principle:

Electromagnetic induction, Eddy current effect

Range:

0-1500um

Accuracy:

±（3%+2um)

Resolution:

0.1um

Min. substrate thickness:

0.5mm

Unit:

um, mil

Power supply:

3V(2*1.5V AAA carbon battery)

Device size:

122*62*27mm

描述

联络供应商

Features:

2. Iron-based/aluminum-based automatic identification conversion.

3. High precision, high sensitivity non-destructive paint film probe.

4. Adapt to automotive, iron, steel, aluminum, copper and other varieties of paint film thickness detection.

Type	Fe probe (iron base)	NF probe (aluminum / copper and other non-magnetic substrates)
Principle	Electromagnetic induction	Eddy current effect
Measuring range	0~1500um	0~1500um
Accuracy	±(3%+2um)	±(3%+2um)
Resolution	0.1um/0.01mil	0.1um/0.01mil
Calibration	Zero calibration, multi-points calibration
Unit	Um, mil
Minimum convex radius of curvature	1.5mm
Minimum concave radius of curvature	25mm
Minimum measurement area diameter	6mm
Minimum substrate thickness	0.5mm	0.3mm
Power supply	2 x 7 (AAA) batteries
Operating environment	0~40°C (32~104°F), Humidity:20%~90%RH, No strong magnetic field
