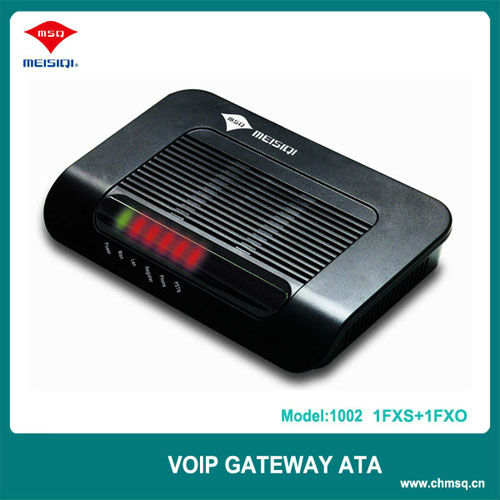

MSQ VoIP gateway series are feature-rich, cost-effective SIP gatway specially designed for ITSPs, small to medium businesses and residential application. It supports 5 user accounts, auto-provision as well as zero configuration and easy maintenance. It offers high quality audio, a broad range of voice codes and phone features to general level users.
- Two RJ45 ports with router built-in, one for Internet, one for PC.
- 2 FXS + 1FXO port.
Network protocol:
- SIP V1(RFC2543), V2(RFC3261).
- IP/TCP/UDP/RTP/RTCP.
- IP/ICMP/ARP/RARP/SNTP.
- TFTP client/DHCP client/PPPoE client.
- Telnet/HTTP server.
- DNS client.
- NAT.
SIP server:
- Registrar server: 5 SIP user accounts.
- Outbound proxy mode.
Code:
- G.711.
- G.723.1/iLBC.
- G.726.
- G.729A.
- G.729B adds VAD, CNG to G.729.
Configuration:
- Web browser.
- Console/telnet.
- IVR/keypad.
- Auto-provision.
IP assignment:
NAT traversal:
Dial method:
- Direct IP call without SIP proxy.
- Dial number via SIP server.
- Dial URL via SIP server.
DTMF function:
- In-band DTMF.
- Out-of-band DTMF.
- SIP info.
Voice quality:
- VAD.
- CNG.
- LEC.
- Packet loss compensation.
- Adaptive jitter buffer.
Firmware upgrade:
- TFTP.
- Console.
- HTTP.
- Auto-provision.
Security:
- HTTP 1.1 basic/digest authentication for web setup.
- MD5 for SIP authentication (RFC 2069/RFC 2617).
Interface:
- Power input: 100-240V AC, output power: DC-12V, 1A.
- WAN RJ45, 10/100M port.
- LAN/PC RJ45, 10/100M port.
Certificate:
