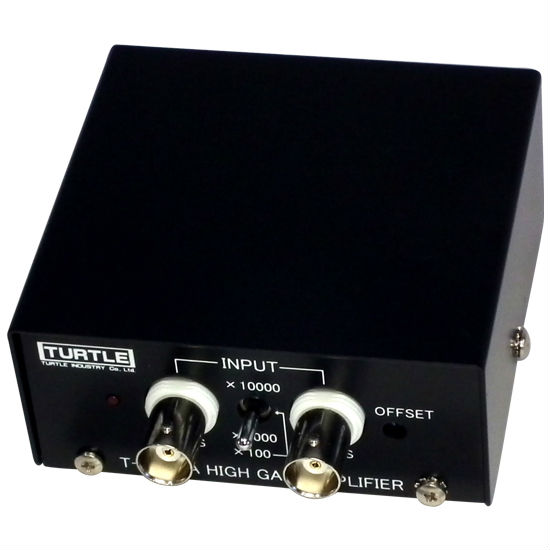

Voltage Amplifier

尺寸:

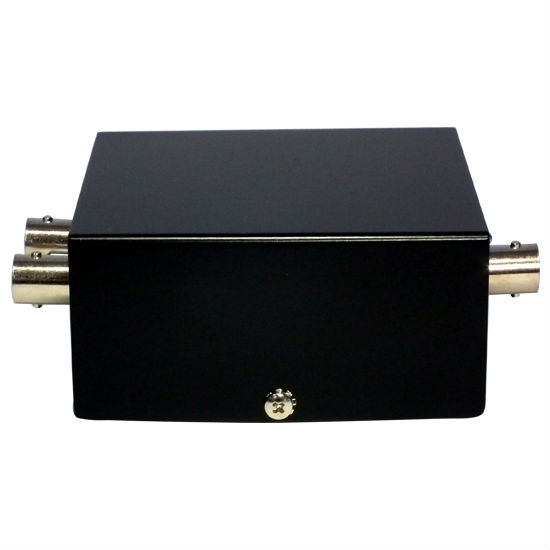

W80 x H35 x D75mm (protrusion not included).

港口:

Narita Airport

付款方式:

remit by cable in advance

最低订购数量:

5 piece(s)

描述

联络供应商

Weight: approx. 200g.
Number of input channels: 1.

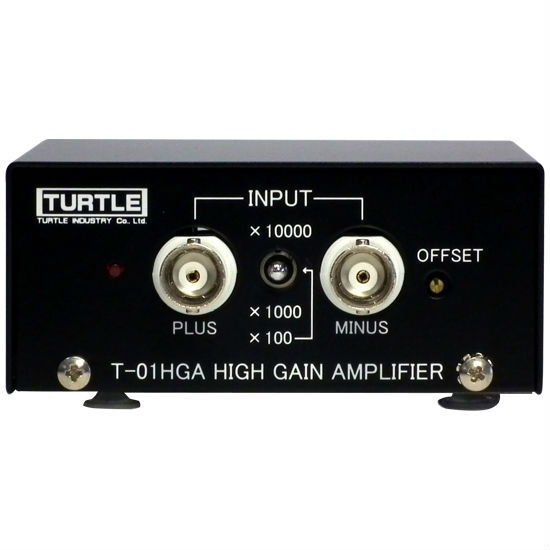

Input method: differential balanced input, bnc connector x 2.
Input resistance: 2 mΩ (differential) ±1%, parallel capacitance 10 pf or less.
Allowable maximum input voltage: approx. ±10V (versus ground, power supply voltage
±15V).
Allowable common mode maximum input voltage: approx. ±10V (versus ground, power
supply voltage ±15V).
Common mode rejection ratio: approx. 50 db (100Hz, power supply voltage ±15V)
Gain: x 100, x 1000, x 10000 (within 5% off the full scale).
Frequency properties: 80kHz (x100), 60kHz (x1000), 40kHz (x10000) (±3db, power supply voltage ±15v and output voltage ±0.5v).
Flank time: approx. 2.8 V/μsec
Low-pass filter: 1 kHz, 10 kHz, 30 kHz (individual attenuation rate - 6dB/oct within 10%
accuracy).
Remnant Noise: approx. 3.3mV (x100), approx. 6mV (x1000), approx. 13 (x10000) (power supply voltage ±15V, input short, filter through, output).
Output resistance: 50 Ω.
Maximum output voltage: approx. ±12V.
Example maximum output current: ±10 ma.
Offset adjustable range: approx. ±5V (x100), approx. ±5V (x1000), approx. ±5V (x10000) (power supply voltage ±15V, output).

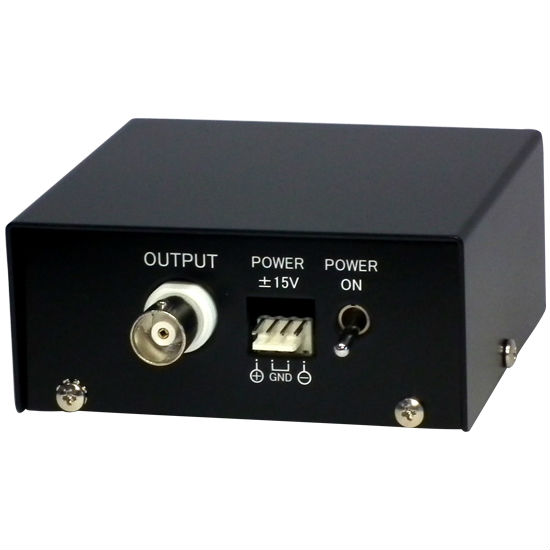

Power supply voltage range: DC ±4.5 V ~ ±15 V.
Consumed current: approx. ±12 mA at ±9 V / approx. ±18 mA at ±15 V.
Lightweight material.
Simple operation.
Lasting performance.
Can be powered by battery.
Designed for importing data into computer measurement systems.
