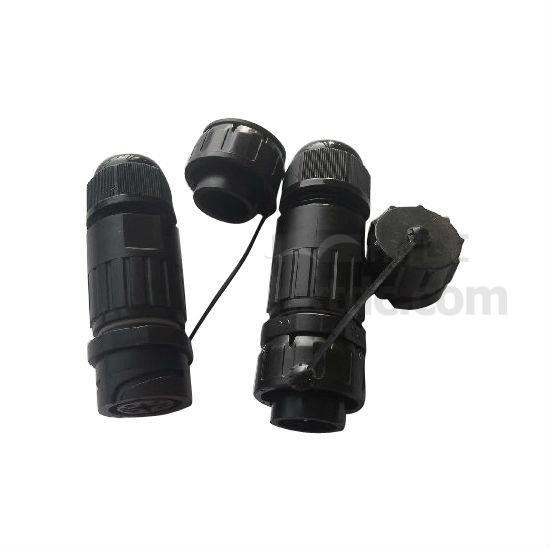

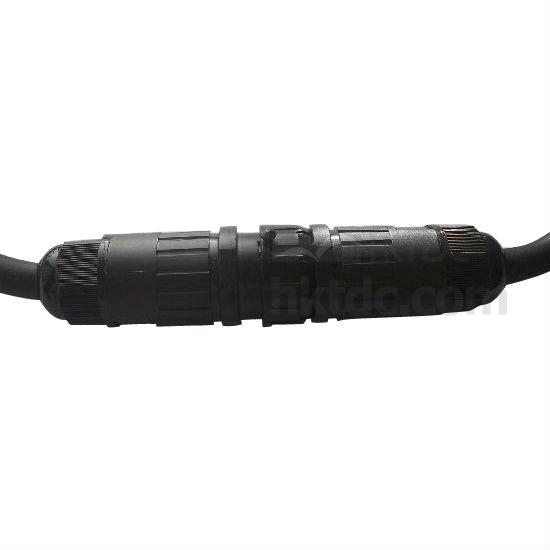

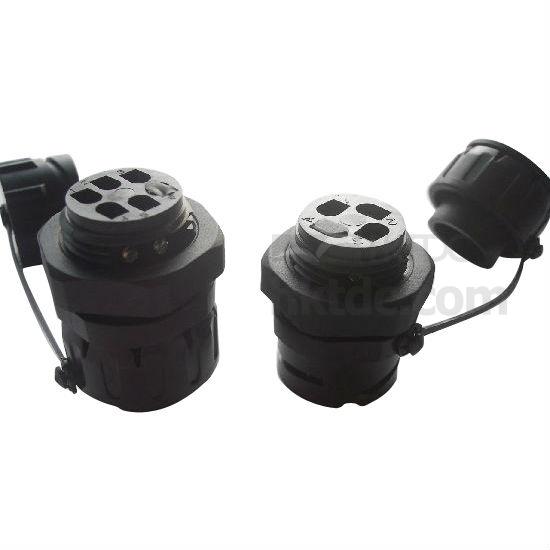

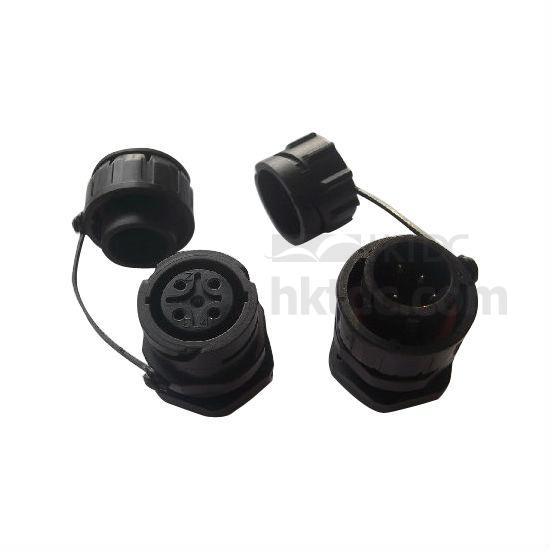

Waterproof Connector
生产所需时间:
7 日
应用:
Power transition
产品型号:
YS1-6P
品牌名称:
Kolexam
颜色:
Black
尺寸:
27mm x 125mm (Dia. x Length)
港口:
Hong Kong
付款方式:
TT
最低订购数量:
300 piece(s)
是否有包装:
有
是否可定制:
是
种类:
Circular connector
公母:
One set (both plug and receptacle)
描述
联络供应商
描述
- Material: plastic.
- Waterproof 6pin LED connector.
- For wire section: ~1.5mm^2.
- Revise bayonet coupling.
- Rating voltage/current: 160V/10A.
- IP protection: IP68 (4meter/365days).
- Screw termination, no soldering or special tools needed.
- 2-6 pins available in arrangement.
- Easy lock and protected against unlock by revise bayonet coupling.
- Housings are made by high grade plastic material with the F1 class certification.
- Either plug or receptacle can be used by line mount or box mount.
- Both wire and multi-core cable can be used for connection by using the cable back shell or multi-hole back shell.
- Constructed with high durability.
- Unique double O-ring design, reach to IP68 according to IEC60529.
- Individual water-proof cap for each plug and receptacle, IP68 reached when un-occupied.
