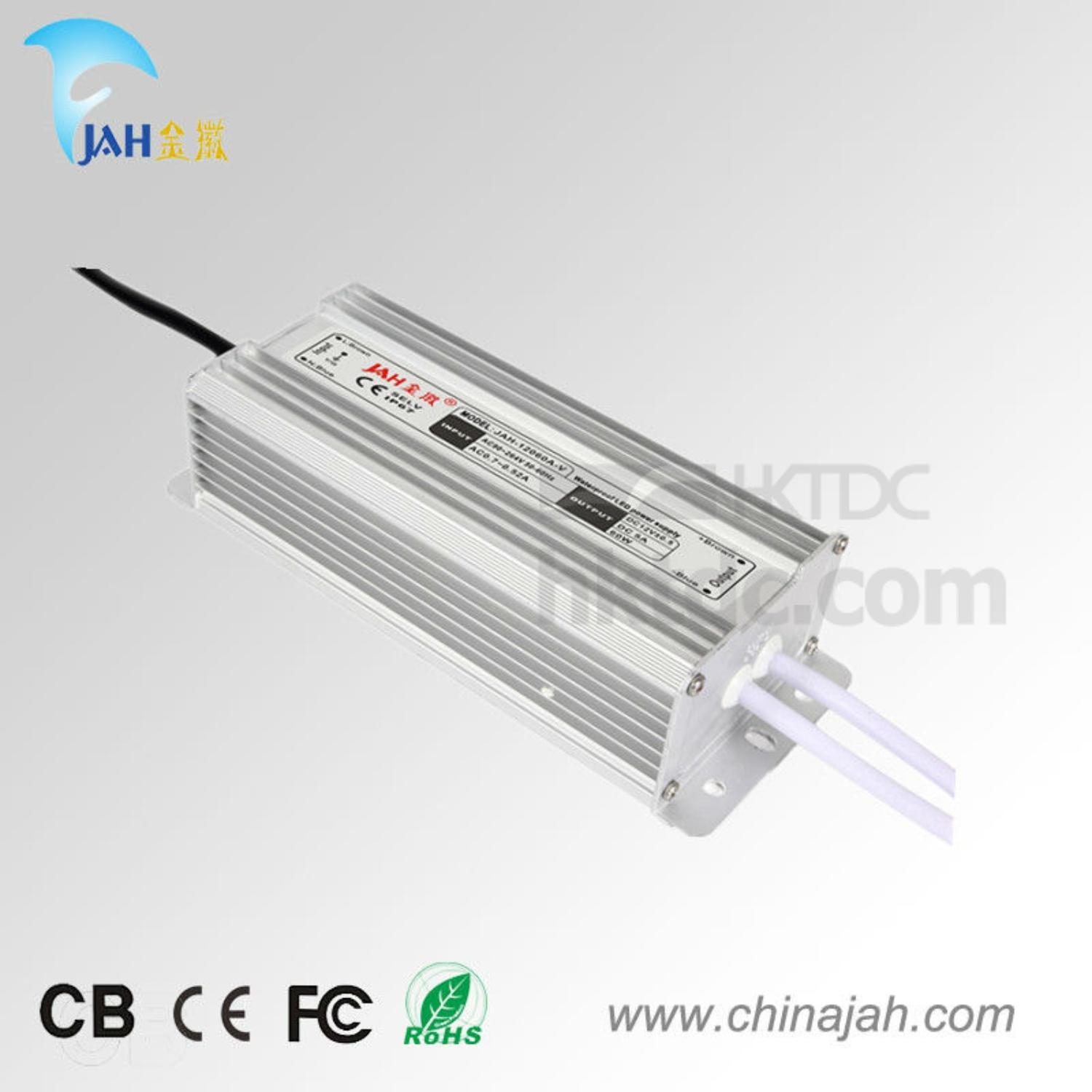

60Watt Waterproof LED Power Supply
  Features:
  • Protections: Short circuit/Overload/Over temperature
  •  Cooling by free air convection
  •  IP67 design for indoor or outdoor installations
  •  100% full load burn-in test
  •  Suitable for LED lighting
  •  Products through CE& RoHS certification
  •  2 years warranty

SPECIFICATION

• CE RoHs IP67
• Model :JAH-060CV-12
• Output Dc Voltage:12V
• Rated Current: 5A
• Current Range: 0~5A
• Rated Power :60W
• Ripple&Noise(Max) :150mV
• Voltage Tolerance ;±4%
• Setup,Rise Time :100ms/220VAC
• Hold Up Time(Typ.) ;80ms/220VAC
• Input Voltage Range :90~264VAC
• Frequency Range ;47~60Hz
• Power Factor(Type); PF>0.6/220VAC
• Efficiency(Type) ;80% 82%
• Ac Current(Type); 0.55A/235V
• Inrush Current(Type); Cold-start current 5A/235V
• Protection :Short Circuit Protection type:recovers automatically after fault conditions is removed
• Overlaod :Overload protection@145~160%above peak rating
• Over Temperature protection typer:shut down o/p voltage.re-power on to recover
• Environment Working :Temp -30~ +60℃(Refer to output load derating curve)
• Working Humidity: 20~90%RH no-condensing (Waterproof)
• Storage Temp Humidity :-40~ +80℃、10~90%RH
• Safety&Emc: Safety Standards CE Mark(LVD),IP67
• Withstand Voltage :I/P-O/P:1.5KVAC   IP-GND:1.5KVAC
• Emc Test Standards:EN 55015:2006; EN 61547:1995+A1:2000 ;EN 61000-3-2:2006; EN61000-3-2:1995+A2:2005
• EN 61347-1：2008 EN 61347-2-13：2006
