Wi-Fi Plug
生产所需时间:
3 日
港口:
Shenzhen
付款方式:
T/T
最低订购数量:
300
描述
联络供应商
描述

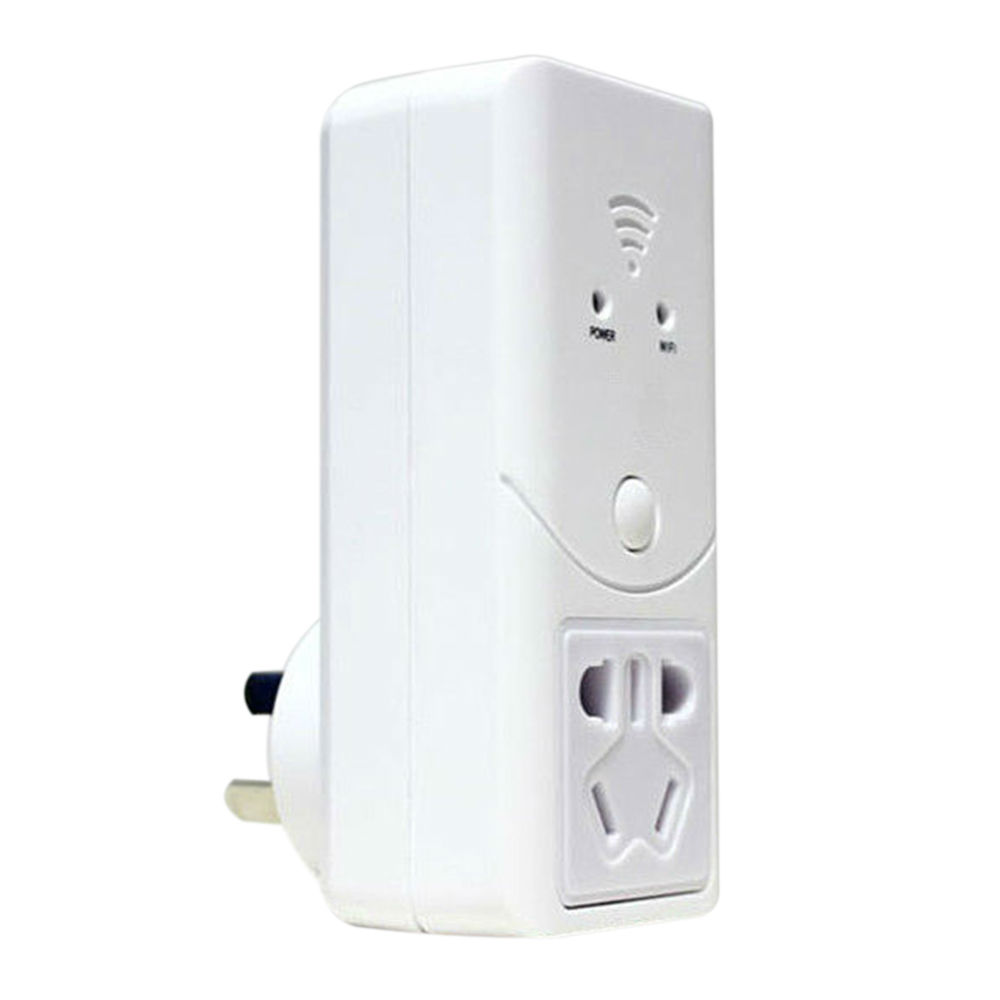

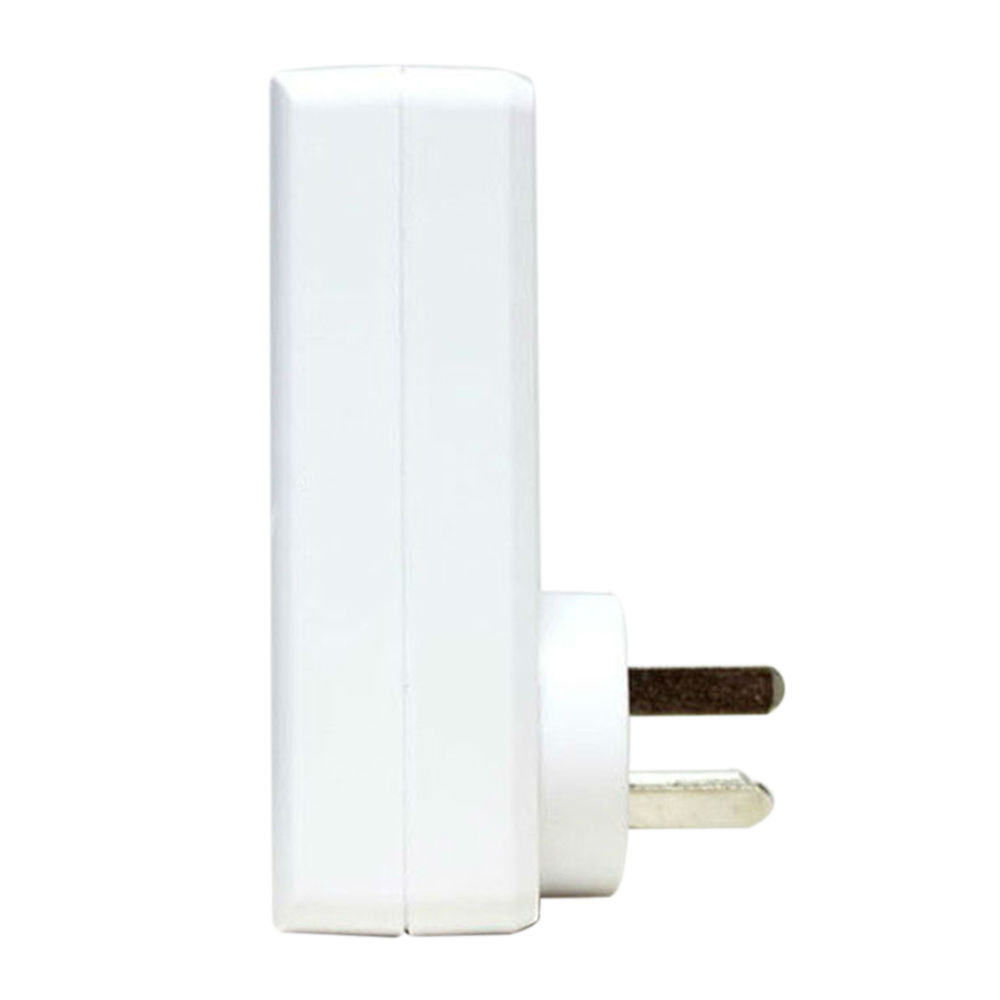

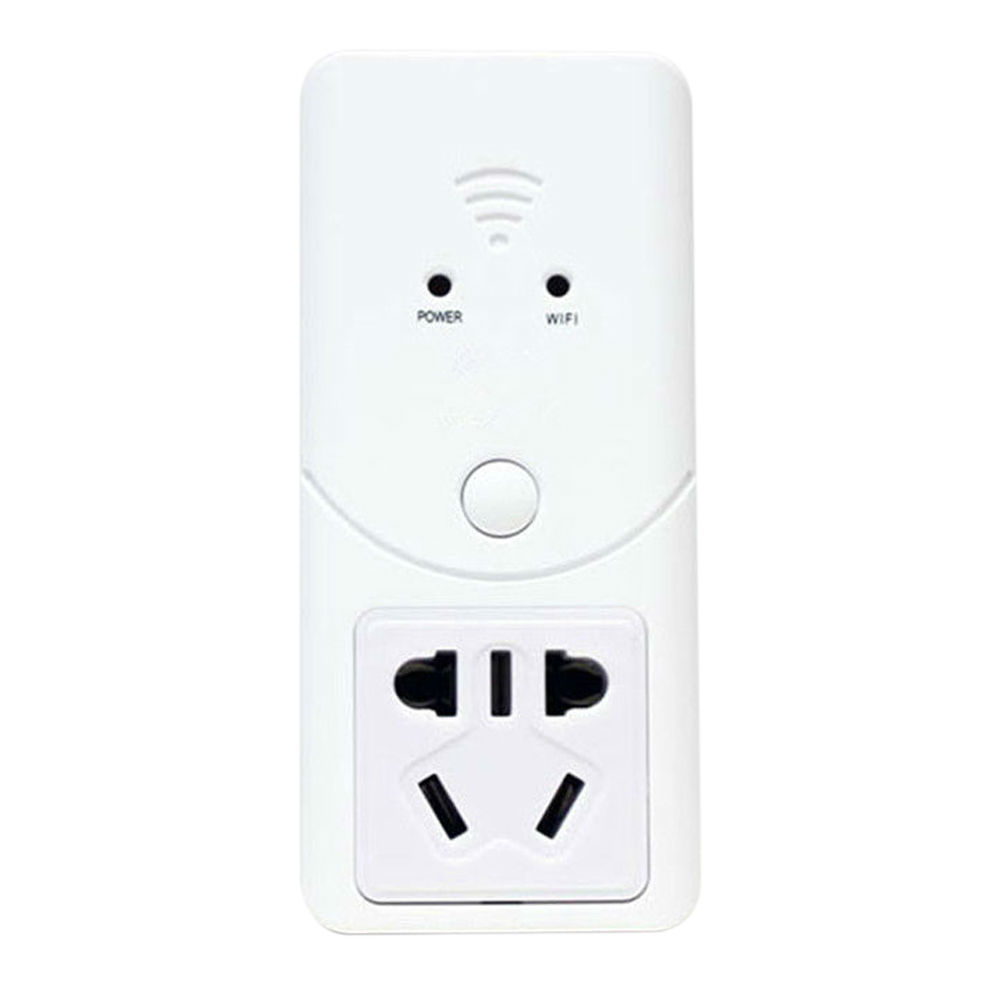

- GS-P1 plug is a kind of security & protection product which controlled by wifi.
- It could be work as a mainframe of security & protection system, receive signal from contactor and pass through wifi signal, then transfer alarm message to user’s phone.
- Functions:
- Security and protection function;

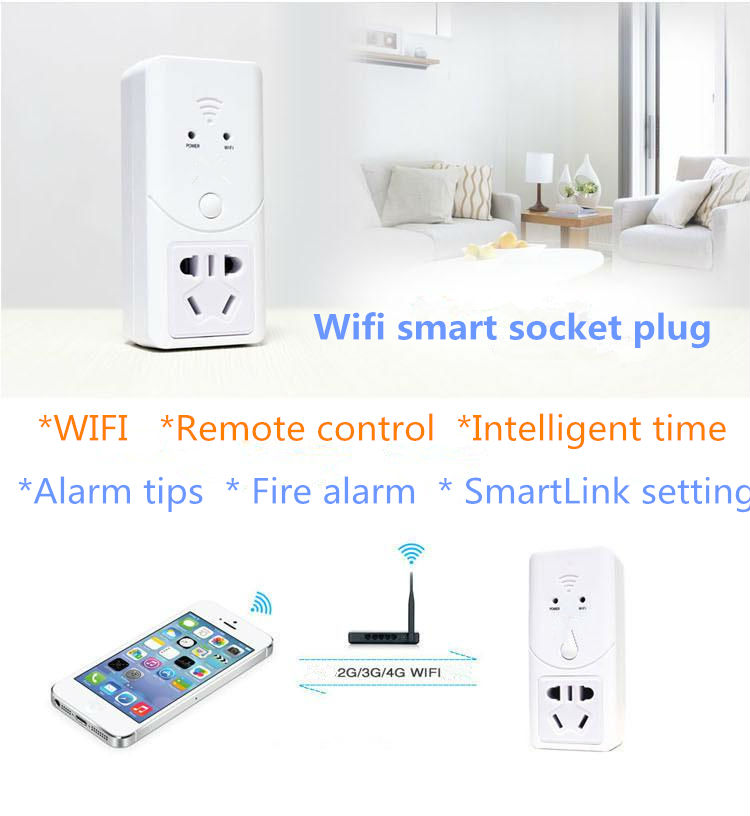

- Be able to control by wifi remote operation;
- Timing switch;
- Automatically switch on or off;
- Delay switch on or off;
- Be able to work with wireless detector, remote controller, etc to be a simple security control system.
- Specifications:
- Product Name
- Intelligent security & protection plug
- Model
- GS-P1
- Rated Voltage
- AC 220V 50Hz
- Max. Load
- 10A / 2200W
- Wifi Standard
- 2.4G 802.11b/g/n
- Contacted copper
- Phosphor bronze plating nickel
- Frequency
- 315MHz / 433MHz select-able
- Available accessories to work with
- Door contact
- Remote controller
- Wireless infrared detector
- Wireless infrared curtain detector
- Emergency button
- Gas detector
- Smoke detector
- Remarks
- Be able to work with multi-detectors & multi-remote controllers.
- One GS-K1 plug can work with more accessories, and one detector Is also able to match with more than one plugs.

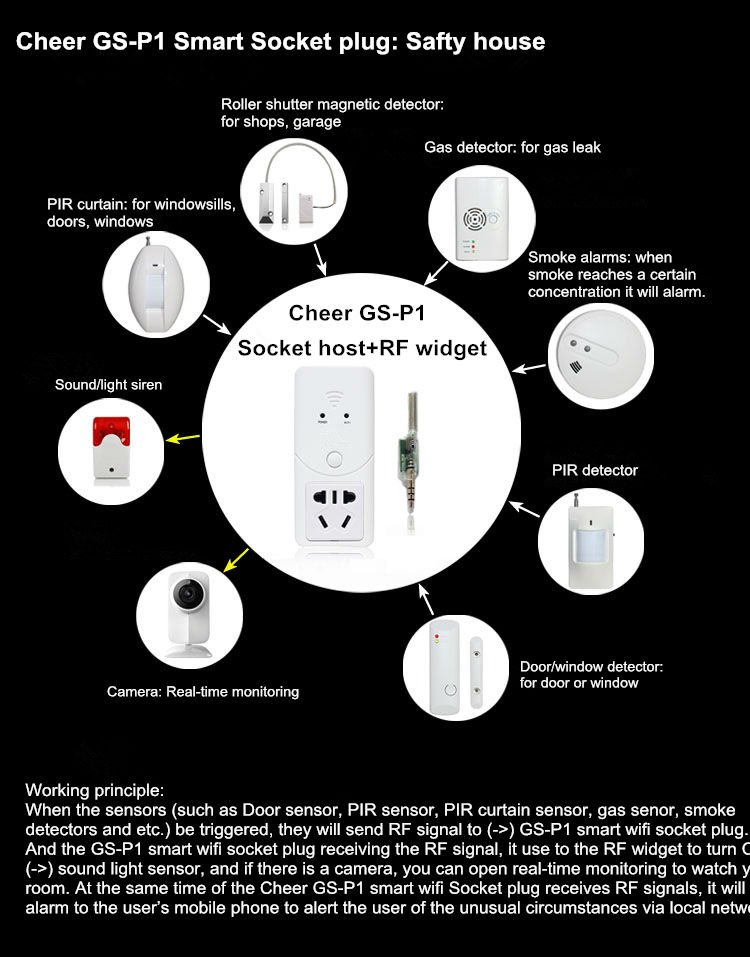

- Working principle:
- When the sensors (such as Door sensor, PIR sensor, PIR curtain sensor, gas senor, smoke detectors and etc.) be triggered, they will send RF signal to (->) GS-P1 smart wifi socket plug. And the GS-P1 smart wifi socket plug receiving the RF signal, it use to the RF widget to turn ON (->) sound light sensor, and if there is a camera, you can open real-time monitoring to watch your room. At the same time of the Cheer GS-P1 smart wifi Socket plug receives RF signals, it will send alarm to the user’s mobile phone to alert the user of the unusual circumstances via local network.
- DATAS:
- Transmission Distance: 100 meters (in open area)
- Operating voltage: 12V (12V 23A battery)
- Dimensions: 58 * 38 * 14mm
- Operating Current: 15mA
- Work: ASK / OOK
- Transfer rate: 5KB / S
- Button number: 4
- Operating frequency: 315MHZ
- Features: small, high power, good touch feelings, flexible buttons
- The main use: security control system, wireless remote control system, remote control switches, remote control retractable doors
