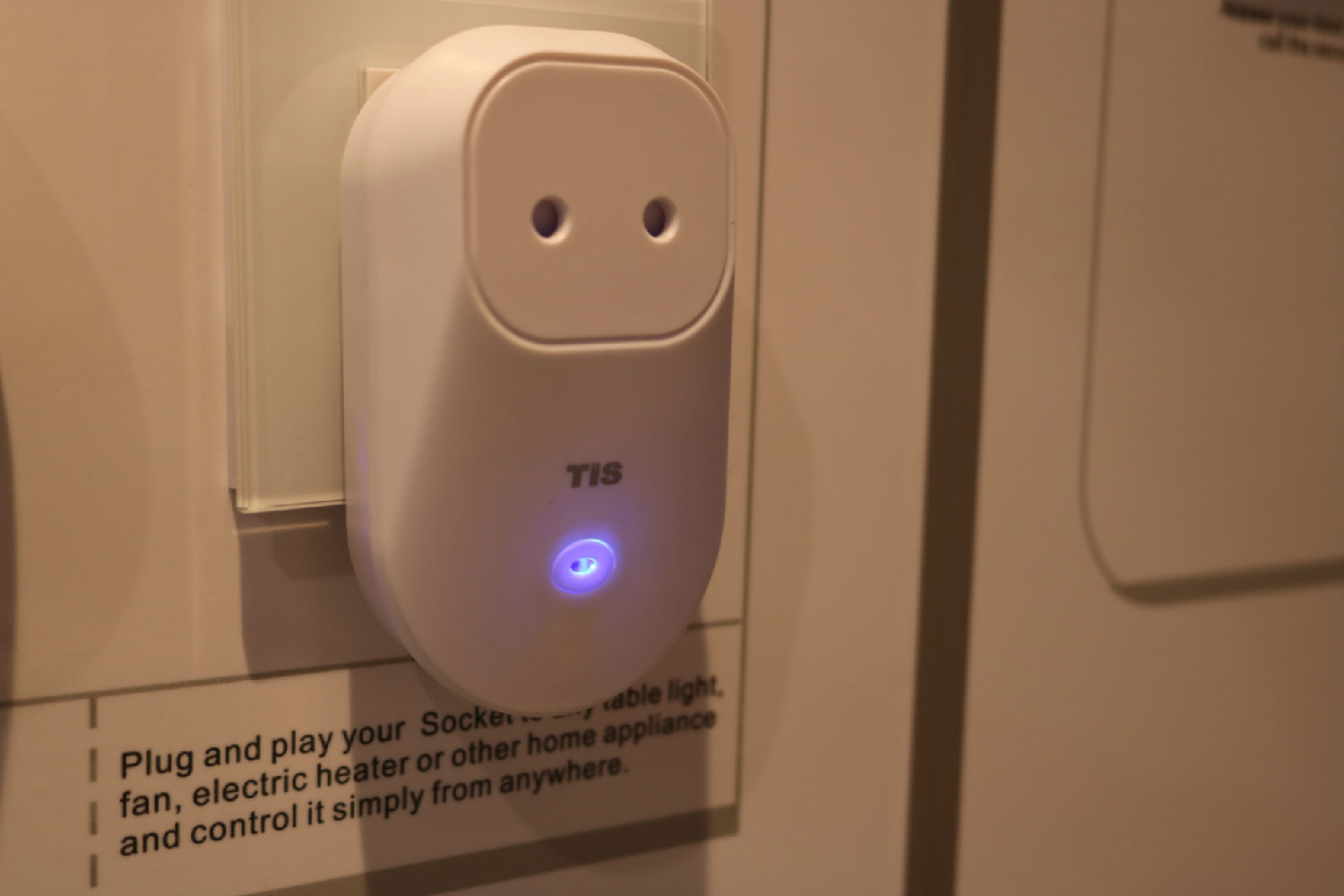

Intended use

• To control lights, home appliances.


Product Characteristics


• Power supply
• Input Voltage
• Output Power
• Protection
• Current consumption
• 80-240 VAC 50/60 Hz
• 3W / 12V
• Built in Protection fuse
• 20 mA / 12 V DC

Warranty

• 1year

Outputs


• Number of channels
• Nominal voltage
• Nominal current per channel
• 1
• 0 – 230 V AC 50/60 Hz
• 10 A / 230 VAC


Output switching current

• Max switching current
• Max Continues current
• Max. switching Voltage
• 16A/230 VAC Resistive
• 8A/230 VAC florescent
• 10A/230 VAC
• 440VAC / 125VDC

Output service life

• Mechanical Endurance
• > 10,000,000 OPS


Output switching times

• Operating time
• Releasing time
• Max. operating frequency
• 15mS (at nomi. Volt)
• 8 mS  (at nomi. Volt)
• 20 cycle/min


TIS AIR

• WIFI Signal

Protocol Standard

• 2.4 GHz
• 802.11 b/g/n

Reaction time

• approx. 30ms

Socket type

• Optional
• Europe , UK, US or Universal type


Connection terminal

• Data
• Direct TIS bus connection


Operating and display elements

• touch buttons
• Backlight
• TIS AIR

Upgrading

• 1 button for control …
• LED Backlight  indicators

TIS Protocol massages and commands

• By WIFI Connection

Weight

• Without packaging
• 100 g


Dimensions

• Width x length x height
• 103mm * 62mm * 68mm


Housing

• Materials
• Plastic Parts color
• IP rating
• PC anti fire
• White
• IP 50


Temperature range

• Operation
• Storage
• Transport
• -10…60°C
• -20…50°C
• -25…75°C


Air humidity

• <80% non-condensing
