YASL-24-120

生产所需时间:

30 日

运送方式:

by sea

品牌:

Die Casting Man

是否可订造:

可以

特性:

Tooling free

材料:

Aluminum

包括灯泡:

是

可调亮度:

是

光源:

发光二极管照明

灯具样式:

现代

型号编号:

YASL-24-120

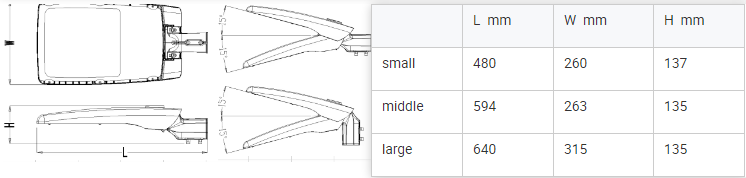

尺寸:

594x263x135mm

重量:

3.0kg

描述

联络供应商

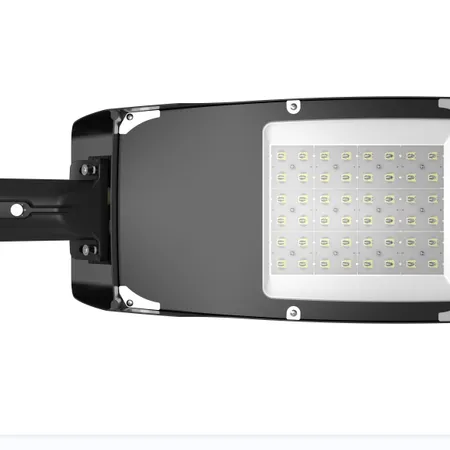

Products Description:

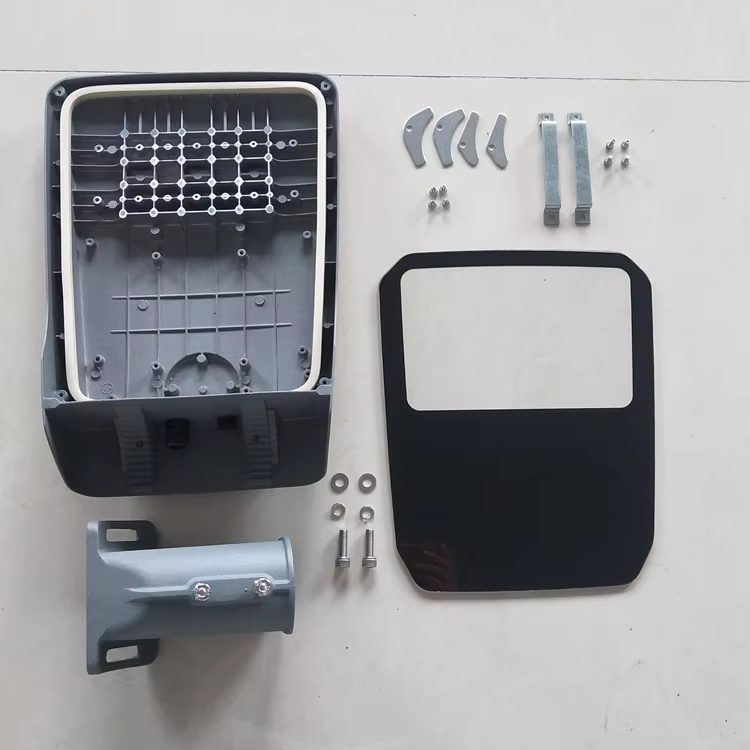

 -- Luminaire made of die-cast aluminum, closed by tempered glass in order to ensure the IP and protect the
characteristics of lenses used.

·- Access to electrical components without need of special tools, pressing locking system, which facilitates maintenance. Hidden hinge system.

 ·- Post top or side entry Ø 60 mm with the possibility of adjusting the inclination.Other fixing needs please consult.

·- Luminaire Class I. Optional Class II ·- Luminaire IP65, IK08

·- LED version available from 20W to 260W. ·- Finished in any RAL color.

·- Characteristics of the optical group: ·- High performance inner aluminium heatsink
·- Number of LED 16-24-32-48-60-80- 96-112

·- Lens Integrated with several asymmetric or symmetric distributions available
according to the project needs.

·- Luminaire efficacy from 100 to 140lm/W .

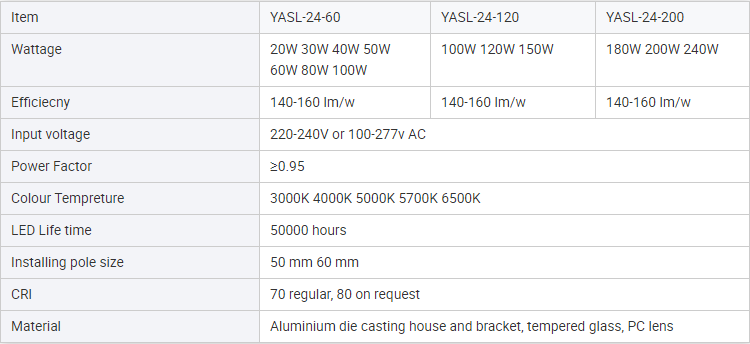

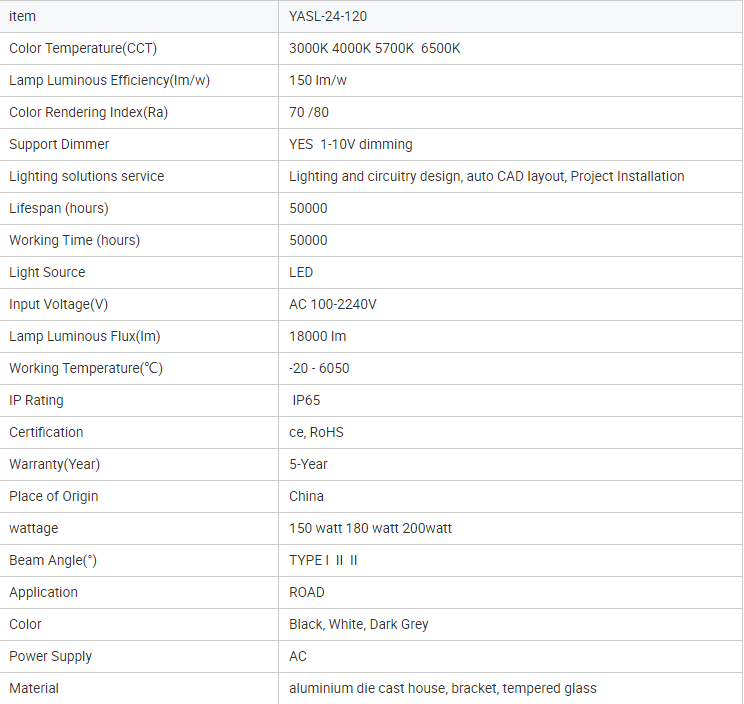

Specification

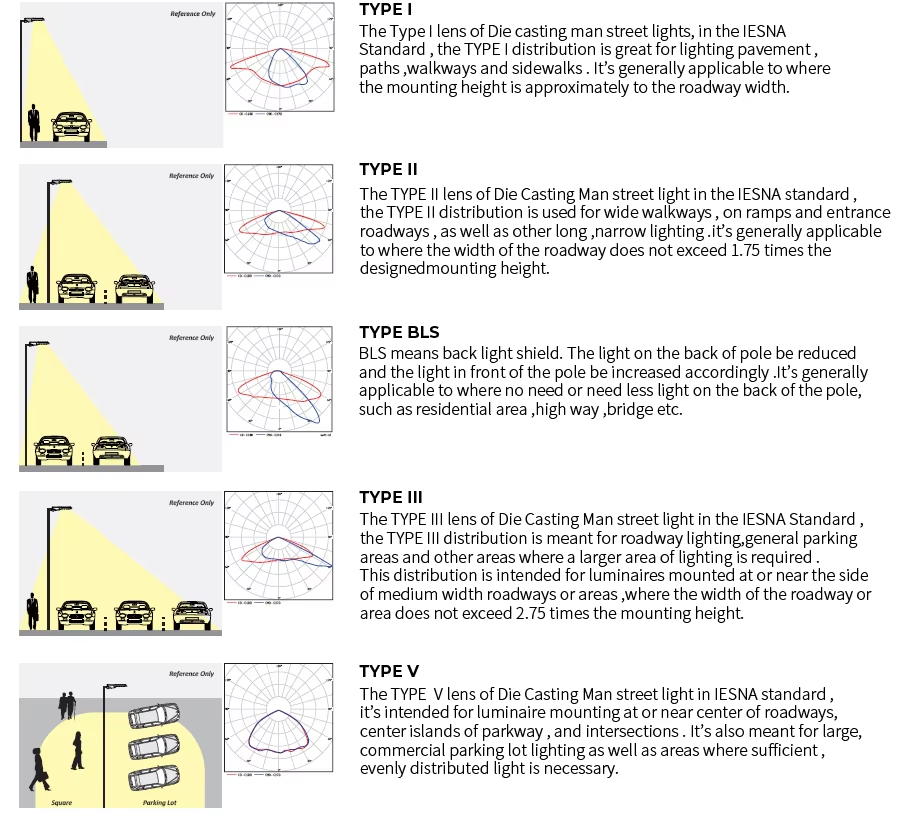

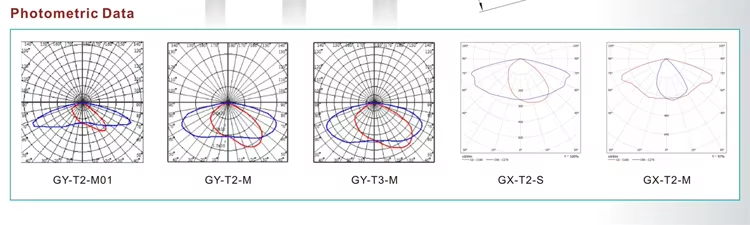

Photometric

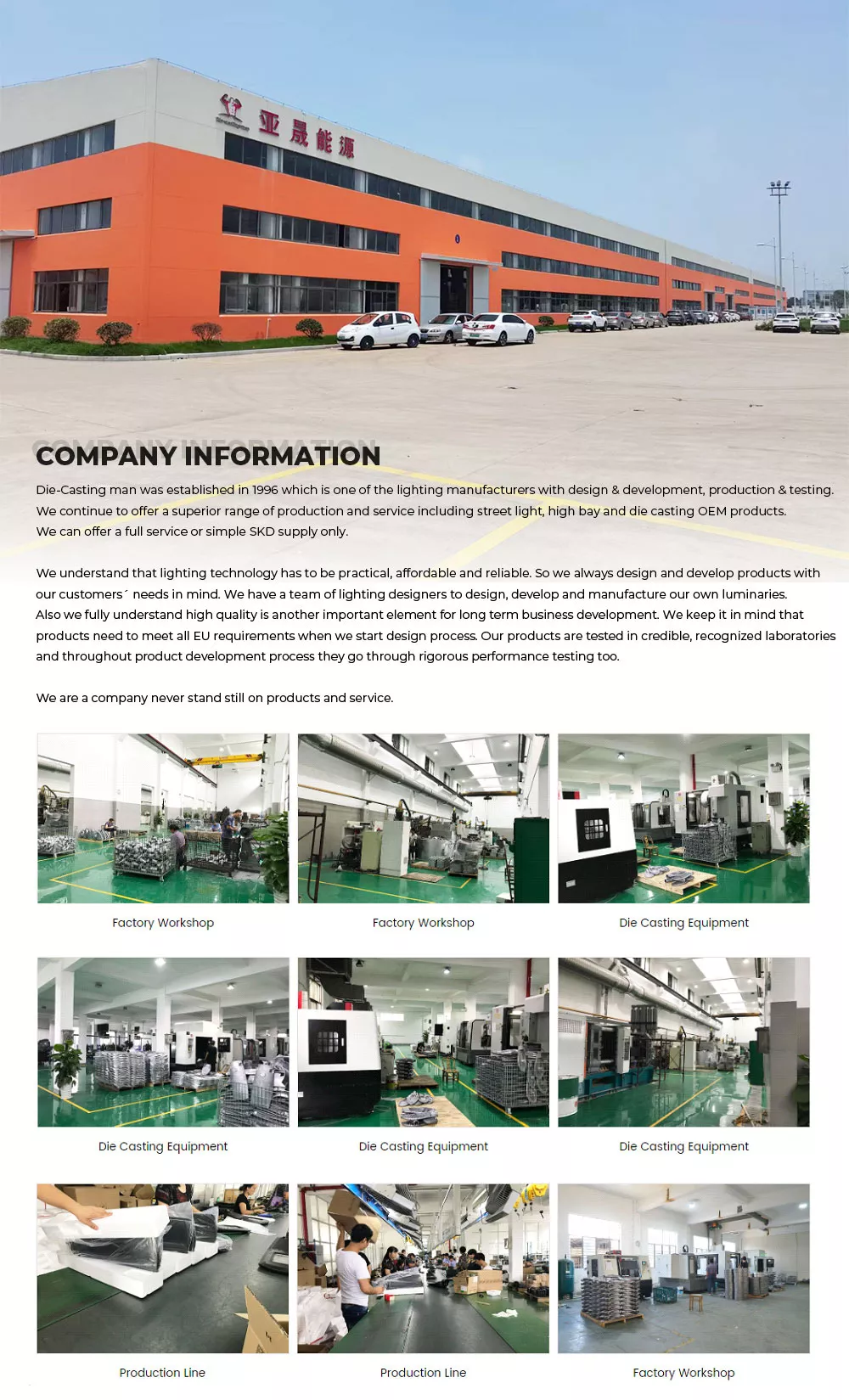

Company Profile

Die-Casting man was established in 1996 which is one of the lighting manufacturers with design & development, production & testing.We continue to offer a superior range of production and service including street light, high bay and die casting OEM products.
We can offer a full service or simple SKD supply only.
We understand that lighting technology has to be practical, affordable and reliable. So we always design and develop products with our customers needs in mind. We have a team of lighting designers to design, develop and manufacture our own luminaries. Also we fully understand high quality is another important element for long term business development. We keep it in mind that products need to meet all EU requirements when we start design process. Our products are tested in credible, recognized laboratories and throughout product development process they go through rigorous performance testing too.
We are a company never stand still on products and service.
