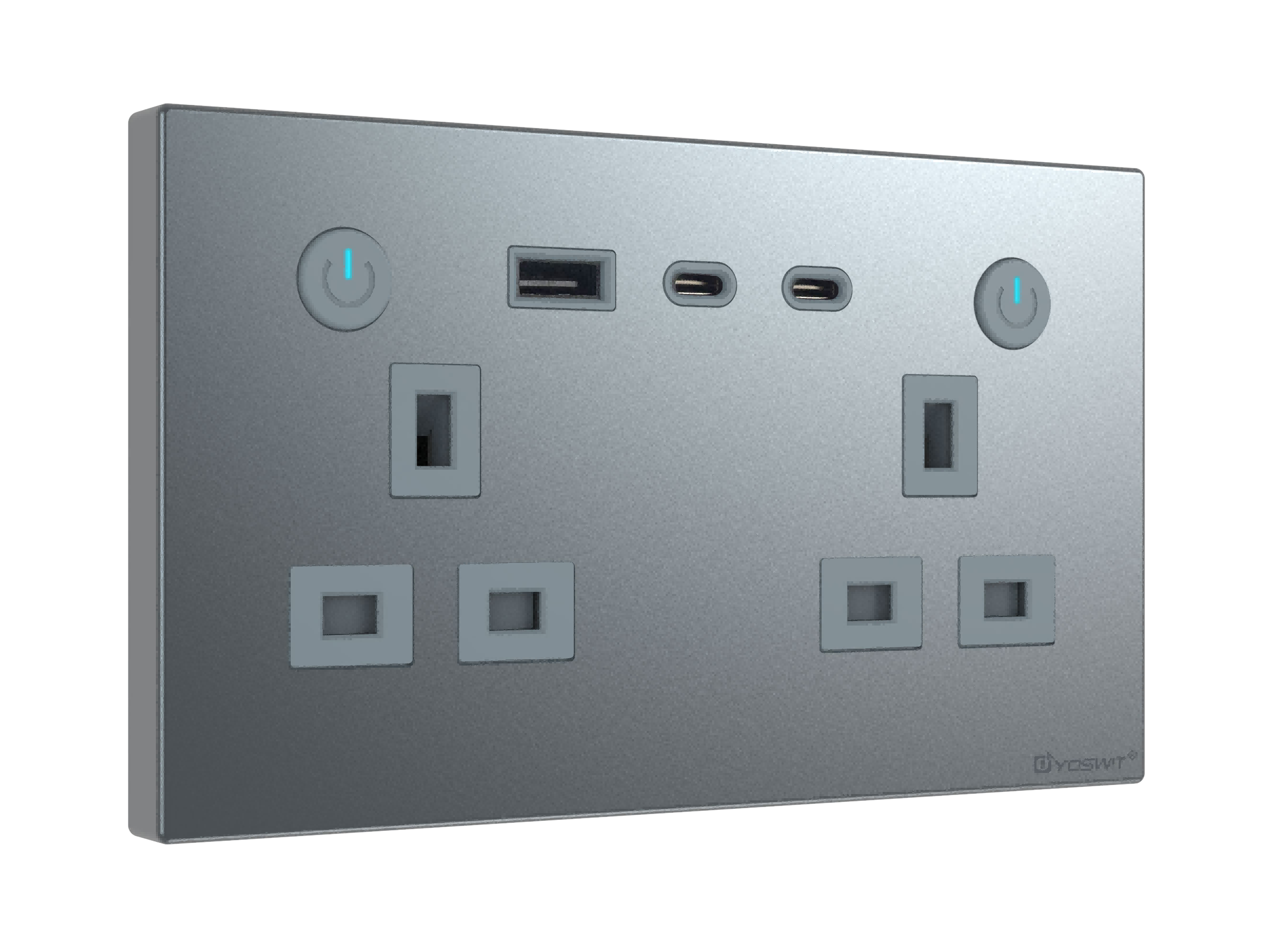

Yoswit Smart Outlet with Type-C — 2 Gang / Socket UK-MEC-A

Model: YO525uk-C (R2W)-MEC-A

Product name: Yoswit Smart Outlet with Type-C — 2 Gang / Socket UK-MEC-A

Socket type: UK

Faceplate / panel type: Socket 146

Revision: V1.0

Category: Smart Outlet / Smart Socket

Input voltage: AC 100–240V, 50/60Hz

Max load: 13A / 1.5HP

Standby power: ≤1W

Power measurement accuracy: ±3%

Connection: Wi-Fi 2.4G / BLE 4.2

Frequency: 2.4GHz

Range: Open area > 50m; indoor 3–20m

IP rating: IP20

Operating temp.: -10°C to 40°C

Operating humidity: 0–95% RH, non-condensing

Operation: App / Manual

Certifications: CE EMC, CE LVD, FCC, RoHS

Manufacturer: Designed by Yoswit in Hong Kong, assembled in Guangdong, China

USB module

• USB-A output: 5V/3A, 9V/2.2A, 12V/1.67A
• Type-C output: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A
• Max USB module power: 45W

Tagline

Smart power control to make your home truly smart — turn ordinary appliances into connected devices.

Key Features

• Real-time energy monitoring
  Track power consumption second-by-second for both high-power and low-power devices. Clear data helps reduce waste and lower electricity bills.
• Overload protection
  If current exceeds the safe limit, the outlet automatically cuts power to help prevent fires or damage to connected appliances.
• Tamper-resistant shutters
  Independent safety shutters help stop children and pets from touching live parts, reducing shock risk.
• Built-in scheduling
  Set device run times from weekly down to per-minute. Schedules are stored in the outlet and keep running even if the phone disconnects.
• Hub for other Yoswit products
  With built-in Wi-Fi, the outlet can act as a central node to connect and manage other Yoswit smart devices from one app.
• Bluetooth mesh + Wi-Fi coverage
  BLE mesh strengthens local control; Wi-Fi extends remote management through walls and across rooms.
• Built-in USB-A + Type-C fast charging
  45W max USB output for phones, tablets and other USB-C/USB-A devices.

Platform / Ecosystem

Network control · Voice control · Device grouping · Remote control · Scene modes · Presence sensing · Timer/schedule · Password protection · IFTTT

Wireless & App

• Wi-Fi: 2.4GHz
• Bluetooth: BLE 4.2
• iOS: 13.0 or above
• Android: 7.0 or above
• Range: Open area > 50m; indoor 3–20m

Specifications
