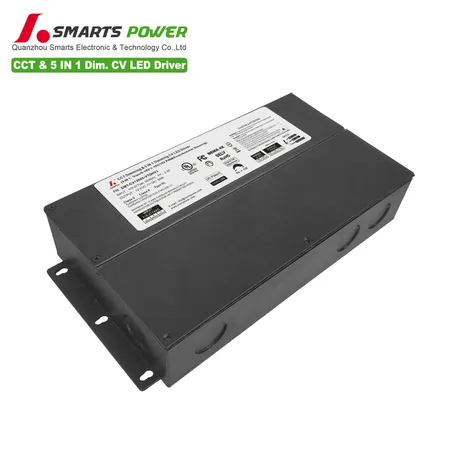

smarts new product (5 in 1)Triac/0-10V/1-10V/10V PWM/Potentiometer dimmable led driver with fine tuning voltage knob design, multiple dimming modes to choose from，100-277vac input voltage, UL approved, sold primarily in North America, suitable for large commercial lighting projects

Feature

•Multiple dimming driver: Triac/0-10V/1-10V/10V PWM/Potentiometer

•Switch to PWM or Voltage Reduce output  ref. To Unique Selling Points

•Switch to dual color temperature LED strips

•Dimming effect:

Voltage Reduce mode: 100%-0.01% dim, stepless dimming, flicker-free,

PWM dim mode:100-0.1% dim, flicker-free

•Triac dim mode: Forward phase & reverse phase, MLV, ELV dim

•Exclusive patent design of “Clamshell” junction box,low-profile

•Flexible wiring compartment to adjust the AC and DC wiring space

•UL cUL listed, Class 2, Class P, Type HL, FCC, NEMA 4X, CE, RoHs

•NEMA 4X for indoor and outdoor use; Wet, damp, and dry location,

•Title 24 JA8 compliant

•Universal input, 100-277Vac

•Build in active PFC, typical power factor>0.95, THD<10%@120V Max. load

•Constant voltage type, fine tune of output voltage  ref. to chart 1

•Super low loading request, works perfect at 10-100% load.

•Short-circuit, over-temperature, over-load protection.

•7 years warranty

Unique Selling Points：

1）Voltage Reduce Output

√Dimming range: 100%-0.01% Ultra Deep Amplitude

√The output voltage peak is in the affordable value of the LED during driver on/off and dimming, no harm to the LED for long-term using, and slow down the speed of lumen depreciation.

√Works with single channel dim to warm LED strip/tape (2 wires).

√Works with two channel CCT warm-dim LED strip/tape (3 wires).

2）Compatible PWM & Voltage Reduce output

√synchronously dimming the LEDs with different starting voltages.

√compatible with DC-DC design LED fixture, such as MR16, PAR, wall washer, linear lighting, LED strip/tape

Application:

•LED strip/LED tape/LED module

•Residential Lighting

•Commercial Lighting

Series Information:

Include 60-340W, single & multiple outputs
