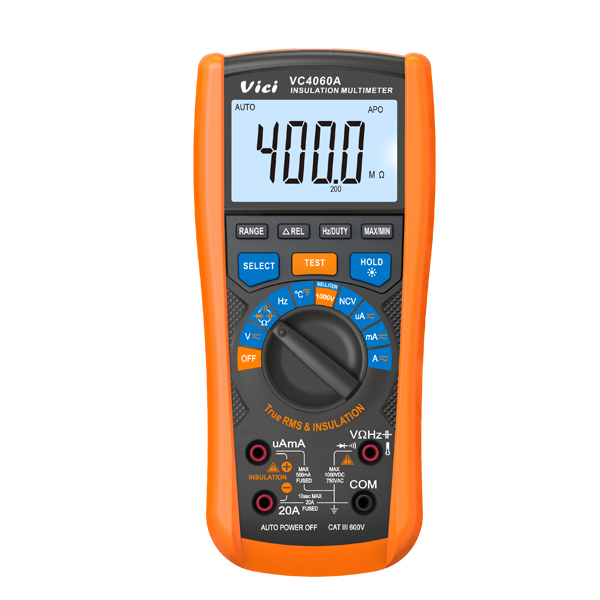

vici VC4060A 4000 counts T-RMS NCV Insulation Multimeter

美元 $15.45 - 美元 $26.48

DCV:

1000V

ACV:

750V

DCA:

20A

ACA:

20A

Resistance:

40MΩ

Capacitance:

40mF

Frequency:

10MHz

Insulation Resistance:

2GΩ/1000V

Temperature:

1000℃/1832℉

描述

联络供应商

vici VC4060A 4000 counts T-RMS NCV Insulation Multimeter

Features:

1. New type holster, streamlined design, comfortable handle;

2. Large LCD display makes reading clear;

3. Strong antimagnetic and anti-interferential performance, Full function protection;

4. Auto power off when there is no measurement in 15 minutes;

5. Unit symbol display, easy to read; backlight display;

6. Insulation Resistance Test, True RMS, non-contact voltage detection, frequency/duty cycle, and data hold function.

Technical specifications:

Special function	VC4060A
True RMS	√
NCV	√
Function Protect	√
Diode test	√
Continuity test	Warning sound when less than 50Ω
Duty cycle measuring	√
Data hold	√
Backlight display	√
Max/Min	√
Auto power off	Approx.15minutes
Low battery indication	Approx. less than 7.6V
Input impendence	10MΩ
Sampling rate	3times/s
AC frequency response	40Hz-2kHz
Operation way	Manual or auto range
Max. display	4000
LCD size	65×40mm
Power	6x1.5V AA battery
Power dissipation	Quiescent current approx. 6mA

General Info:

Color	Orange holster and Grey device
Weight	480g (including battery)
Meter size	200x92x50mm
Standard accessory	Test leads, crododile clips, battery, manual, TP01 temperature probe, handbag, box
Packing	Gift box
Quantity per carton	20pcs
Carton size	46.531.529cm
GW per carton	15kg
