Function parameter：
- 5w input voltage/ current: dc 5v /2a ，
- 5w output voltage/ current: dc 5v /1a(max)
- 10w input voltage/ current: dc 5v / 2a or 9v/ 1.67a ，
- 10w output voltage/ current: dc 5v/ 1a(max) or 9v/ 1.2a(max)
- Charging power : max 5w
- Transfer efficiency：70% to 76%
- Effective distance：max 8mm，recommend distance 2mm~4mm
- Standby power：average power less than 50mw
- Over heat protection ：power off automatic when temperature over 60°and red led flash
- Over current protection：power off automatic when charging current
- over 2a
- FOD (foreign object detect) power off automatic when you place coil or metal material for example key upon the charging pad. the red led will flash.
- Standard：qi
- Indication led： SMT led ，blue light on when charging，green light on when charging full
- Working frequency: 110- 205khz
- Product size: 10 cm ; color box size: 12 x 12.3 x 2.5cm
- Weight： 100 g
- Power input： positive and negetive power wire or micro usb

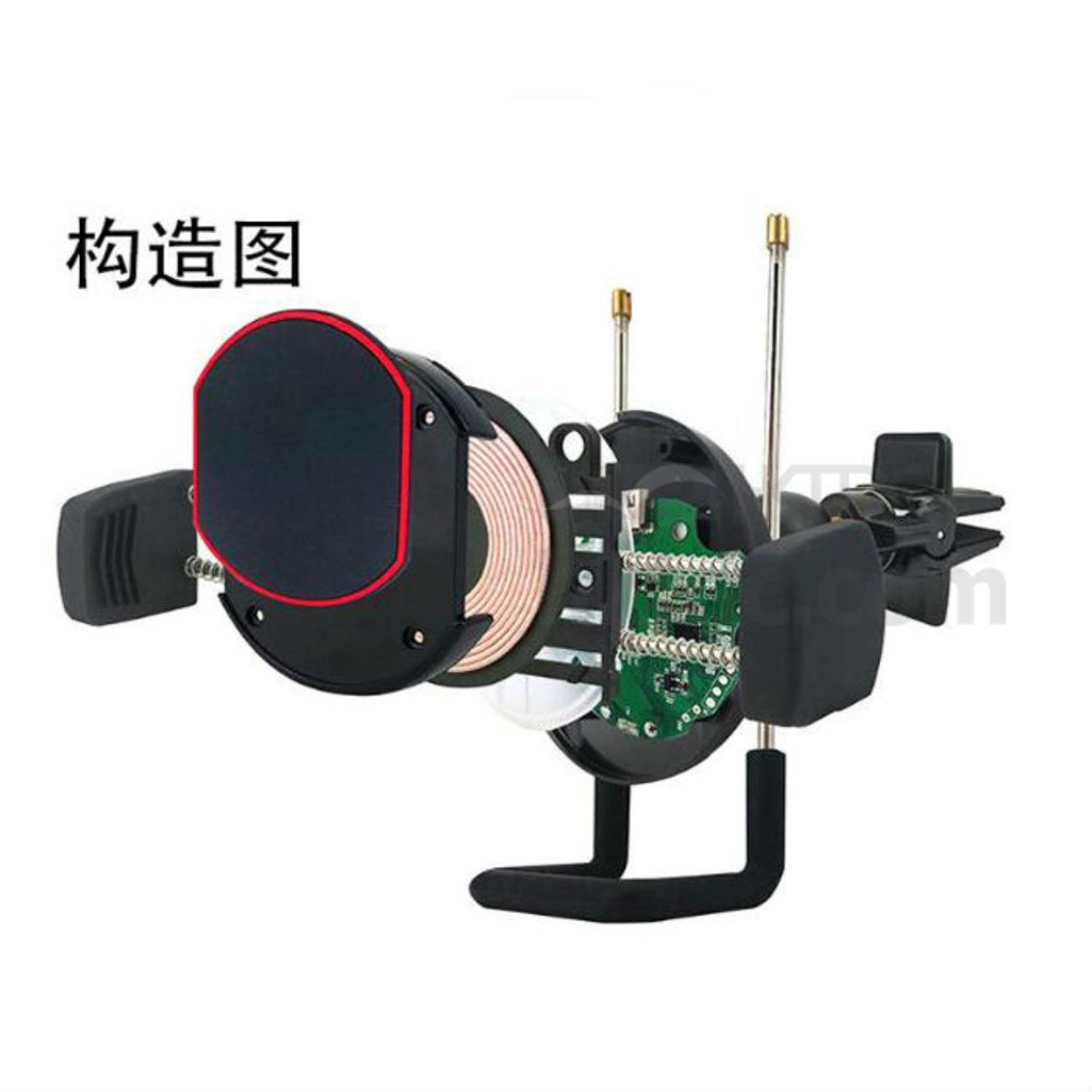

- TX coil magnetic insulator diameter：5cm
- TX coil and magnetic insulator total thickness：3mm
