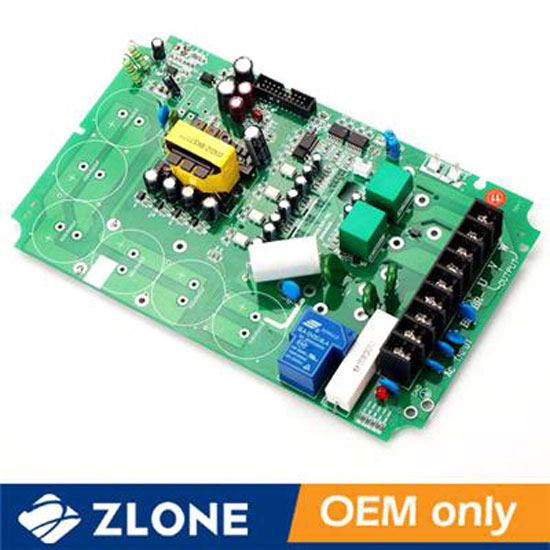

We offer one-stop PCB assembly services. Our services include 1-to-12-layer PCB fabrication, PCB design, PCB layout, PCB manufacturing, PCB assembly, component sourcing, PCBA function test and design solution. Our PCBA tests are carried out under strict supervision to ensure every single PCB performs well.

• Layer: 1-12 layers.
• Material: FR-1, FR-2, FR-4, CEM-1, CEM-3, high TG, FR4 halogen free.
• Board thickness: 0.2-3.5mm.
• Max panel size: 630 x 520mm.
• Min. drilled hole size: 0.5mm.
• Min. line width: 0.075mm (3mil).
• Min. line spacing: 0.075mm (3mil).
• Surface finish/treatment: HASL/HASL lead free, chemical tin, chemical gold, immersion gold, immersion silver/gold, OSP, gold plating.
• Copper thickness: 0.5oz min, 5oz max.
• Solder mask color: green, black, white, red, blue and yellow.
• Inner packing: vacuum packing and plastic bag.
• Outer packing: standard carton packing.
• Hole tolerance: PTH: ±0.076, NTPH: ±0.05.
• Certificate: UL, ISO9001, ISO14001, ISO/TS16949 and RoHS.
• Profiling punching: routing, V-cut and beveling.
• OEM services only.
