21.9V / 25Ah NCM FPV UAV Battery | 電池

東莞山澤新能源科技有限公司

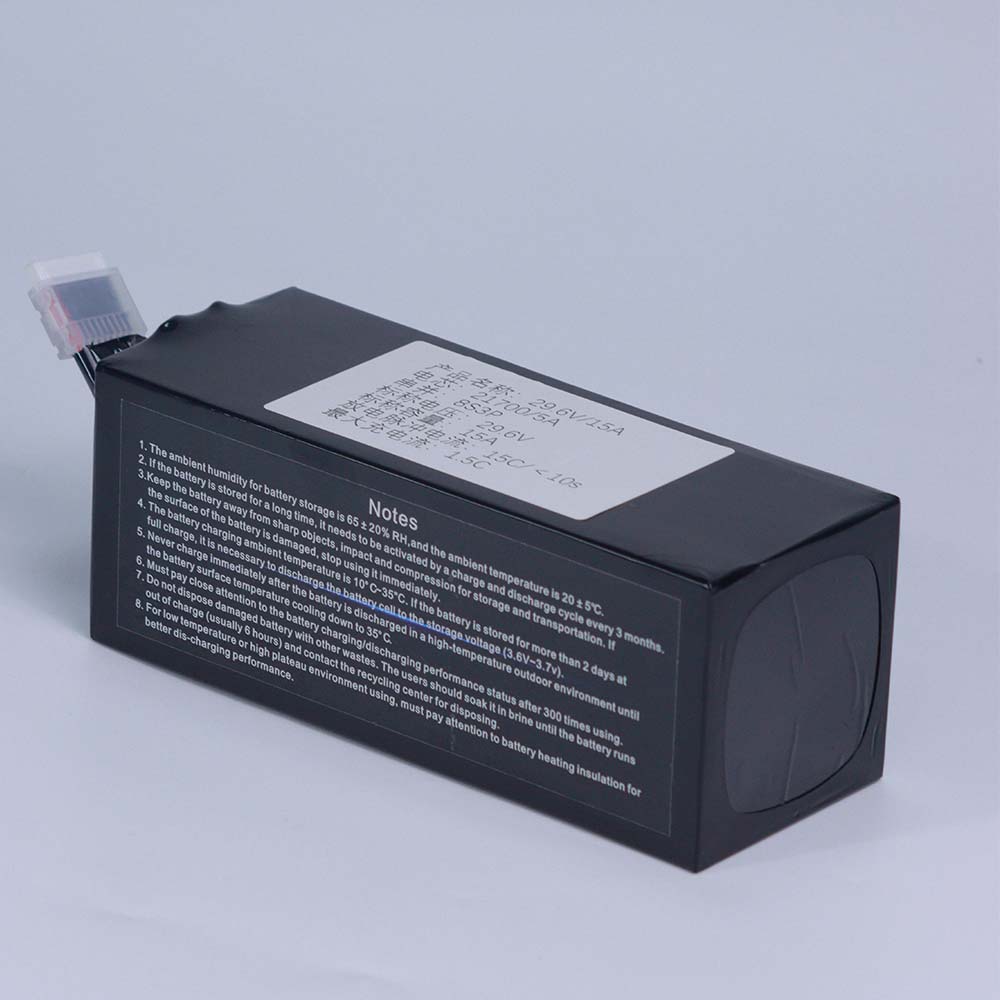

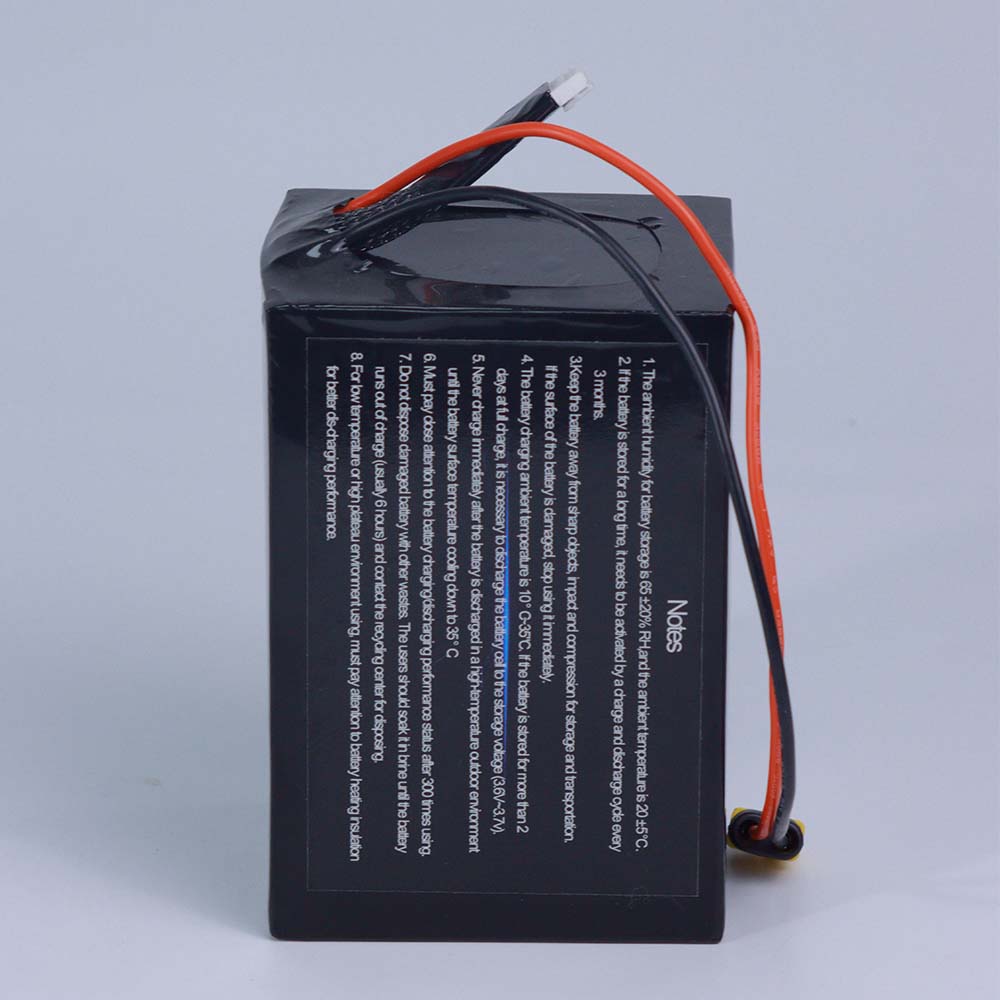

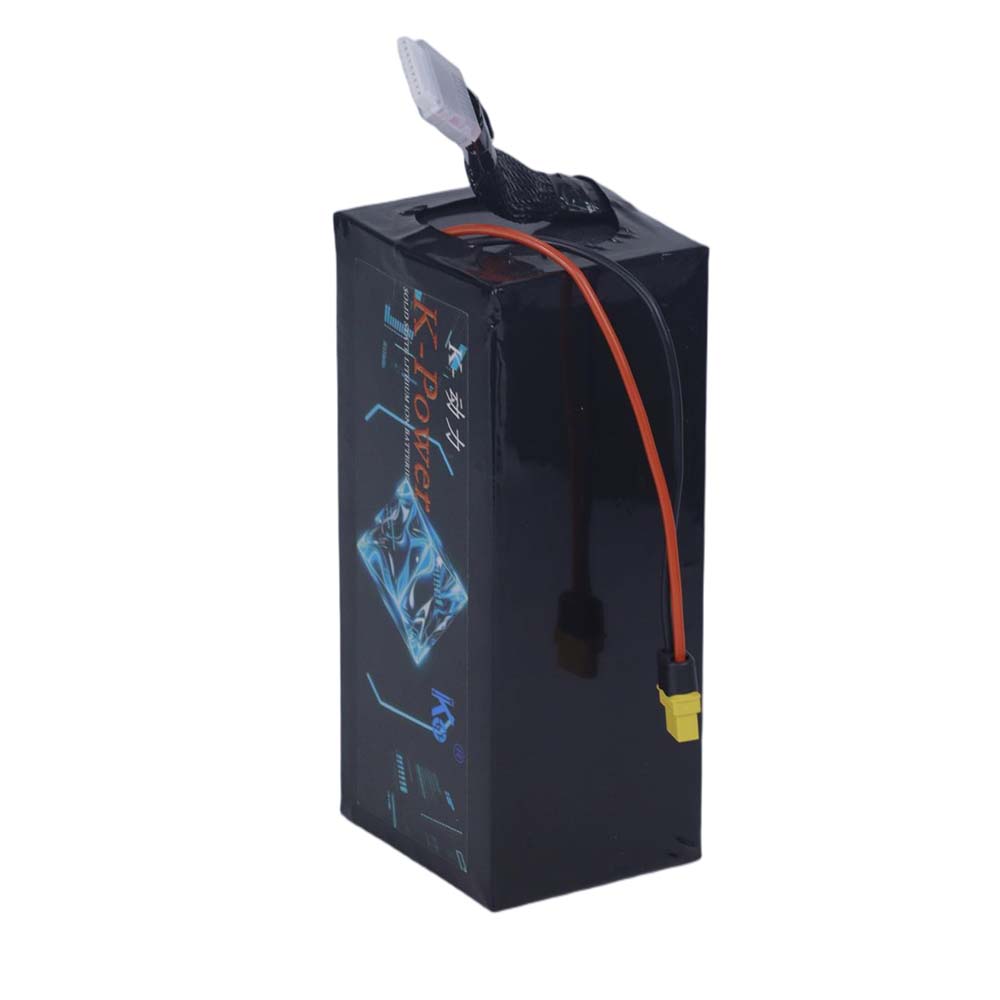

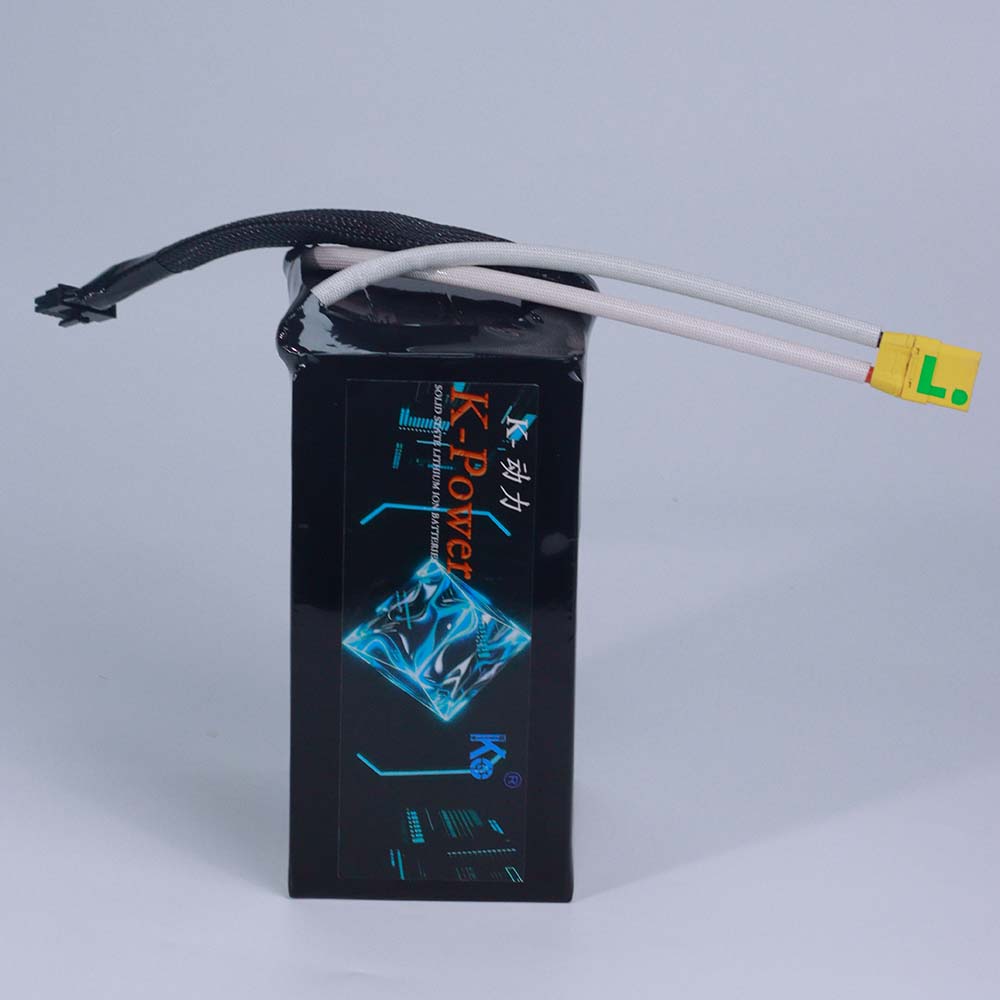

21.9V / 25Ah NCM FPV UAV Battery

美元 $10.00 - 美元 $100.00

生產所需時間:

7-15 日

運送方式:

sea /air shipping

電池類型:

鋰離子電池

尺寸:

196 x 78 x 67 mm

重量:

<=1.85 kg

是否可訂造:

可以

Nominal Energy:

547.5 Wh

Cycle Life :

800-1000 cycles

型號編號:

6s1p

Pulse Discharge :

5C (125 A), 60 s

Continuous Discharge:

3C (75 A)

Cell Chemistry:

NCM 310 Wh/kg

描述

聯絡供應商

Specification Item	Value from PPT Page
Product Name	21.9V / 25Ah NCM UAV Battery
Model / Configuration	6S1P
Nominal Voltage	21.9 V
Battery Capacity	25 Ah
Nominal Energy	547.5 Wh
Charge Voltage	25.2 V
Maximum Charge	2C (50 A)
End-of-Discharge Voltage	16.5 V
Standard Charge	0.5C (12.5 A)
Pulse Discharge	5C (125 A), 60 s
Continuous Discharge	3C (75 A)
Working Temperature	Charge 0-45 C; Discharge -20-55 C
Cycle Life	800-1000 cycles
Harness / Connector	XT90-S + 7-pin balance, customizable
Net Weight	<=1.85 kg
Dimensions (L × W × H)	196 x 78 x 67 mm
Cell Chemistry	NCM 310 Wh/kg
