44.4V / 16Ah NCM UAV Battery | 電池

東莞山澤新能源科技有限公司

44.4V / 16Ah NCM UAV Battery

美元 $10.00 - 美元 $100.00

生產所需時間:

7-15 日

運送方式:

sea /air shipping

應用:

High-Rate UAV Battery Pack for FPV, Industrial and Long-Endurance Drones

電池類型:

鋰金屬電池

尺寸:

196 x 78 x 100 mm

重量:

<=2.80 kg

是否可訂造:

可以

Nominal Energy:

710.4 Wh

Continuous Discharge :

5C-7C (80-112 A)

Cycle Life :

>1200 cycles at 0.5C/0.5C

描述

聯絡供應商

Specification Item	Value from PPT Page
Product Name	44.4V / 16Ah NCM UAV Battery
Model / Configuration	12S1P
Nominal Voltage	44.4 V
Battery Capacity	16 Ah
Nominal Energy	710.4 Wh
Charge Voltage	50.4 V
Maximum Charge	1C (16 A)
End-of-Discharge Voltage	33.0 V
Standard Charge	0.5C (8 A)
Pulse Discharge	10C (160 A), duration <= 10 s
Continuous Discharge	5C-7C (80-112 A)
Working Temperature	Charge 0-45 C; Discharge -20-55 C
Cycle Life	>1200 cycles at 0.5C/0.5C

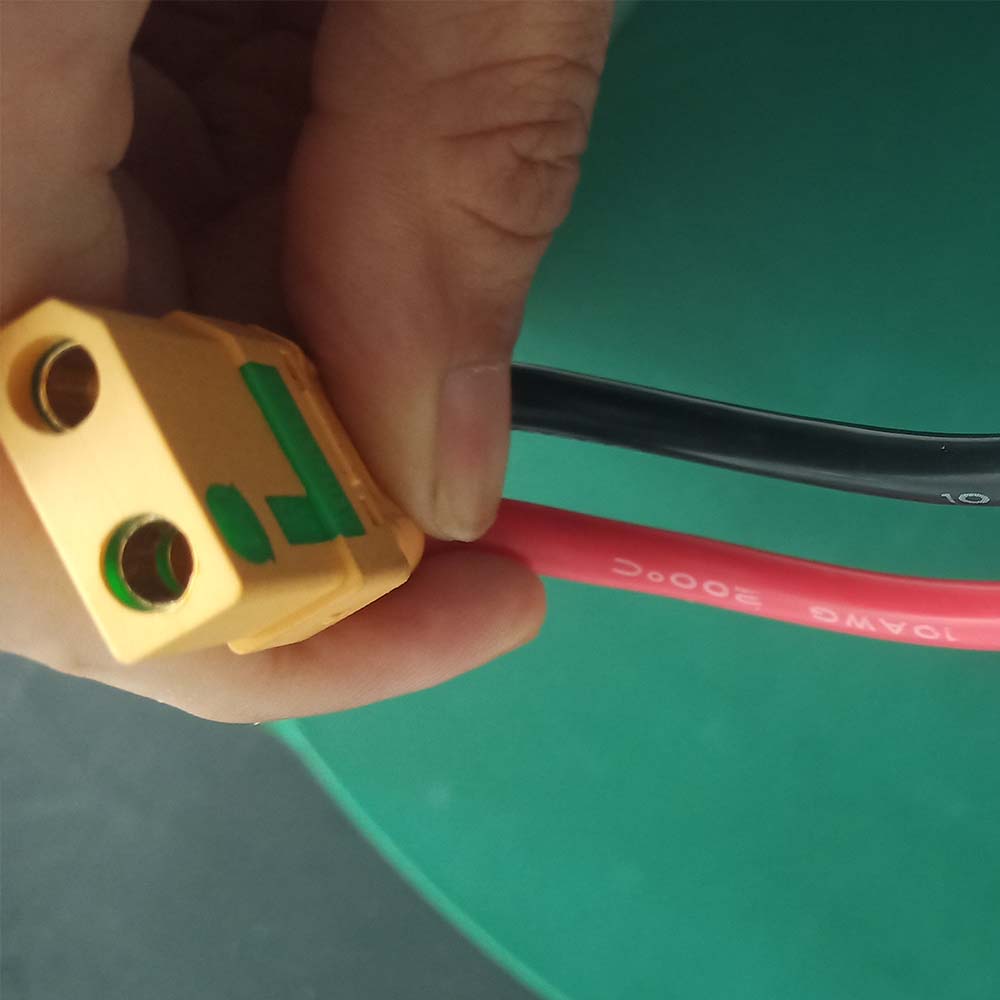

Harness / Connector	QS8/AS150 + 13-pin balance, customizable
Net Weight	<=2.80 kg
Dimensions (L × W × H)	196 x 78 x 100 mm
Cell Chemistry	NCM
