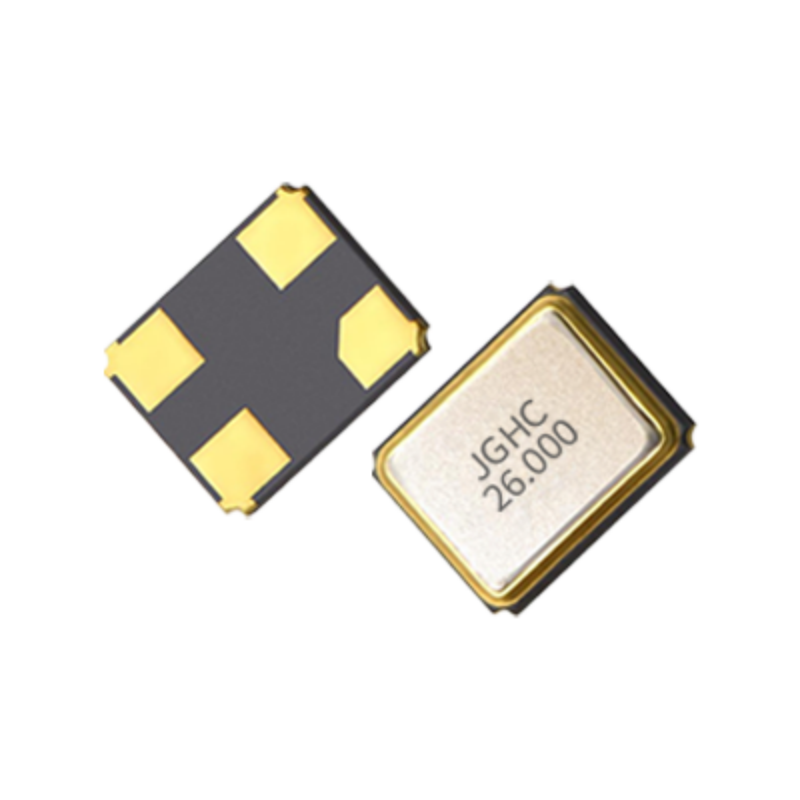

SMD Seam Sealing Crystals 3.2x2.5x0.7mm S32 Series
CRYSTAL BRIGHT GROUP(HK)LIMITED
Please enter a valid keyword with 2 or more characters / numbers.
3225 SMD Crystal 8MHz-64MHz Xtal
Brand:
JGHC晶光华
Customised:
Yes
Model No.:
S32
Size:
3.2x2.5x0.7mm
Nominal Frequency:
8-64MHz
Load Capacitance:
20pF or specif
Frequency Difference:
±20ppm or specif
Email:
alan@jghcrystal.com
Website:
www.jghcorp.com
Description
Contact Supplier
Description
Features
- High precision and high frequency stability
- Extremely good for reducing EMI effect
- Provide clean and stable reference clock to a wide variety of ICs
- The best choice of Bluetooth , Wi-Fi and other short range wireless communication
- RoHS and REACH Compliant , Pb-free , Halogenfree
- RoHS Compliant / Pb Free
Crystals specifications:
ITEMS/TYPE | S32 |
Frequency Range | 8~64MHz |
Load Capacitance | 8pF, 10pF, 12pF, or specify |
Frequency Tolerance (at 25°C) | ±10ppm, ±20ppm, or specify |
Frequency Stability Over Operating Temperature Range | ±10ppm, ±20ppm, or specify |
Operating Temperature Range | -40-+85°C, or specify |
Shunt Capacitance (C0) | 3pF Max. |
Drive Level | 1~200μW (100μW typical) |
Aging (at 25°C) | ± 3 ppm/year Max. |
Storage Temperature Range | -40~+125°C |
Dimensions and patterns(unit:mm):
