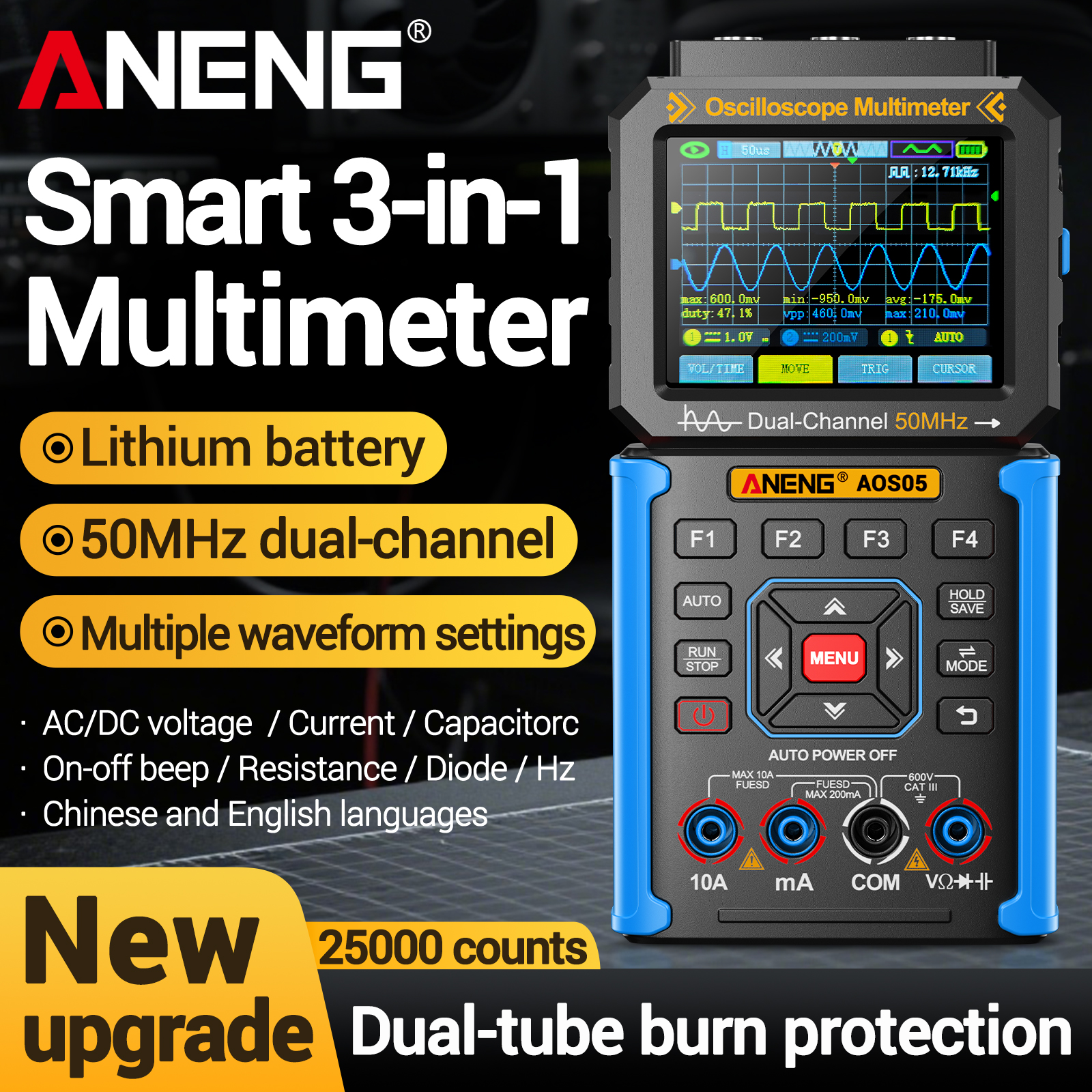

ANENG AOS05 Oscilloscope Multimeter
Production Lead Time:
7 day(s)
Shipping Method:
Express/Air/Sea
Brand:
ANENG
Model No.:
AOS05
Description
Contact Supplier
Description
| Oscilloscope Technical Specifications | |||||
| Features | Description | Features | Description | ||
| Measure | Auto Measurement | Dual Channel | Vertical | Sensitivity | 20mV/div- 10V/div |
| Measure | Sampling Method | Real-time Sampling | Displacement Range | 4 Grids (Positive/Negative) | |
| Real-time Sampling Rate | 200M | Analog Bandwidth | 50MHz | ||
| Channels | 2 | Dual Channel | Low Frequency Response | Greater than 10Hz | |
| Inputs | Input Coupling | DC,AC | Rise Time | Less than 10ns | |
| Input Impedance | 1MΩ,@16pf | DC gain accuracy | ±3% | ||
| Probe Attenuation | X1,X10,X100 | Measure | Automatic Measurement | Period, Frequency, Peak-to-Peak, Maximum,Minimum, RMS, Duty Cycle,Average | |
Maximum Input Voltage | X1 range< 150V,X10 range | ||||
| Horizontal | Sampling Rate Range | 1.5 Sa/s - 200MSa/s | |||
| Waveform Interpolation | (sinx)/x | Trigger | Trigger Type | Auto, Normal, Single | |
Sweep Speed Range | 10ns/div-20s/div | Trigger Edge | Rising Edge, Falling Edge | ||
| Time Base Accuracy | 20ppm | Display Mode | YT,XY | ||
| Record Length | Max 128Kbyte | Persistence Mode | Minimum, 500ms,1S, 10S, Infinite | ||

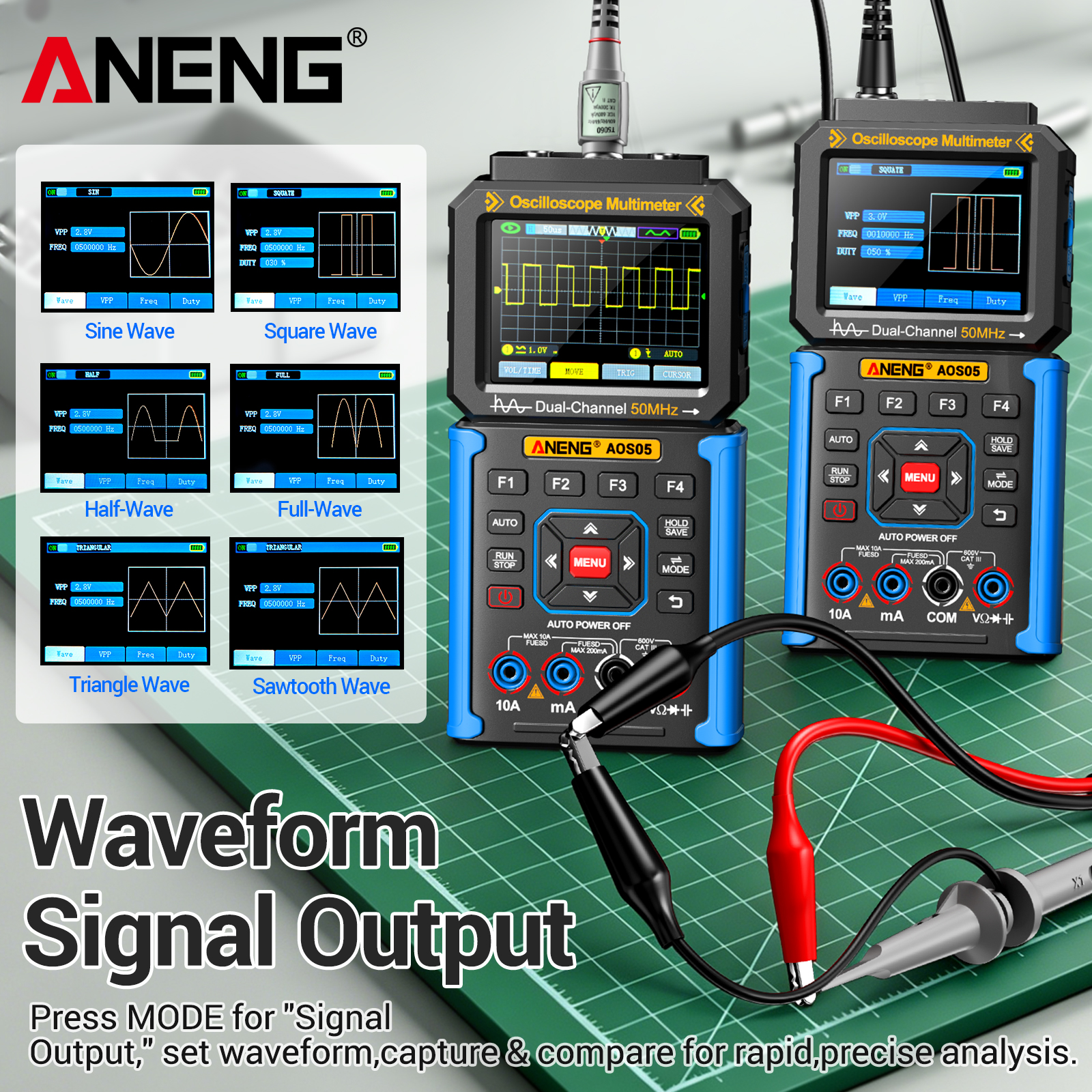

| Siqnal Generator Output | Sine Wave, Square Wave, Triangle Wave, Half-Wave, Full-Wave, Sawtooth Wave | ||||

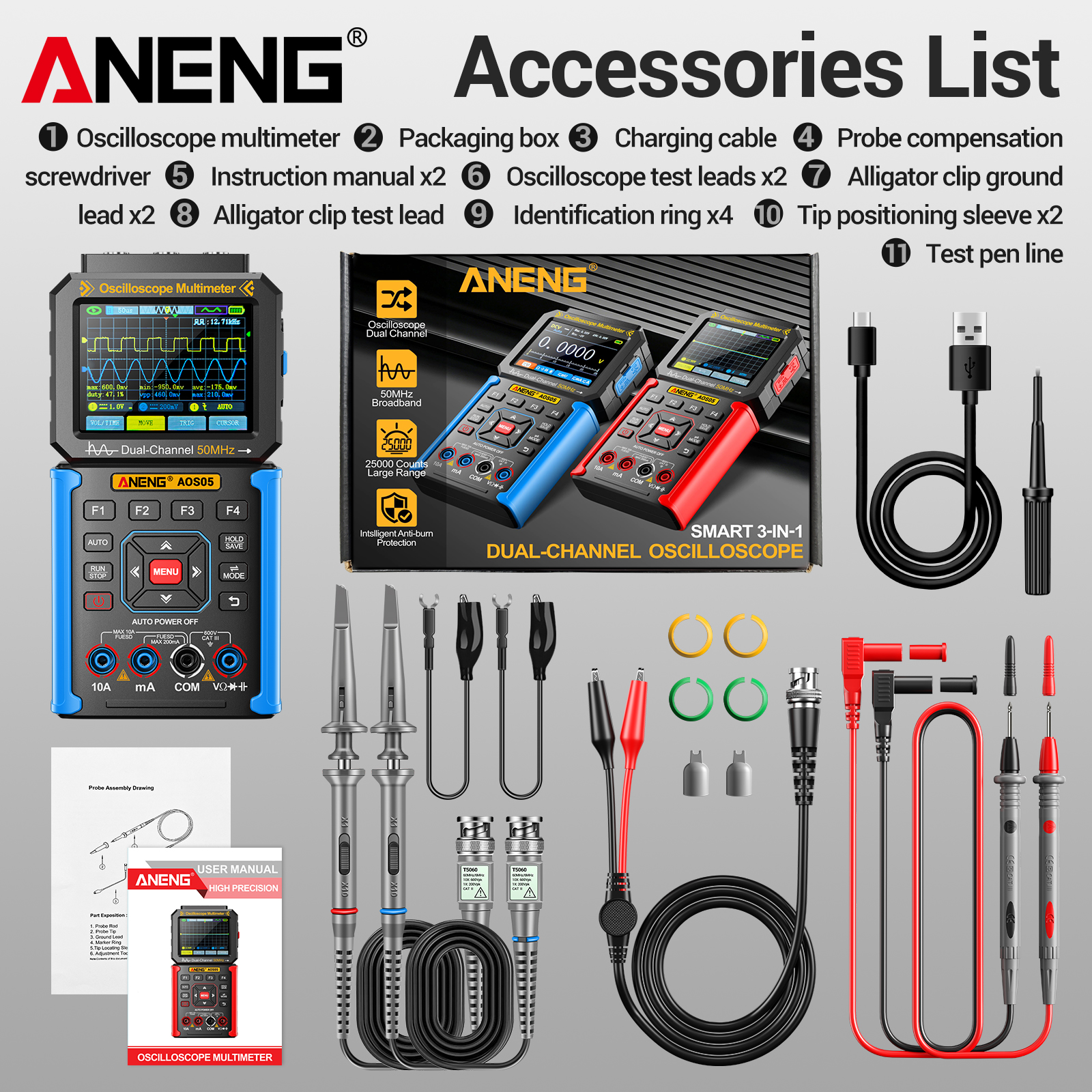

Packaging List:
1 X AOS05 Oscilloscope Multimeter
2 X Oscilloscope Test Lead
2 X Alligator Clip Ground Test Lead
2 X Positioning Sleeve
1 X Test Lead Compensation Screwdriver
2 X Test Lead
1 X USB Charging Cable
4 X Marker Ring
2 X User Manual
1 X AOS05 Oscilloscope Multimeter
2 X Oscilloscope Test Lead
2 X Alligator Clip Ground Test Lead
2 X Positioning Sleeve
1 X Test Lead Compensation Screwdriver
2 X Test Lead
1 X USB Charging Cable
4 X Marker Ring
2 X User Manual
1 X Packing Box
