(DVBS2, DVB-C, DVB-T) Combo HD Signal Meter
Model No.:
DTM-9000HD
Colour:
Black
Description
Contact Supplier
Description

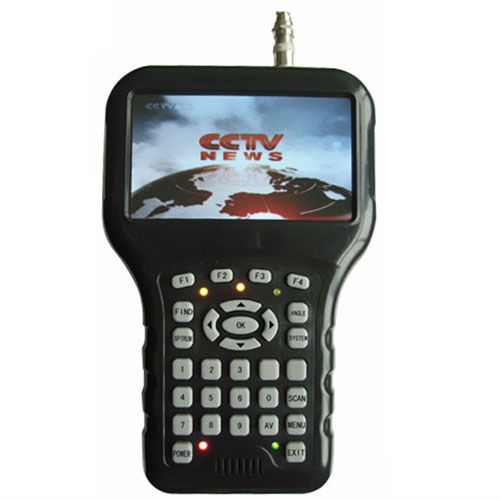

- DTM-9000HD (DVB S/S2, DVB-C, DVB-T) combo HD signal analyzer meter.
- DTM-9000HD is the latest HD portable signal analyzer meter.
- Three types of signal (DVB S/S2, DVB-C, DVB-T) can be easily achieved.
- This unit can analyze the waveform DVB signal, analyze the constellation and the spectrum, recording stream, USB services etc. auto-detect the frequency symbol rate and play channels by CI+.
- Sound and light alarm when lock signal.
- Key board backlight can view the keypad at night time.
- Digital meter for signal strength and signal quality.
- 4.3 inch TFT LCD screen (16:9), which can play the program.
- Blind scan, NIT scan.
- Constellation analyzer.
- Spectrum analyzer.
- Stream recording by ASI.
- Descrambling program by CI+.
- Recording, play recorded program.
- Capturing and browsing picture.
- 20 groups of tested data storage.
- Edit transponder, frequency, LNB type, symbol rate, QAM, etc.
- Auto calculate angle of AZ EL.
- Upgrade S/W, parameters by PC, USB.
- Fast charge Li-ion battery (1950mA), can last around 3 hours.
- Easy to carry.
- 3 in 1 combo: DVB-S/S2, DVB-C, DVB-T.
- Input frequency: 920~2150MHz (DVB-S/S2), 47~865MHz (DVB-C, DVB-T).
- Input level: -80~-20dBm.
- Input impedance: 75Ohm.
- Power out: 13/18V (DVB-S/S2), 5/12 (DVB-T), 30V x (DVB-C).
- Ku/C-band: selectable.
- Min. level in: about 35dBuV (noise).
- Max. level in: about 90dBuV.
- Display of signal level: (analogue) dB on LCD/monitor.
- Display of signal level: (digital) C/N, BER, FEC, MER.
- Audio and video input/output: S-video, HDMI.
- Easy satellite manager: edit, add and delete.
- 22kHz tone: on/off/auto.
- DiSEqC: 1.0, 1.1, 1.2, USALS.
- Power-supply: 100-240V/50/60Hz 14.5V, 1.5Amp.
