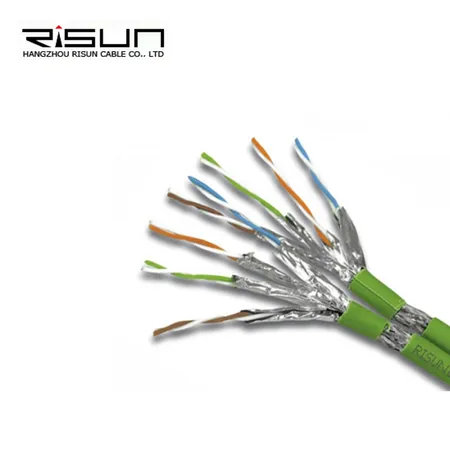

Dual S/FTP Cat7 LSZH
US $0.90 - US $1.20
Production Lead Time:
20 day(s)
Shipping Method:
by sea
Description
Contact Supplier
Description
DESCRIPTION
Manufactured according to ISO / IEC 11801, EIA / TIA-568-C.2, EN-50173.
TECHNICAL SPECIFICATIONS
| Conductor | Solid bare copper : 0,57±0.01 mm | |
| Insulation | Foam skin polyethylene : 1.38±0.05 mm | |
| Identification of pairs | ||
| 1 pair | Blue - White / Blue | |
| 2 pair | Orange - White / Orange | |
| 3 pair | Green - White / Green | |
| 4 pair | Brown - White / Brown | |
| Twisting | 2 cores to the pair | |
| Pair screen | 4 pairs Aluminum foil | |
| Braid | Tinned copper wire ≧40% | |
| Ripcord | Yes | |
| Sheath | LSZH | |
| Color | Green (other colors are available upon request) | |
| Bending radius | ≥ 8 x Diameter (mm) Installation | |
| Operating temperature | -15℃—+70℃ | |
ELECTRICAL CHARACTERISTICS
nº Pairs.x Ф 4x2x23AWG
Conductor Resistance max.95 Ω/km
DC Conductor Resistance Unbalance max.2%
Unbalanced-to-ground capacitance max. 330 pF / 100m
Velocity of Propagation 74%
Impendence (1-100MHz) 100±15 Ω
(100-250MHz)100±18 Ω
(250-600MHz) 100±25 Ω
| Frequency (MHz) | Return Loss ≧dB | ATT ≦dB/100m | Next ≧dB | DELAY ≦ns100m | PS NEXT ≧dB | EL FEXT ≦dB/100m | PS EL FEXT ≧dB/100m |
| 4 | 23.0 | 5.6 | 78.0 | 552.0 | 75.0 | 78.0 | 75.0 |
| 10 | 25.0 | 8.8 | 78.0 | 545.4 | 75.0 | 74.0 | 71.0 |
| 16 | 25.0 | 11.1 | 78.0 | 543.0 | 75.0 | 69.9 | 66.9 |
| 20 | 25.0 | 12.4 | 78.0 | 542.0 | 75.0 | 68.0 | 65.0 |
| 31.25 | 23.6 | 15.6 | 78.0 | 540.4 | 75.0 | 64.1 | 61.1 |
| 62.5 | 21.5 | 22.3 | 75.5 | 538.6 | 72.5 | 58.1 | 55.1 |
| 100 | 20.1 | 28.5 | 72.4 | 537.6 | 69.4 | 54.0 | 51.0 |
| 200 | 18.0 | 41.2 | 67.9 | 536.5 | 64.9 | 48.0 | 45.0 |
| 250 | 17.3 | 46.5 | 66.4 | 536.3 | 63.4 | 46.0 | 43.0 |
| 300 | 17.3 | 51.3 | 65.2 | 536.1 | 62.2 | 44.5 | 41.5 |
| 600 | 17.3 | 75.1 | 60.7 | 535.5 | 57.7 | 38.4 | 35.4 |
APPLIANCE
Cable for data transmission in structured cabling networks (LAN), horizontal and secondary facilities.
PACKING
100 m / box
200 m / wooden drum
305 m / wooden drum
500 m / wooden drum
FAQ:
Q:How do you ensure cables quality?
A:Each cable undergoes physical testing in accordance with ISO/IEC 11801 and TIA-568-C.2 standards. Our team monitors every stage of production, with QC inspecting each step to ensure quality.
Q:Are you a manufacturer or trading company?
A:We are a factory.
Q:What is your delivery time?
A:Typically 5-10 days if in stock; 20-30 days for custom orders, depending on quantity.
Q:Do you have an MOQ?
A:Yes, normally 10 km per item.
Q:Do you provide samples? Are they free?
A:Yes, samples are free, but freight charges apply.
Q:How do I place an order for cables?
A:Share your requirements or application.→We provide a quote.→Confirm the sample and place a deposit.→We start production.
Q:Can I print my logo on the cables?
A:Yes, inform us before production.
Q:What are your payment terms?
A:Orders ≤ 60 km: 100% upfront.
Orders ≥ 60 km: 30% deposit, balance before shipment.
Please contact us for more information and our quotation!
