Products introduction

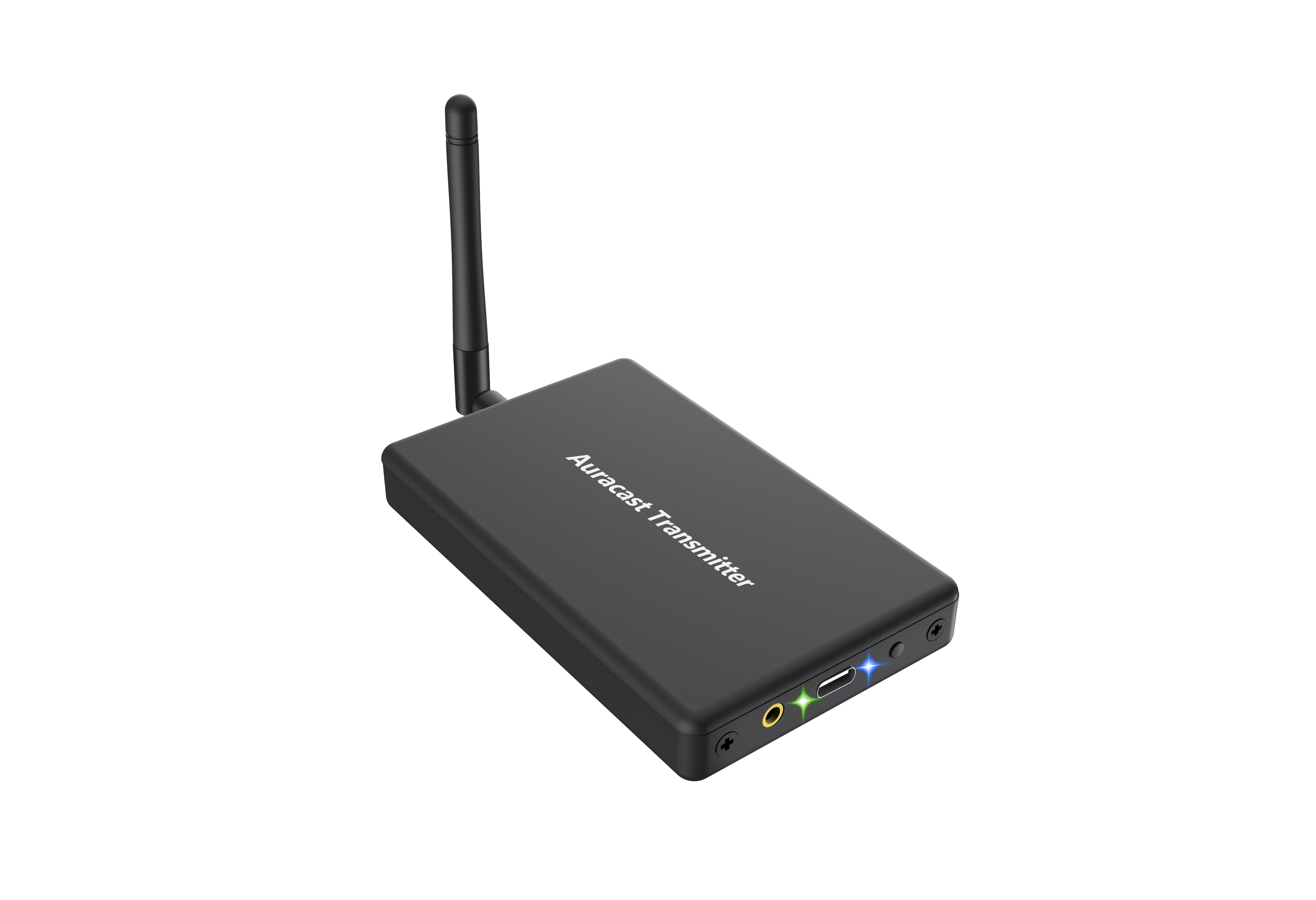

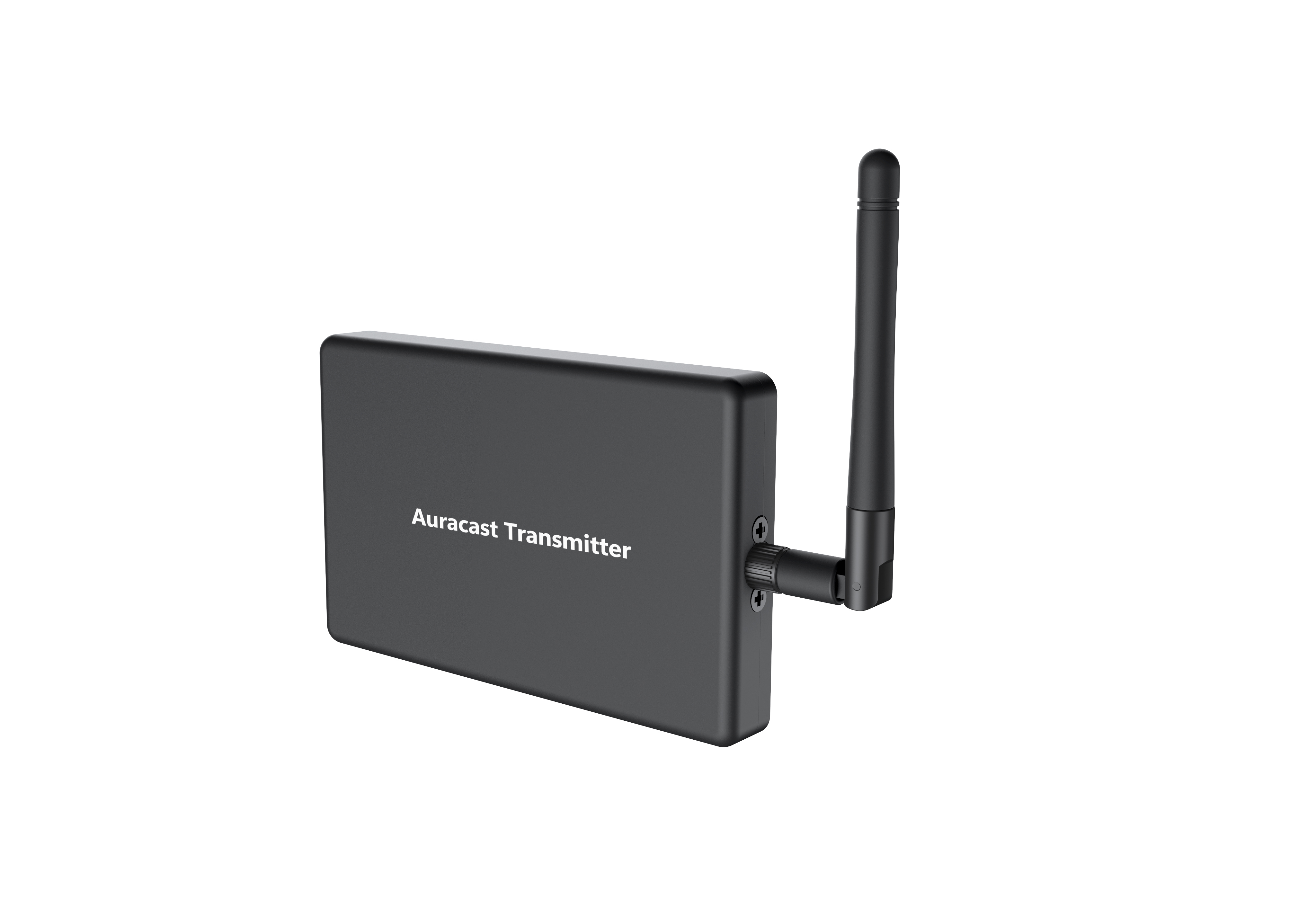

TRAN01R is a cutting-edge dual-mode Bluetooth 5.4 LE audio dongle that leverages the

advanced Qualcomm QCC3086 chipset. This dongle is optimized for gaming, video, and

enterprise applications.

The TRAN01 Bluetooth dongle is built upon the QCC3086 WLCSP chipset, which integrates

a single chip radio and baseband IC for Bluetooth 2.4 GHz systems. This fully

qualified single-chip dual-mode Bluetooth v5.4 system provides a complete 2.4 GHz

Bluetooth solution. By adopting the QCC3086 chipset, LX offers a powerful and

versatile dongle to unlock the full potential of LE Audio and Snapdragon Sound,

delivering exceptional wireless audio experiences across various applications and

devices.

The innovative TurboCast™ technology, which supports music sharing and complies with

LE Audio's Auracast standard, has a broadcast delay of as low as 20ms and can share

48K 24-bit HD stereo music.

Highlights

● Qualified to Bluetooth v5.4 specification.

● Ultra-low power

● Support Bluetooth® LE Audio

● Lossless and High-performance 24-bit stereo audio

● TurboCast™ technology

● Input interfaces: USB 2.0, Aux 3.5

● A2DP Codec: SBC, aptX™, aptX Adaptive, aptX LL and aptX HD Audio

● Voice Codec: mSbc, aptX Voice

● LE Codec: LC3

General specification

BT Version：V5.4

Bluetooth features：A2DP, HFP, HSP, AVRCP, SPP, LE Unicast, LE

Broadcast

Size：105*65*15mm

Distance： >30M

LED：Blue, Red

Codec：SBC, AAC, APTX, APTX HD, APTX Adaptive,LC3, LDAC (optional)

TurboCast™Support

Audio input：USB 2.0, Aux 3.5

Charging type：USB Type-C

Control interface：Physical key controls

PIN code：0000

Model name：TRAN01R

Technical specification

Button: Power key

LED: Blue and Red

Chipset: QCC3086

External storage: NO

Charging type: USB Type-C

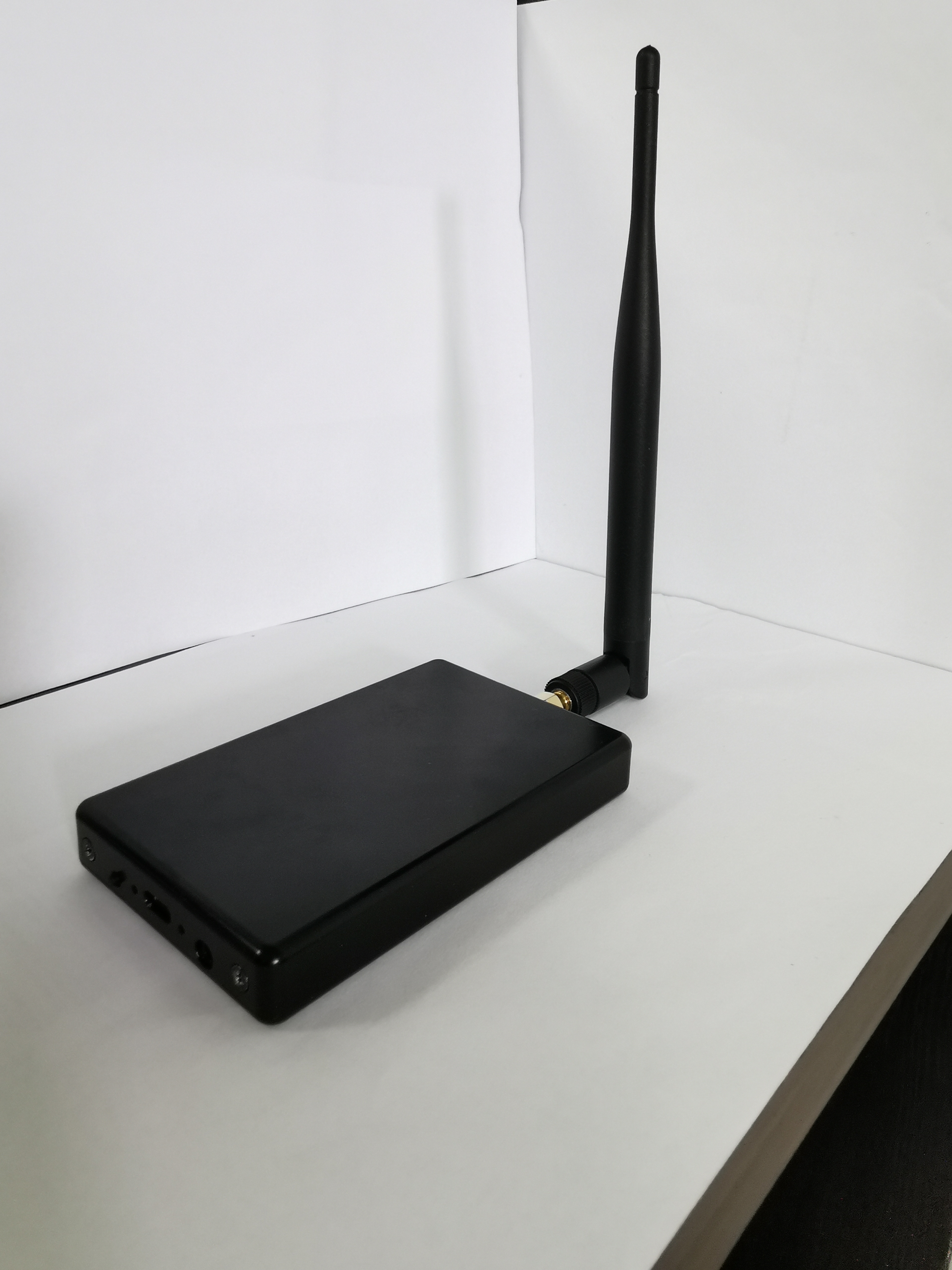

Antenna: SMA external antennas, 50 ohms

Crystal: 2016 16M 9PF +-10PPM

Work temperature range: -10 to +55 ℃

Storage temperature range: -20 to 60 ℃

Charging: 5V+/-0.25V 1A
