LED Driver Single Output 18-35W / 60-150W(LPV Series)
Production Lead Time:
7 day(s)
Weight:
0.4kg
Model No.:
WSP-LPV
Brand:
OEM
Colour:
WHITE
Size:
162.5*42.5*35mm
Port:
shenzhen
Type of Payment:
T/T
Minimum Order Quantity:
100
Power:
Medium Power
Fitting:
Linkable Fitting
Strip light:
Flexible
Certification:
CE, UL
Warranty:
2years
Output Voltage(V):
12-36V
Input Voltage(V):
90-264V
Description
Contact Supplier
Description

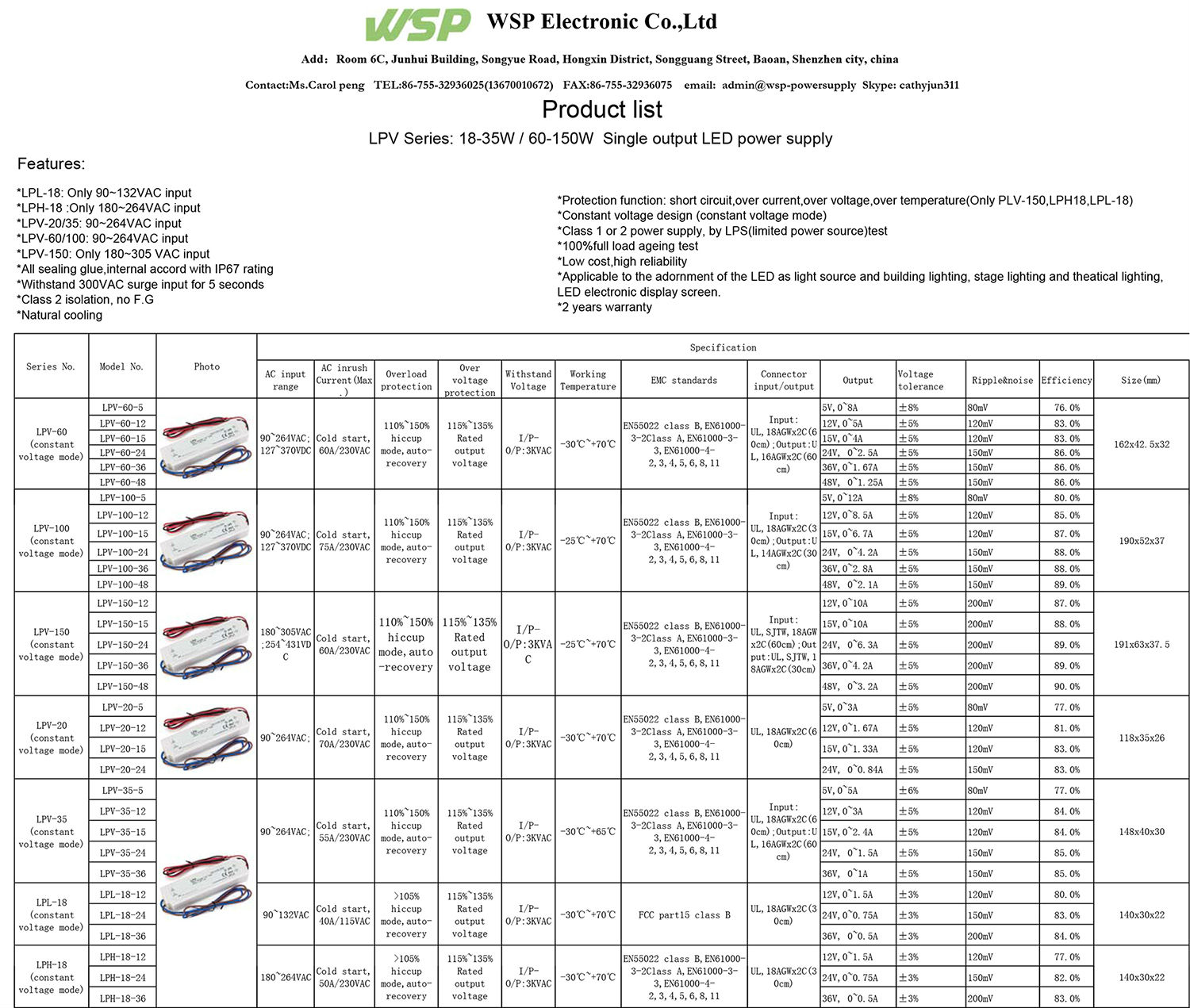

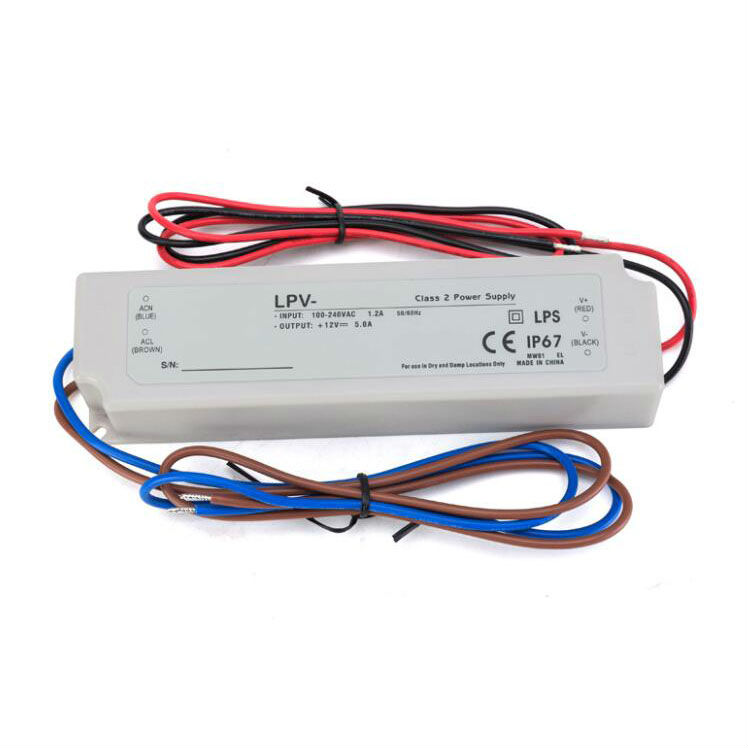

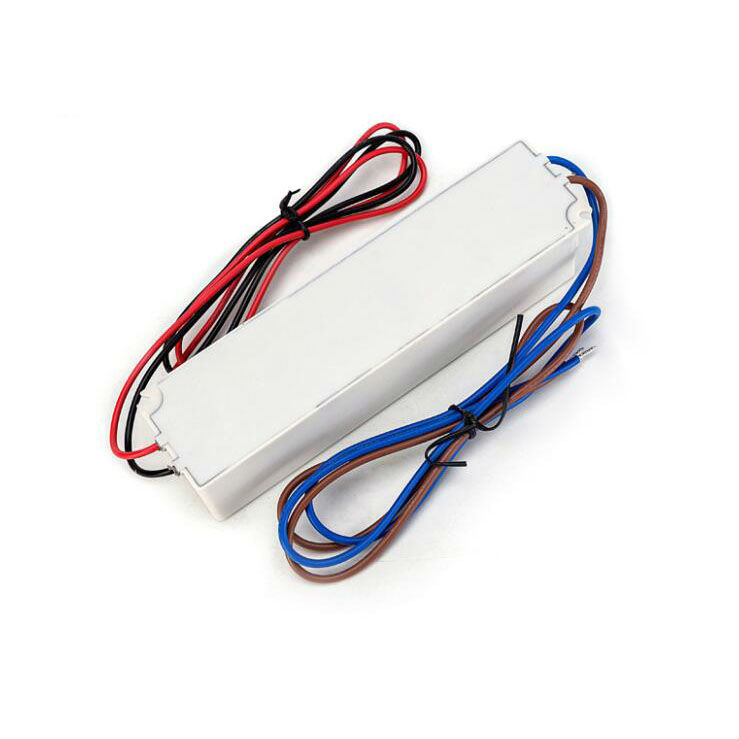

LED Driver Single Output 18-35W / 60-150W(LPV Series)
*LPL-18: Only 90~132VAC input
*LPH-18 :Only 180~264VAC input
*LPV-20/35: 90~264VAC input
*LPV-60/100: 90~264VAC input
*LPV-150: Only 180~305 VAC input
*All sealing glue,internal accord with IP67 rating
*Withstand 300VAC surge input for 5 seconds
*Class 2 isolation, no F.G
*Natural cooling
*Protection function: short circuit,over current,over voltage,over temperature(Only PLV-150,LPH18,LPL-18)
*Constant voltage design (constant voltage mode)
*Class 1 or 2 power supply, by LPS(limited power source)test
*100%full load ageing test
*Low cost,high reliability
*Applicable to the adornment of the LED as light source and building lighting, stage lighting and theatical lighting, LED electronic display screen.
*2 years warranty
*LPL-18: Only 90~132VAC input
*LPH-18 :Only 180~264VAC input
*LPV-20/35: 90~264VAC input
*LPV-60/100: 90~264VAC input
*LPV-150: Only 180~305 VAC input
*All sealing glue,internal accord with IP67 rating
*Withstand 300VAC surge input for 5 seconds
*Class 2 isolation, no F.G
*Natural cooling
*Protection function: short circuit,over current,over voltage,over temperature(Only PLV-150,LPH18,LPL-18)
*Constant voltage design (constant voltage mode)
*Class 1 or 2 power supply, by LPS(limited power source)test
*100%full load ageing test
*Low cost,high reliability
*Applicable to the adornment of the LED as light source and building lighting, stage lighting and theatical lighting, LED electronic display screen.
*2 years warranty
