LED IP54 COB downlight
Share this page
Production Lead Time:
7 day(s)
Model No.:
DL229
Colour:
white, black
Port:
Shenzhen
Type of Payment:
T/T, L/C, Pay Pal
Minimum Order Quantity:
1 carton
Voltage(V):
AC200-240V
Certification:
RoHS, CE, SAA
Wattage(W):
10W 12W 18W 25W 33W 42W
Body Material:
Polycarbonate (PC), Aluminum
Is Dimmable:
Yes
Power Source:
AC
Style:
Modern
Install Style:
Embeded
Description
Contact Supplier
Description

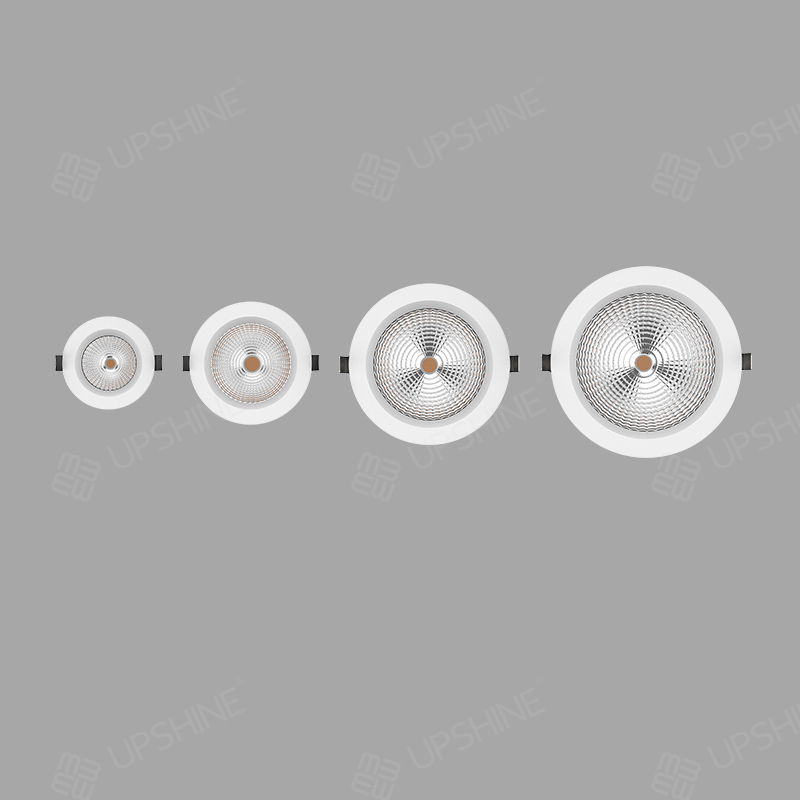

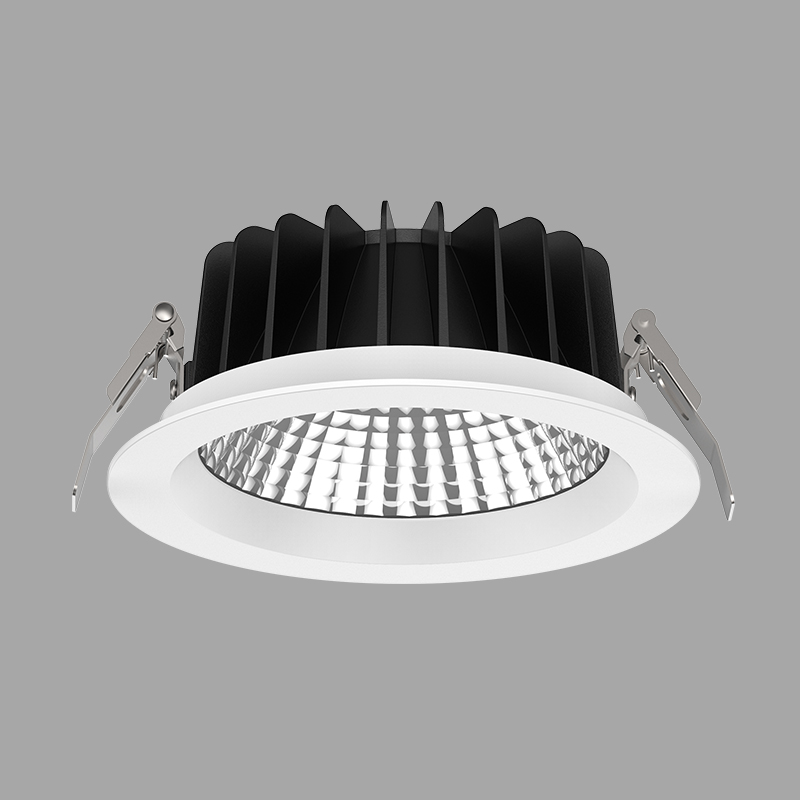

 LED IP54 COB downlight (DL229)

24°, 36°, 45°, 60° Beam angle

IP54,

DIM to Warm,  CRI90,CRI90, CRI97 2700K 3000K 4000K 5000K

Size: diameter110*53mm(10W 12W), Cutout90-95mm diameter145*65mm(12W 18W 25W), Cutout120-130mm

diameter190*75mm(18W 25W 33W), Cutout160-170mm

diameter225*87mm(18W 25W 33W 42W), Cutout200-210mm

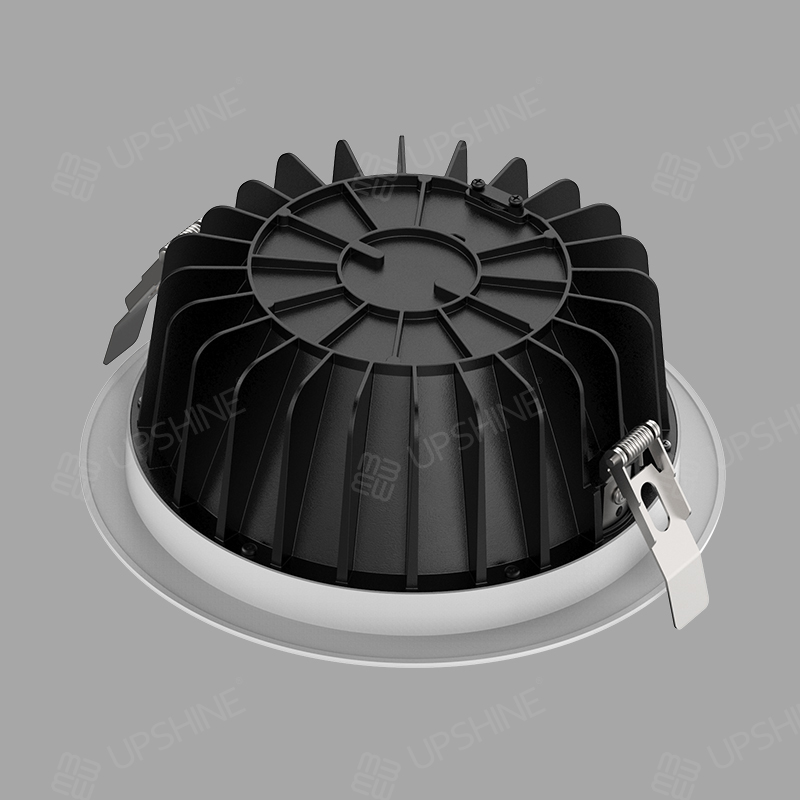

DL229 COB downlight is unique designed with reflector and COB high power LED chip. ADC12 Aluminum profile provides excellent thermal dissipation. Short heatsink designed for any ceiling

installations. Isolated driver solution both in dimmable and non-dimmable version achieves great dimming compatibility with worldwide brand dimmers


- Up to 70% energy saving compared to standard CFL

- Long lifetime of 50,000 hours

- Triac dim, 0-10V dim, DALI dim

- 90-210mm cutout

- CCT: 2700K 3000K 4000K 5000K

- No UV/IR light

- Environment friendly, without Mercury or any other hazardous substances


Application Areas:

It is designed for general lighting applications in office, supermarket, shop, school, hotel, etc. It is also widely used for public areas, such as stairway, lobby, reception, corridors etc.
