LED Retrofit
Production Lead Time:
21 day(s)
Brand:
Ausllast
Colour:
White
Size:
As per client request
Port:
Shenzhen
Type of Payment:
30% deposit
Minimum Order Quantity:
300
Certification:
CE, EMC, LVD, SAA, C-tick
Wattage (W):
24
Warranty:
3 year
Body Material:
Aluminum
Is Dimmable:
Yes
Luminous Flux (lm):
120
Beam Angle (Degree):
180
Power Source:
AC
Customized:
Yes
Voltage (V):
200-240v
Description
Contact Supplier
Description

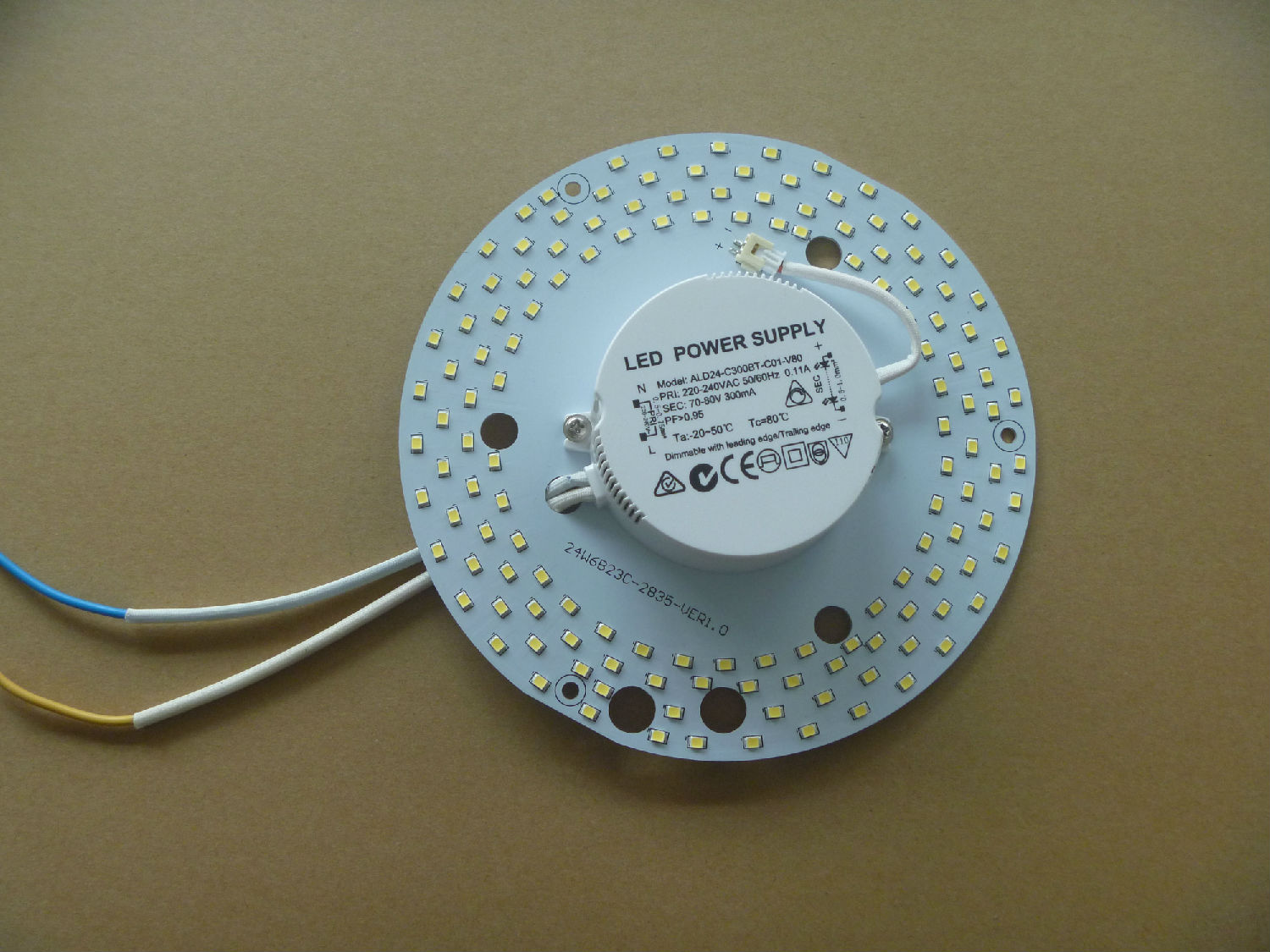

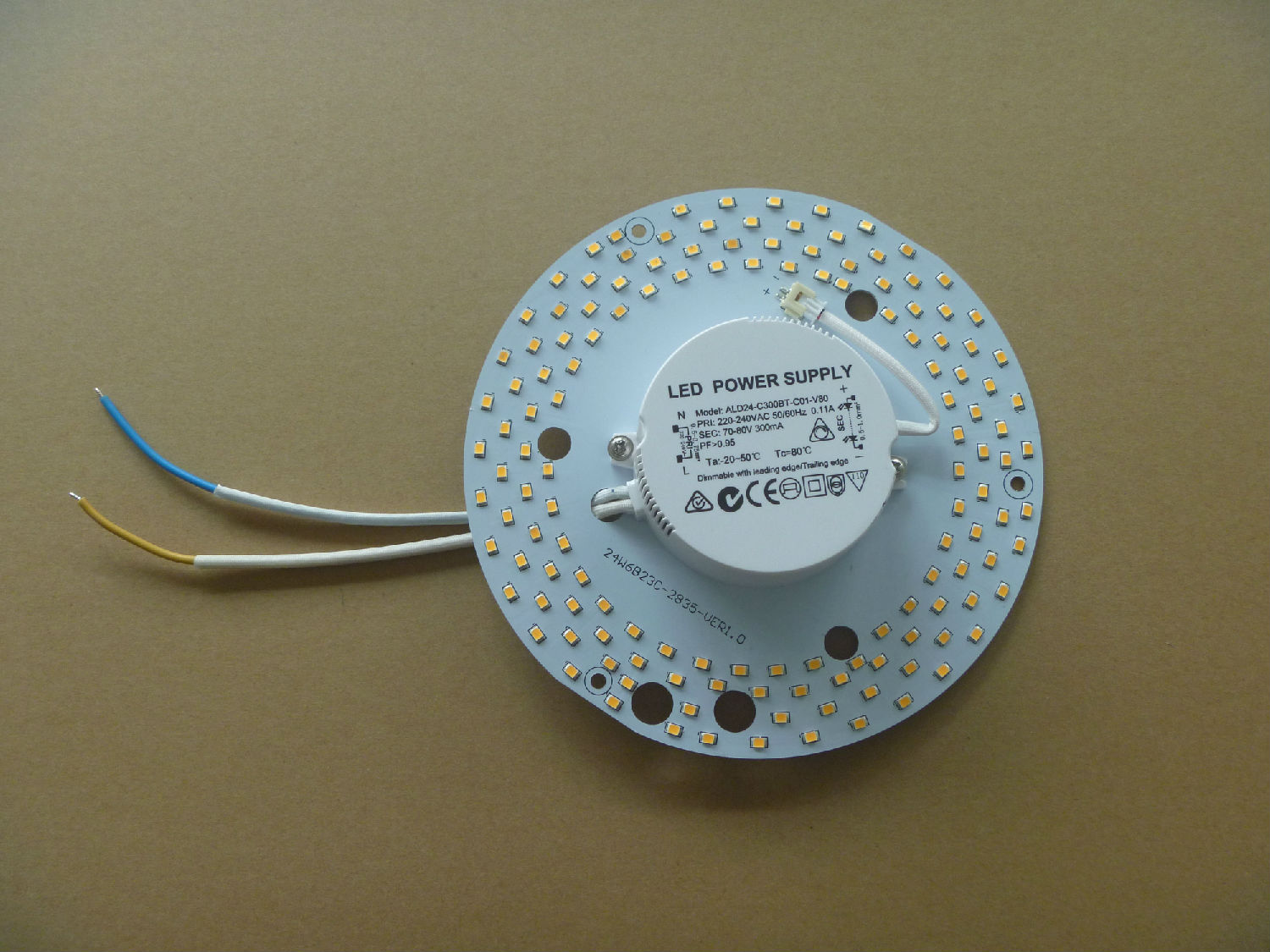

- LED retrofit with up to 60% energy saving
- Materials: 1.2mm aluminum plate thickness, constant current driver, LM80 certified LED beads. Commercial durability level fittings

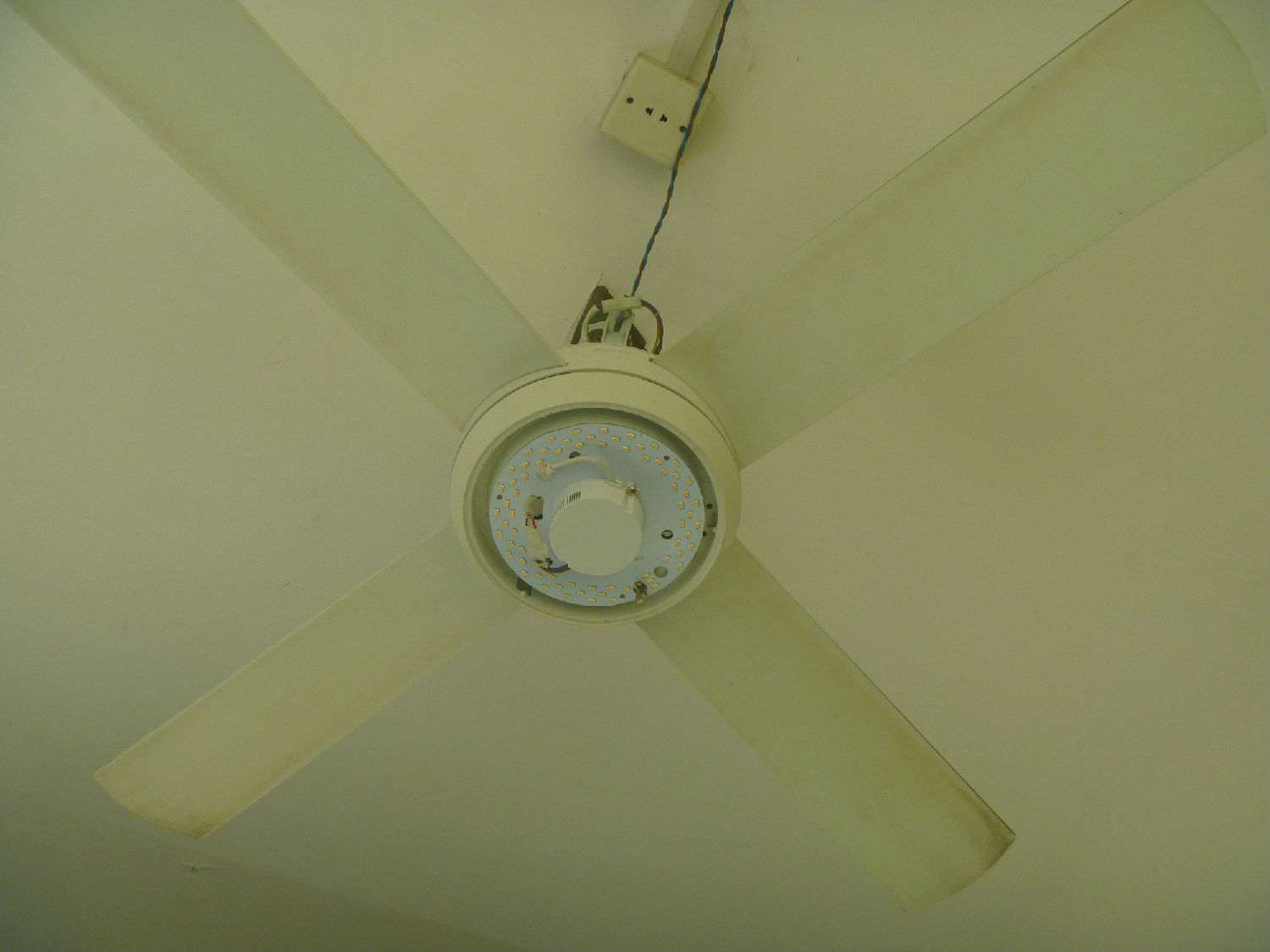

- Applicable to lamps: Ceiling lamps and fan lamps
- Mounting way: Direct replacement for the traditional CFL & circular fluorescent lamp
- LED aluminum plate size: As per client request
- Efficacy (single LED): 140LM/W
- Efficacy (SSL): 120LM/W
- Driver type: Constant current LED driver
- Driver efficiency: 92%
- PF: 0.95
- Input voltage: 200-240VAC+/-10%
- Output voltage: 70-80VDC
- Output current: 300mA
- LED type: 2835 0.2W Hongli Tronic
- LEDs Quantity: 138pcs
- Beam angle: 120°
- Operating LED junction temp in SSL: 53℃
- CRI: 82
- Life at nominal operating temp: 50000 hours
- Warranty: 3 years
- Colour temp: As per client request
- Safety Standard: IEC/AS/NZS 61347.2.13:2013; 61347.1:2002
- EMC Standard: EN/AS/NZS 55015:2013; 61547:2009; 61000-3-2:2006; 61000-3-3:2003
- Driver certificate: CE-LVD, CE-EMC, SAA, C-tick
- Available on request: 12W, 18W, 28W and 35W
- Available on request: dimmable, Non flicker
