LED UGR<19 linkable design lamp (DB66)
Production Lead Time:
7 day(s)
Model No.:
DB66A, DB66B
Colour:
white, black
Port:
Shenzhen
Type of Payment:
T/T, L/C, Pay Pal
Minimum Order Quantity:
1 carton
Voltage(V):
AC200-240V
Certification:
CE, SAA, RoHS
Wattage(W):
36W 42W 50W 60W
Body Material:
Chromium, Aluminum, Polycarbonate (PC)
Is Dimmable:
Yes
Power Source:
AC
Style:
Modern
Install Style:
Flush Mount
Applicable:
Commercial, Hotel Hall
Body Colour:
White
Description
Contact Supplier
Description
60°、140° Beam angle，up and down,up 30%,down 70%,
IP20, UGR<19, DIM,DALI,0-10V
PF0.9,CRI80
3000K 4000K 5000K 5700K
Size: L1204xW56xH75mm
L1504xW56xH75mm

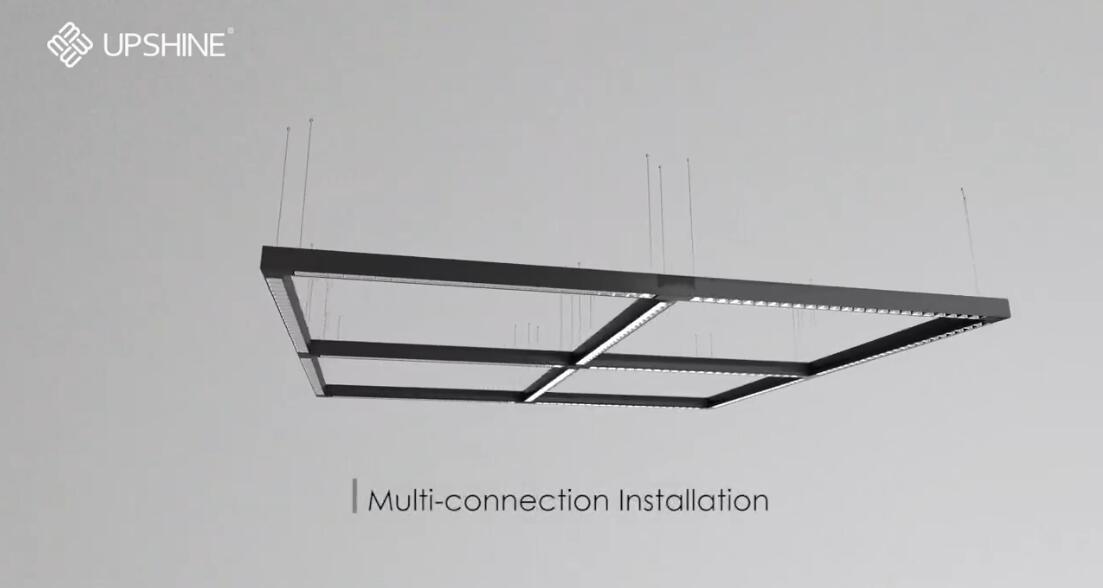

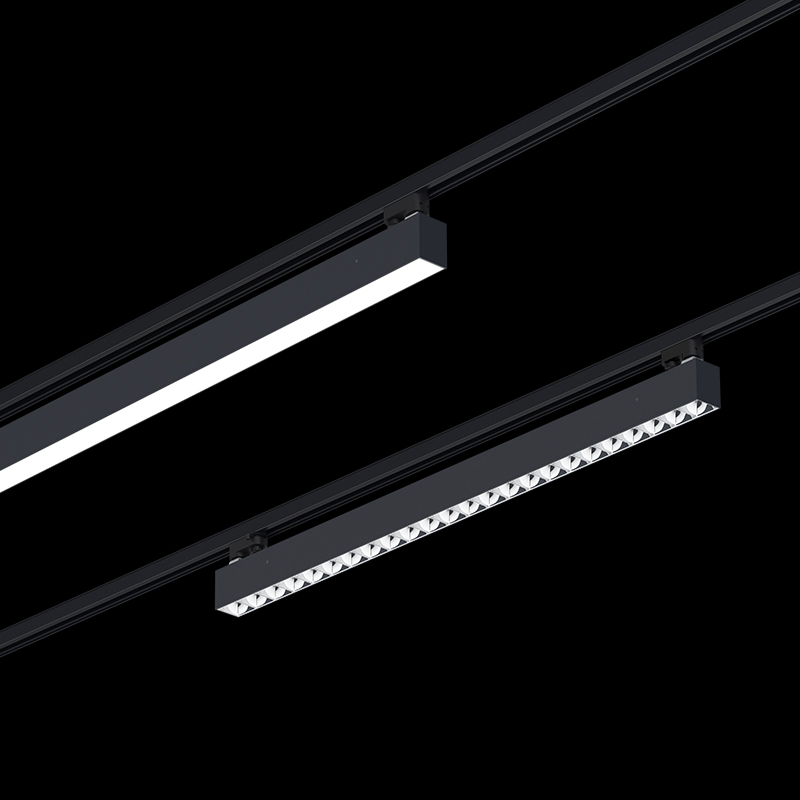

The DB66 is a new linkable design light. Adopt high lumen efficiency SMD LED with even light output, the aluminum light body providing excellent thermal management. Pendant with steel rope, pendant with a round ceiling plate, surface mounted, wall-mounted, recessed and track installation are all available. With Corner/ Cross/ Straight/ T shaped connectors for multiple shape design.
DB66A Features:

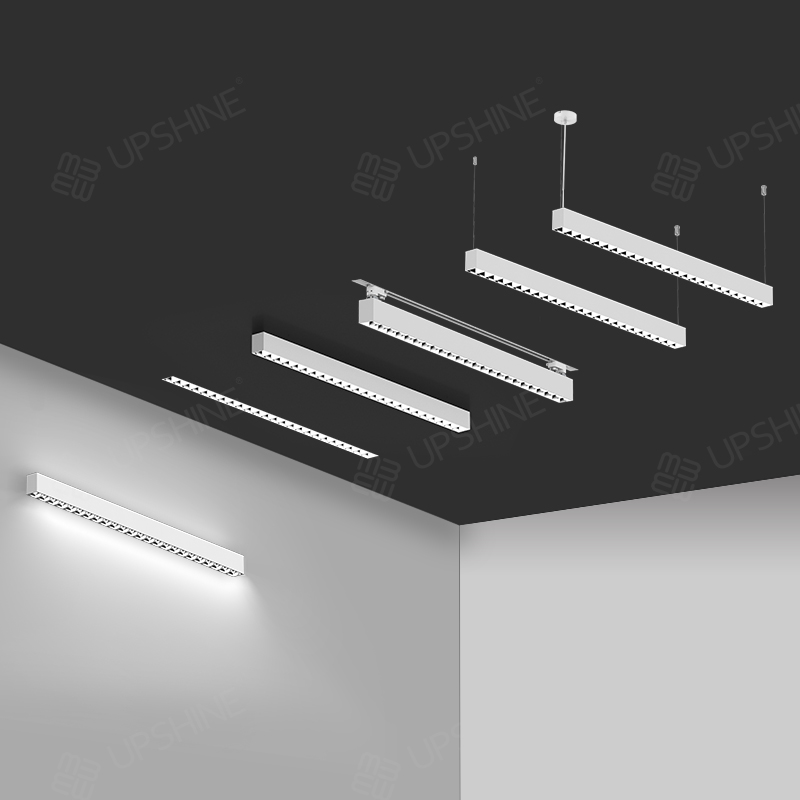

1. Multiple installations: Pendant/surface mounted/wall-mounted/recessed/Track.
2. Modular design with convenient replacement.
3. High lumen efficiency,110lm/w.
4. Interchangeable CCT(3000/4000/5700k) with a slide switch.
5. DALI, 0-10V dimming for options.
6. With emergency function available.

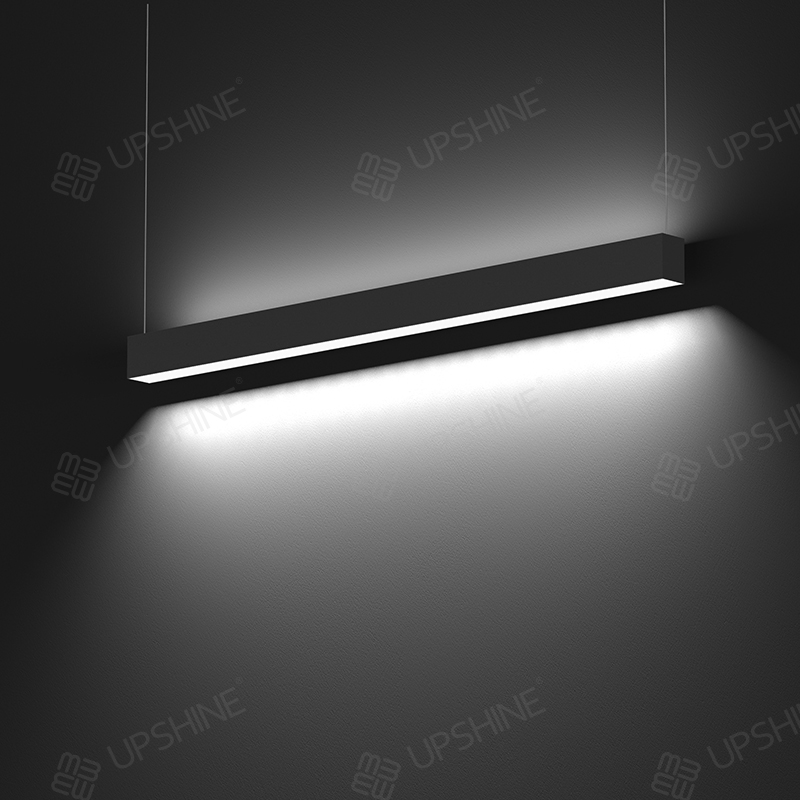

7. Up and down light effect for wall mount and pendant installation.

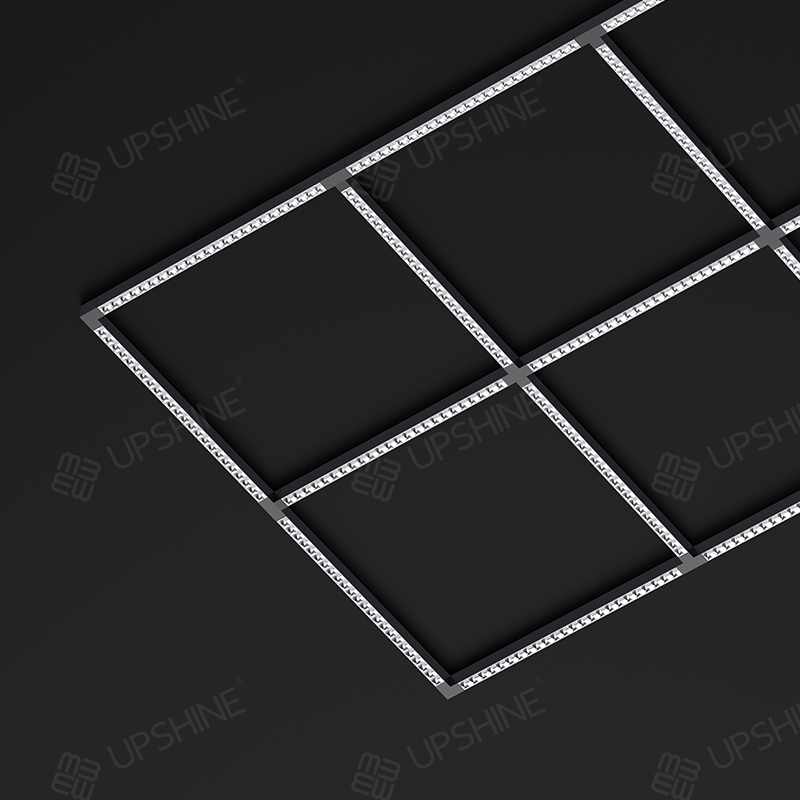

8.With Corner/ Cross/ Straight/ T shaped connectors for multiple shape design.
DB66B Features:
1. Multiple installations: Pendant/surface mounted/wall-mounted/recessed/Track.
2. Modular design with convenient replacement.
3. High lumen efficiency,110lm/w.
4. Anti-glare design, UGR<19.
5. DALI, 0-10V dimming for options.
6. With emergency function available.
7. Up and down light effect for wall mount and pendant installation.
8. With Corner/ Cross/ Straight/ T shaped connectors for multiple shape design.
Application Areas:
It is mainly used for traditional suspended installation such as workshops, utility rooms, garages, and more.
