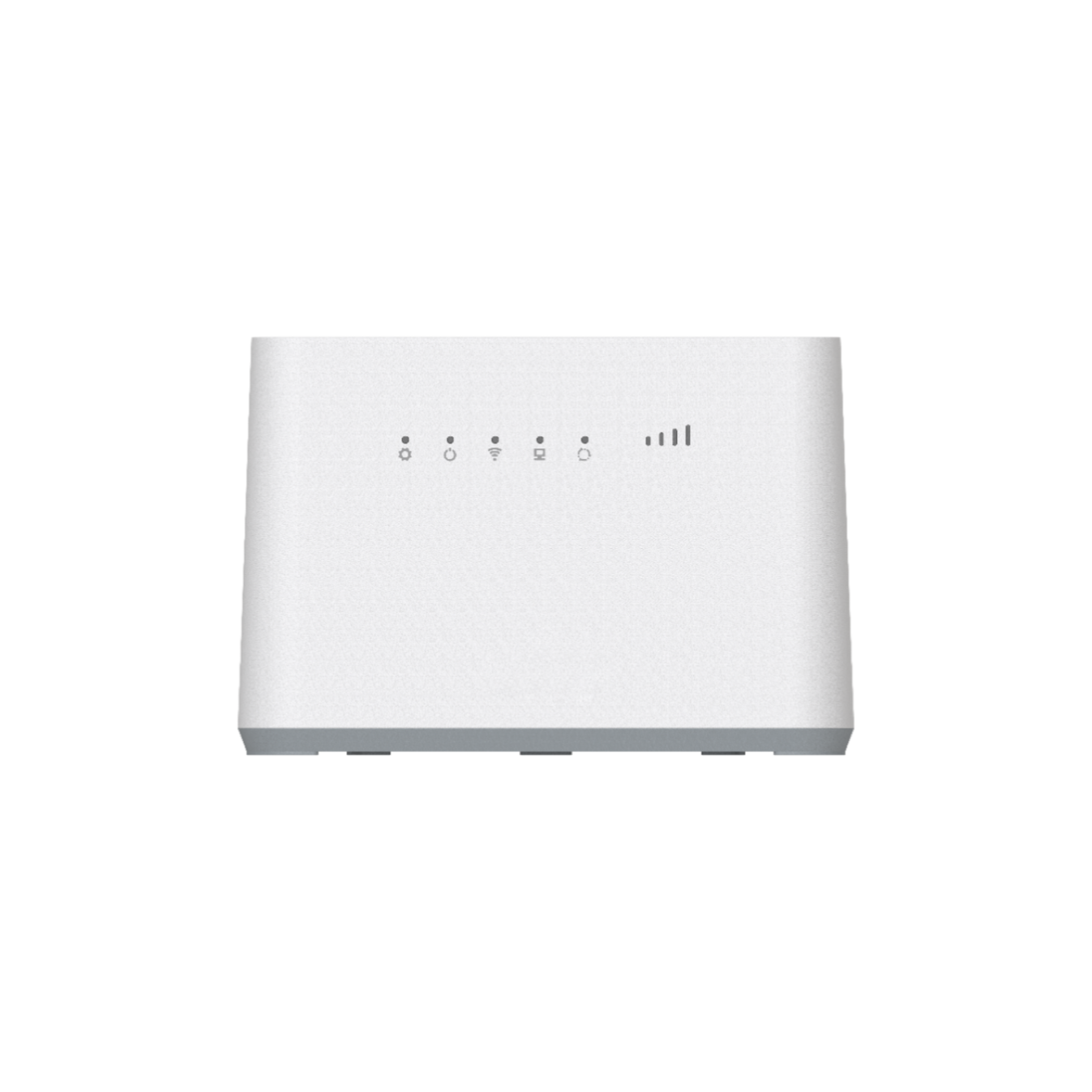

LTE CAT4 WiFi Router WAN LAN

Production Lead Time:

60 day(s)

Shipping Method:

Air shipment, Sea shipment, Express shipment

Brand:

ODM/OEM

Model No.:

KL188(18)

Size:

165*110*45mm

Weight:

1.5KGS

Feature:

Support SIM card

Customised:

Yes

Power Source:

AC Power

Material:

ABS

Application:

Indoor, office, house, hotel

Description

Certification & Document

Contact Supplier

Parameter		Index
CPE	Size	16511045mm
	Weight	About 393g
	Case Material	ABS
	Case color	White
4G parameter	Band	H70:3G:B1/5/8，TDD:B38/40/41, FDD:B1/3/5/7/8/20/28 H77:3G:B2/4/5/8, TDD:38/40/41, FDD:2/4/5/7/8/28
	Protocol stack	TCP/UDP/PPP/FTP/HTTP/NTP/PING/Q MI/NITZ/HTTPS/SMTP/FTPS/SMTPS/SS L/FILE
	Speed class	150Mbps (DL)/50Mbps (UL)
	Speed class	CAT4
WiFi performance	WIFI network protocol	802.11 a/b/g/n/ac/ax，2.4G，Supports up to 10 users accessing at the same time
WiFi performance	WiFi transmission rate	229Mbps
System parameters	RAM	256Mb
System parameters	ROM	128Mb
Antenna	4G Antenna	Main antenna ,diversity antenna
Antenna	WiFi Antenna	MIMO1*1
Port	Key	RESET Key
	RJ45	LAN*1 10Mbps/100Mbps Adaptive
	CARD	Micro-SIM card
Indicator light	Indicator light	STATUS、POWER、WiFi、LAN、 Internet、4*Signal
Power supply	Power Adapter	Type-C DC 5V/1A
Other	Working humidity	0～90％
	Atmospheric pressure	86～106Kpa
	Operating temperature	0℃～+45℃
	Storage temperature	-40℃～+70℃

Company Profile

Founded in 1996
100+ R&D engineers, hundreds of patents
Self-owned SMT & Assembly lines
Leading designer and manufacturer of FWPs, Android desk phones, CPEs, Outdoor payphones, Electronic student ID cards, Landline phones
Long-term partnership with China Mobile, China Unicom and China Telecom
Products being shipped to more than 50 overseas channel buyers and operators
