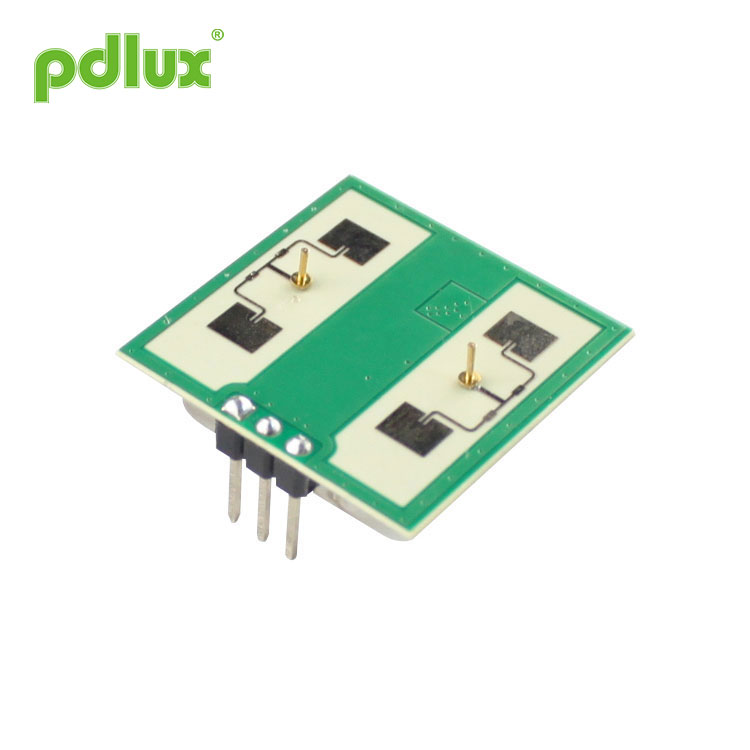

PDLUX PD-V21360 New 24.125GHz Microwave Radar Sensor Module Distance Sensor for Security Domain Behavior
US $1.50 - US $2.50
Production Lead Time:
20 day(s)
Description
Contact Supplier
Description
| Parameter | Notes | Min | Typ | Max | Units |
| Supply Voltage | Vcc | 3.0 | 5.0 | 5.25 | V |
| Current Consumption | Icc | 20 | 35 | 38 | mA |
| Operation Mode | Powered by PWM, it can control the working current at 3-15mA | ||||
| Pulse Width | Tpulse | 10 | μs | ||
| Operating Temperature | Top | -30~+85 +100（Max.） | ℃ | ||
| Storage Temperature | Tstg | -10 | +60 | ℃ | |
| Stable Time | ＜5 | μSec | |||
| Frequency Setting | f | 24.000 | 24.125 | 24.25 | GHz |
| Radiated Power (EIRP) | Pout | ＜2.0 | ＜2.5 | ＜3.0 | mW |
| Storage Ambient Humidity | 45%~65% | RH | |||
