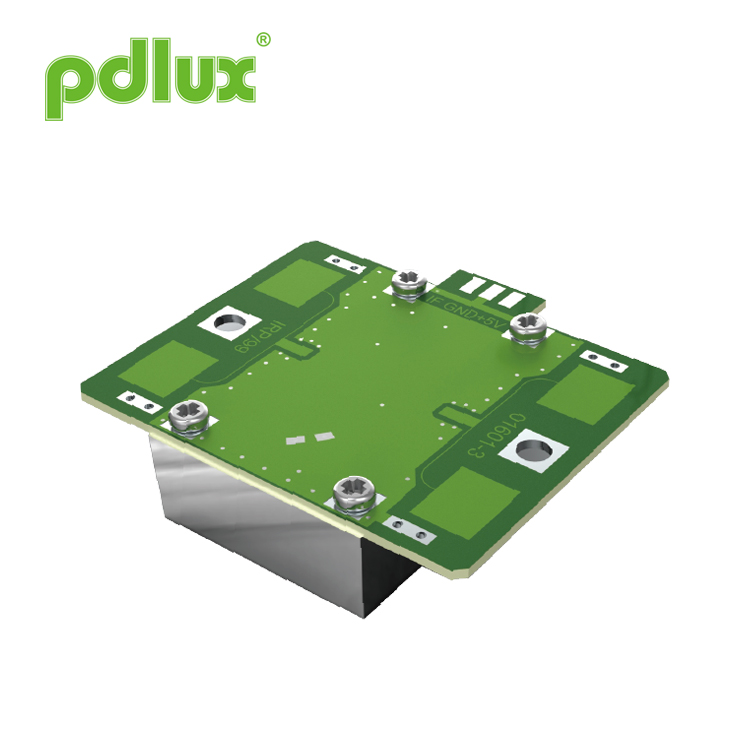

PDLUX PD-V9 Microwave Motion Sensor X-Band Bi-Static Doppler Transceiver Module Security Domain Behavior Position Sensor
US $1.50 - US $2.50
Production Lead Time:
20 day(s)
Description
Contact Supplier
Description
| Parameter | Notes | Min | Typ | Max | Units |
| Frequency Setting | 1 | 10.52 | 10.525 | 10.53 | GHz |
| Radiated Power (EIRP) | 1 | 2.0 | 2.5 | 3.0 | mW |
| Settling Time | 5 | 10 | 20 | μSec | |
| Received Signal Strength | 2 | 150 | 200 | 250 | μVp-p |
| Noise | 3 | 4 | 4.5 | 5 | mVrms |
| Supply Voltage | 4.75 | 5.00 | 5.25 | V (impulse power source) | |
| Current Consumption | 10 | 12 | 14 | mA | |
| Pulse Repetition Frequency | 4 | 1.8 | 2.0 | 3.0 | KHz |
| Pulse Width | 4 | 10 | 20 | 30 | μSec |
| Operating Temperature | -15 | 22 | 55 | ℃ | |
| Weight | 7.5 | 8 | 8.5 | g |
