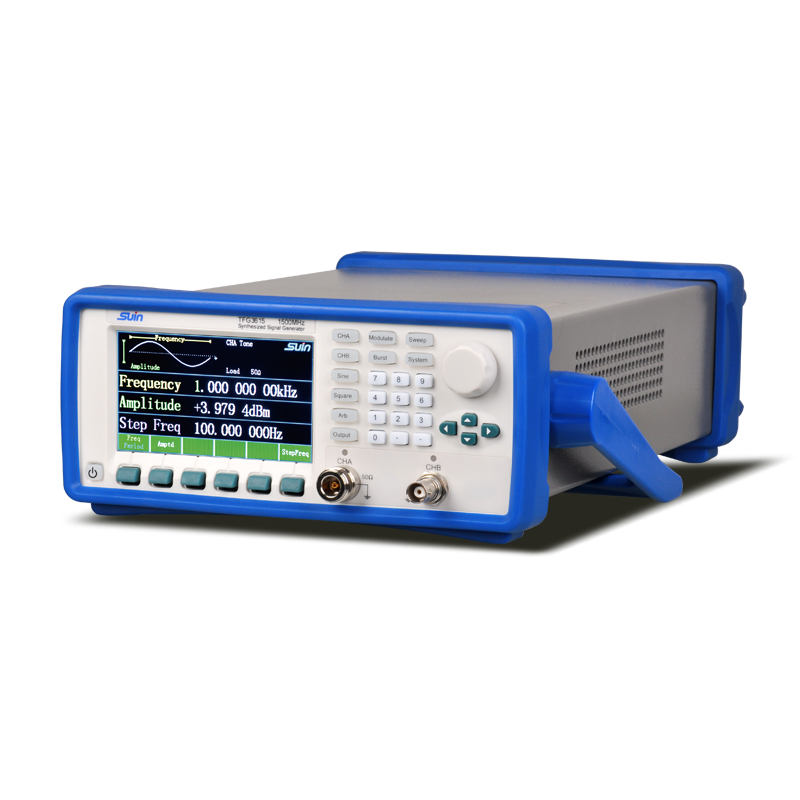

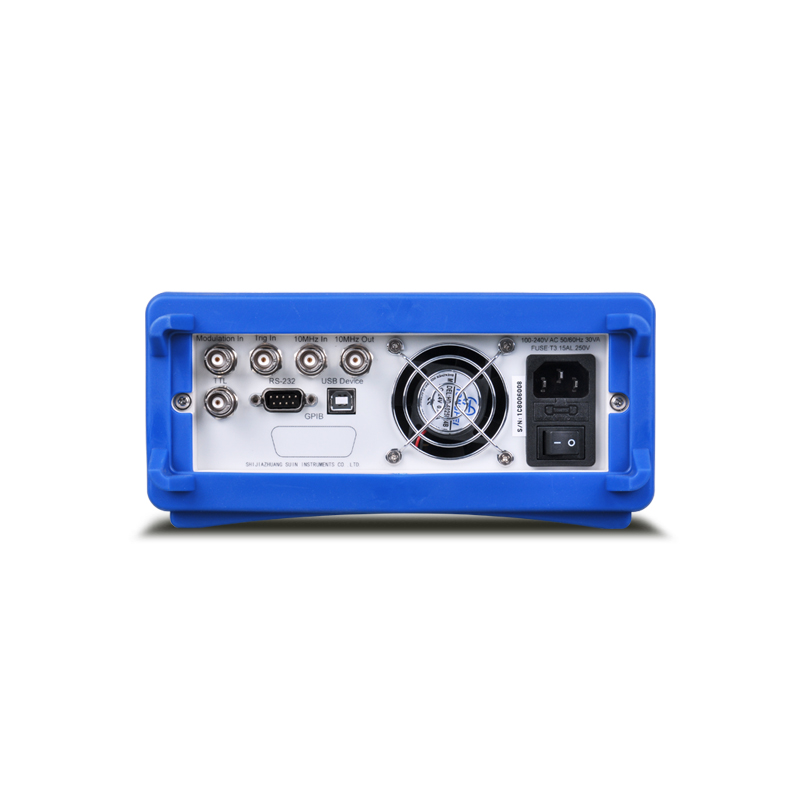

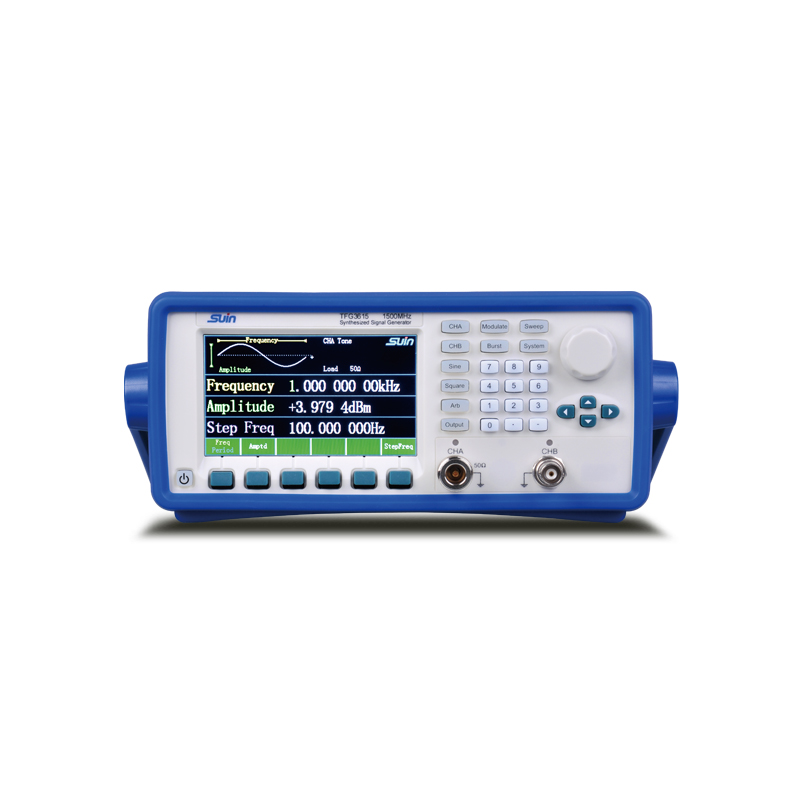

TFG3615 Series rf Signal Generator
US $979.00 - US $1920.00
Production Lead Time:
7-15 day(s)
Shipping Method:
By Courier, Air, Sea, Road, Railway, etc.
Model No.:
TFG3615
Description
Contact Supplier
Description
Features
- Perfect combination of DDS and PLL techniques
- Frequency upper limits to 1.5GHz
- Higher level of frequency accuracy,up to 1ppm
- Complete AM/FM/FSK/PSK modulation function
- Standard communication interface: USB Device, RS-232
Specifications
CHA | ||
| TFG3605 TFG3615 TFG3610 | ||
| Frequency | ||
| Range | Sine | 1μHz ~ 500MHz 1μHz ~ 1500MHz 1μHz ~ 1000MHz |
| Square | 1μHz ~ 80MHz | |
| Resolution | 1μHz (carrier frequency≤80MHz) | |
| 1Hz (carrier frequency>80MHz) | ||
| Accuracy | ±1ppm, Frequency≥1.0kHz, 18℃ to 28℃ | |
| ±50ppm, Frequency＜1.0kHz, Min. output 1μHz | ||
| Sine Output Level | ||
| Range | Freq≤500MHz | -127dBm ~ +13dBm(-127dBm ~ -117dBm typical) |
| Freq≤1000MHz | -110dBm ~ +13dBm(-100dBm ~ -110dBm typical) | |
| Freq≤1500MHz | -105Bm ~ +10dBm(-100dBm ~ -105dBm typical) | |
| Resolution | 0.1dB | |
| Accuracy | Freq≤300MHz | setting ±1dBm (output level +13dBm~-100dBm) |
| Freq≤1500MHz | setting ±2.2dBm (output level +13dBm~-80dBm, setting value±1.5dBm typ. ) | |
| setting ±2.7dBm (output level -80dBm~-100dBm, setting value±2.0dBm typ.) | ||
| Stationary Wave Ratio (SWR) | < 1.8 (output level≤0dBm) | |
| Spectrum Purity | ||
| Harmonic | < -33dBc (output level≤4dBm,typical value) | |
| Non-Harmonic | < -40dBc (output level≤4dBm, deviation CF≥5kHz） | |
| Sub-Harmonic | < -40dBc (output level≤4dBm） | |
| Residual FM | < 100Hz（BW: 0.3 ~ 3kHz, RMS< 120MHz） | |
| Square | ||
| Rise/Fall Time | ≤15ns | |
| Overshoot | ≤5% | |
| Modulation | ||
| Type | AM,FM, FSK, PSK | |
| External Modulation Input | Voltage Range: 5V full scale,Input Impedance: 10kΩ, Frequency: DC to 10kHz | |
| Frequency Sweep | ||
| Sweep Rate | 1ms ~ 800s Linear (carrier ≤80MHz) | |
| 100ms ~ 800s Logrithm(carrier ≤80MHz) | ||
| Step Time | 50ms ~ 10s Linear (carrier>80MHz) | |
| Burst(Carrier Frequency≤80MHz) | ||
| Burst Count | 1 to 10000 cycles | |
| Interval | 0.1ms to 800s | |
| CHB | ||
| Frequency | ||
| Range | 1μHz ~ 10MHz | |
| Resolution | 1μHz | |
| Accuracy | ±1ppm, Frequency≥1.0kHz, 18℃ to 28℃ | |
| ±50ppm, Frequency＜1.0kHz, Min. output 1μHz | ||
| Waveform | ||
| Type | Sine, Square, Ramp, Pulse, Sinc, Exp, Noise, DC | |
| Square | Rise/Fall Time | ≤50ns |
| Duty Cycle | 0.01% ~ 99.99% | |
| Pulse | Rise/Fall Time | ≤50ns |
| Pulse Width | 20ns ~ 20s | |
| Ramp | Symmetry | 0.0% ~ 100.0% |
| Output | ||
| Amplitude | 1mVpp to 10Vpp(50Ω), 2mVpp to 20Vpp(High Z) | |
| Offset | ±5Vpk ac+dc(50Ω), ±10Vpk ac+dc(High Z) | |
| Resolution | 5mVpp | |
| Accuracy | ±(1% of setting + 10mVpp)(1kHz Sine) | |
| Flatness | ± 0.5dB(1MHz Sine, 1Vpp) | |
| General Characteristics | ||
| Power | AC100V~240V, 50/60Hz,50VA Max | |
| Dimension & Weight | 254×103×374 mm, 4.2 kg | |
