VICTOR 610B+ True RMS Auto Range Digital Clamp Meter | Tester | Scientific, Testing & Laboratory Equipments

Shenzhen Victor Hi-Tech Co Ltd

Enquire

Compare & Bulk Enquire

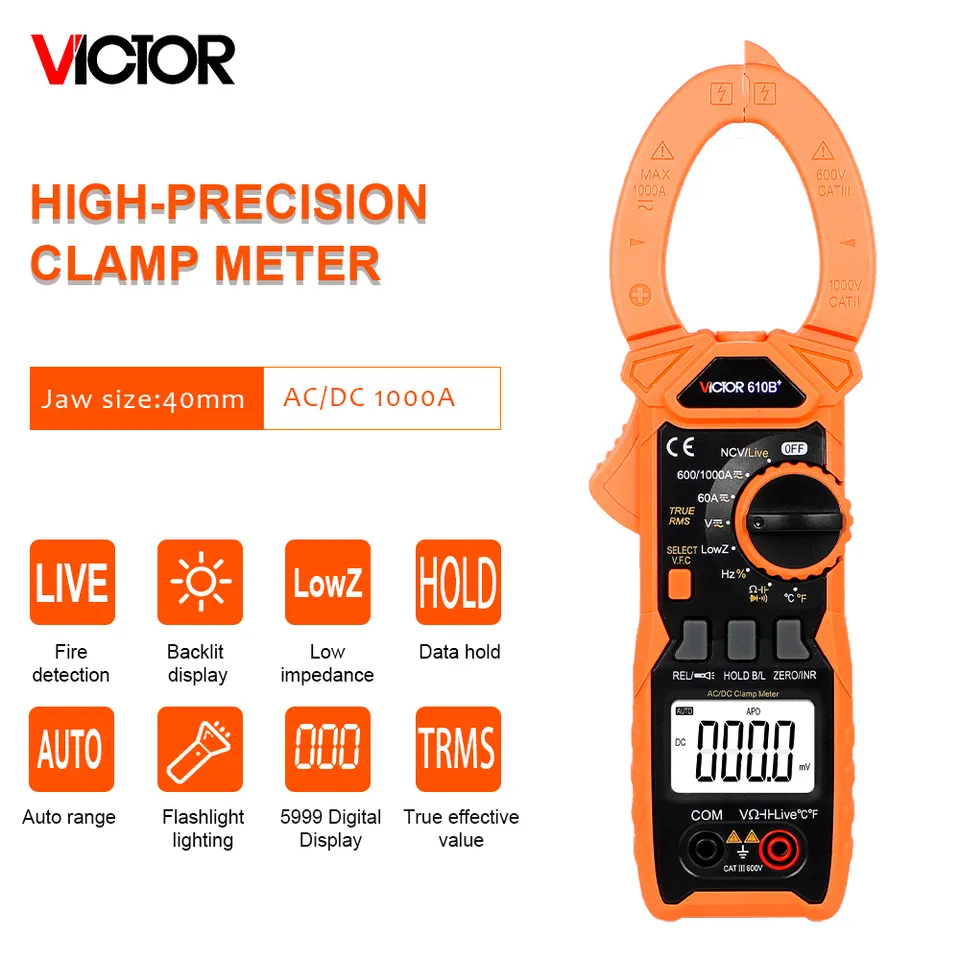

VICTOR 610B+ True RMS Auto Range Digital Clamp Meter

US $17.10 - US $19.00

US $18.00 - US $20.00

Production Lead Time:

40 day(s)

Shipping Method:

EXW

Model No.:

610B+

Brand:

Victor

Measuring Current Range: :

60A/600A/1000A

Measuring Voltage Range: :

600mV/6V/60V/600V/1000V

Measuring Capacitance Range: :

1nF/10nF/100nF/1uF/10uF/100uF/1mF/10mF

Measuring Resistance Range::

600Ω/6kΩ/60kΩ/600kΩ/6MΩ/20MΩ/60MΩ

Sampling rate: :

3 times/s

Counts: :

5999 Counts

Description

Contact Supplier

SUMMARIZE
This meter is a handheld automatic range digital multiemter which driven by battery. It can be used to measure such parameters as
DCV, ACV, ACA and DCA, Resistance, Continuity Buzzer, Diode, Frequency etc.

GENERAL FEATURE
Displaying:Max. displaying:5999,
Sampling rate: approx. 3 times/second.
Polarity indication:Automatic negative polarity indication
Over range indication:” OL” shown on the LCD
Low battery indication:“ ” appears
Operation environment:0℃～40℃,R.H.< 75%.
Storage environment:-10℃～50℃,R.H.<80%.
Power supply:(Size AAA battery)1.5V×2
Size:230×75×40mm
Weight:about 313g.
Accessories:user’s manual,battery, probes.

Specification

Model	VICTOR 610B+
DCV	600mV/6V/60V/600V	±（0.5%+7）
	1000V	±（1.0%+6）
ACV	6V/60V	±（1.0%+10）
	600V/750V	±（1.0%+12）
Resistance	600Ω/6kΩ/60kΩ/600kΩ/6MΩ	±（1.0%+5）
	20MΩ	±（1.5%+15）
	60MΩ	±（2.5%+20）
Low Impedance	6V/60V	±（1.0%+10）
	300V	±（1.0%+12）
DCA	60A/600A/1000A	±（4.0%+10）
ACA	60A/600A/1000A	±（4.0%+10）
Frequency	10Hz~10MHz	±（0.3%+3）
Capacitance	1nF	±（5.0%+40）
	10nF/100nF/1uF/10uF/100uF/1mF/10mF	±（5.0%+10）
Temperature	-20℃~1000℃ (-4-1832)℉	±（2.0%+5）
Continuity alarm	√
Data hold	√
Low voltage display	√
Auto power off	√
Flashlight	√
Overload Protection	√
Living Wire Detecting	√
INRUSH	√
VFC	√
NCV	√
True RMS	√
Auto power off	about 15 minutes

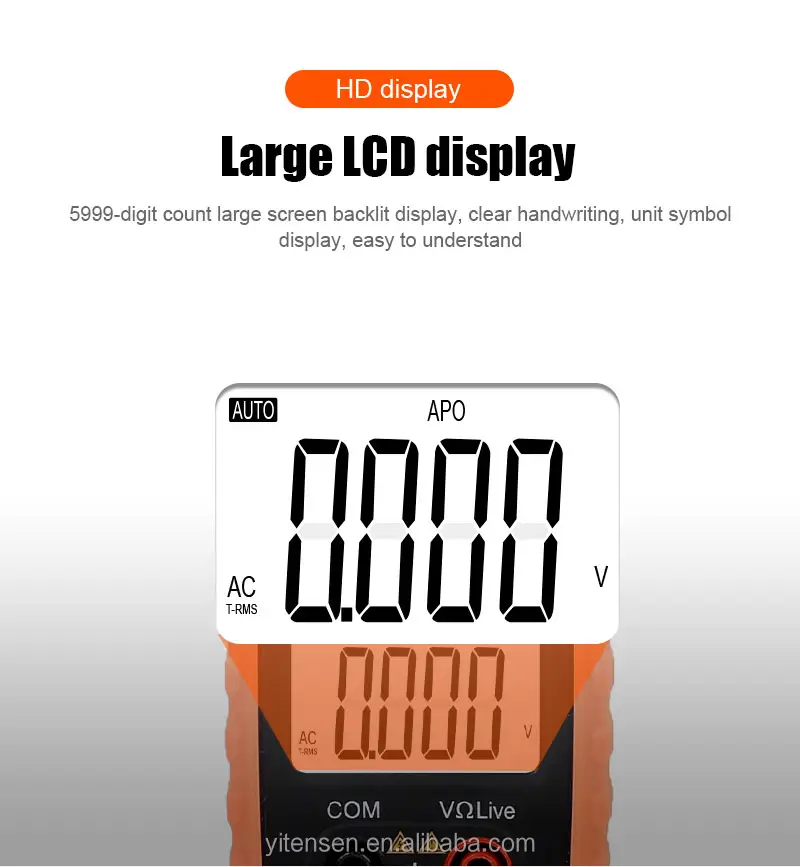

Display	LCD Display, Max. display 5999, update 3 times/s
Jaw opening	40mm
Polarity indicate	Cathode auto display
Overload indicate	OL indicating on the LCD
Low battery display	indicating on the LCD
Operation temperature	0℃~40℃, less than 80%RH
Storage temperature	-10℃~50℃, less than 80%RH
Battery type	(Size AAA) 1.5V×2
Size	2307540mm
Weight	About 313g
