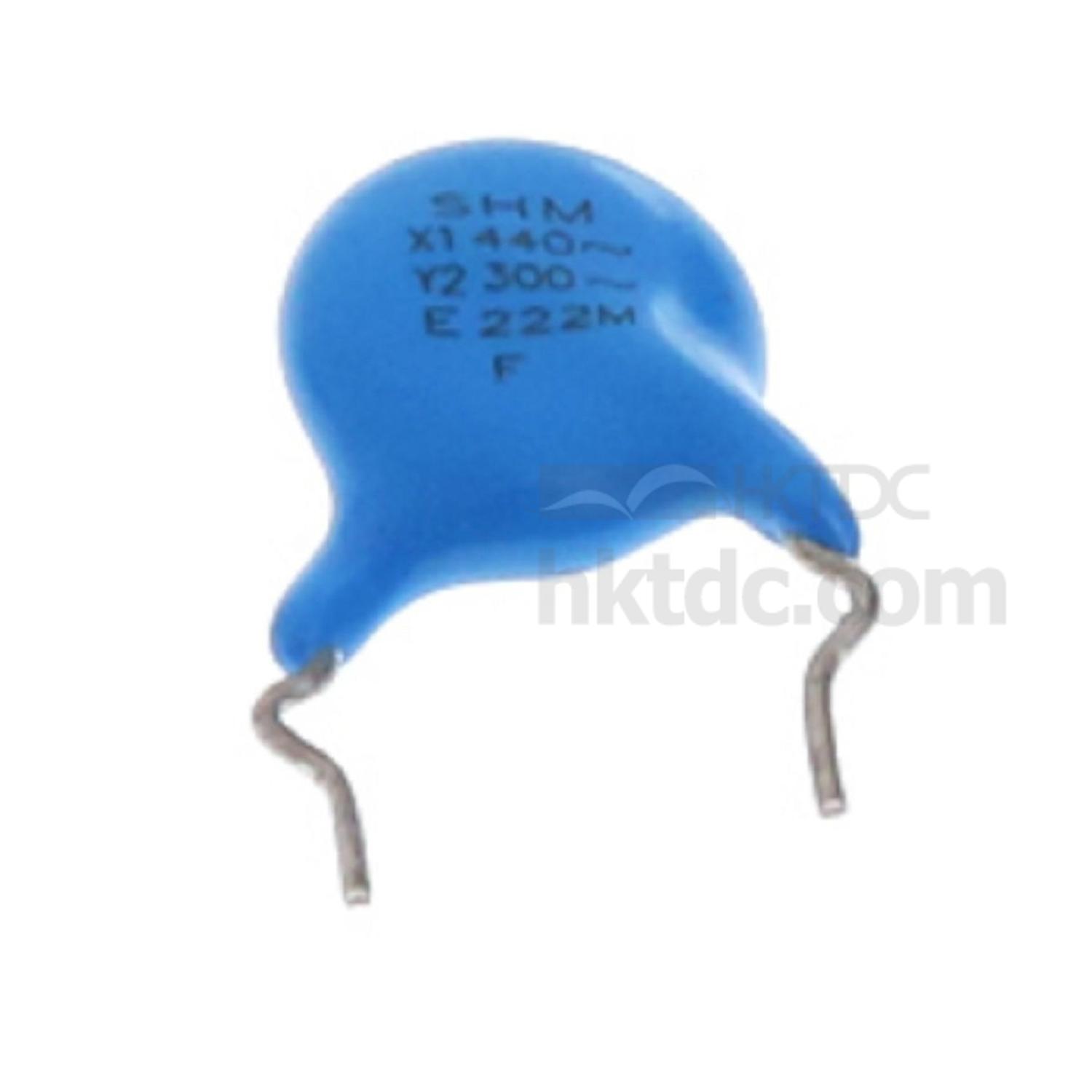

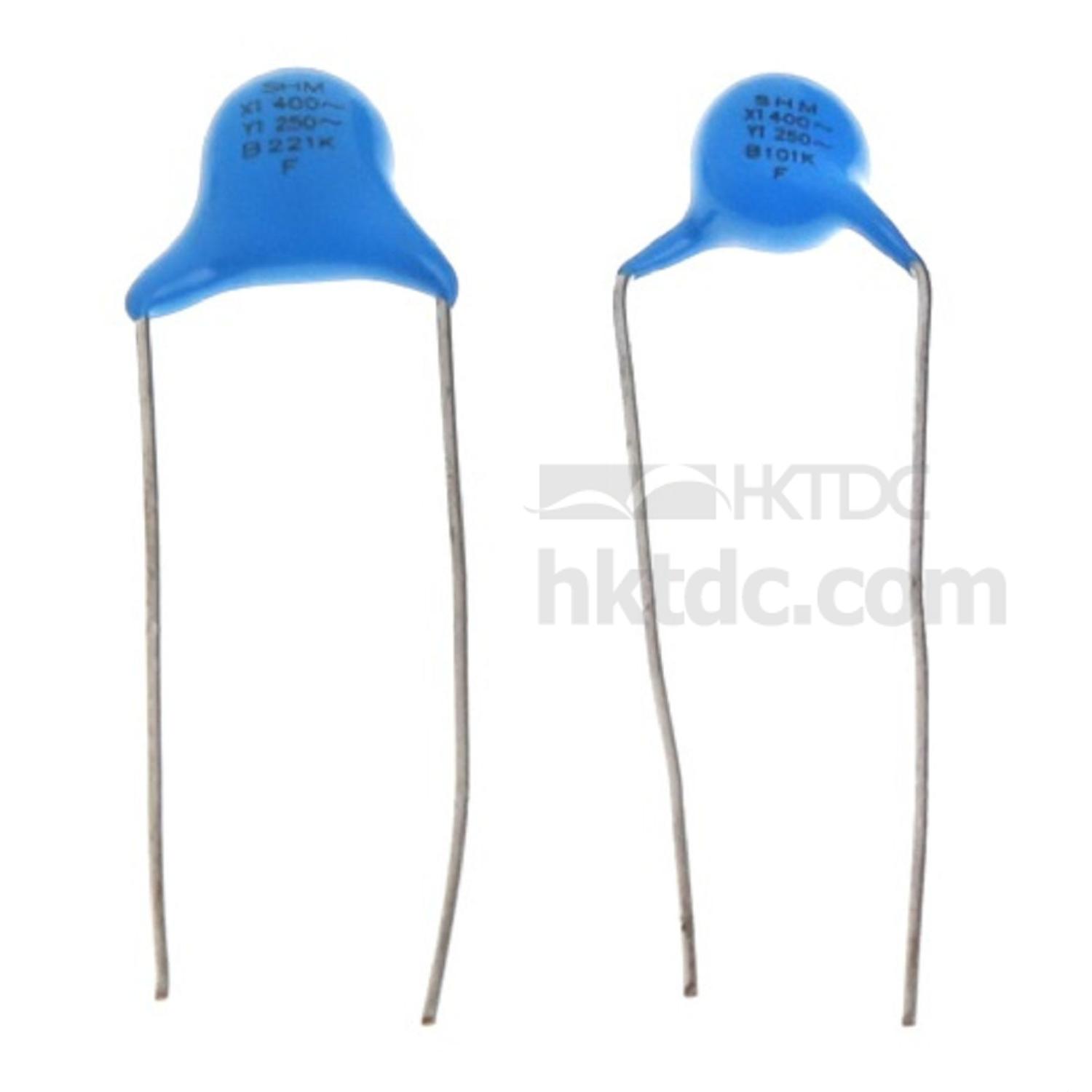

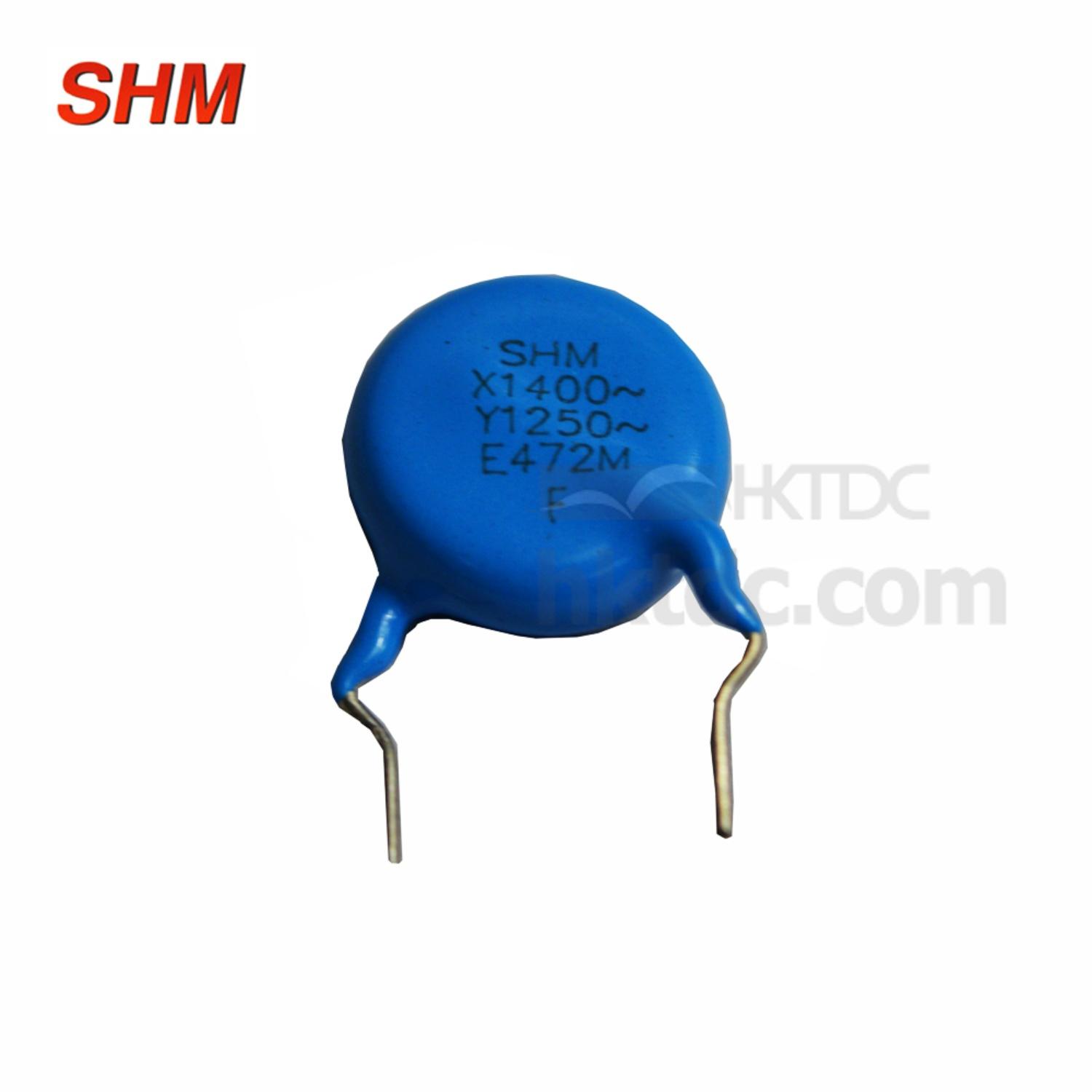

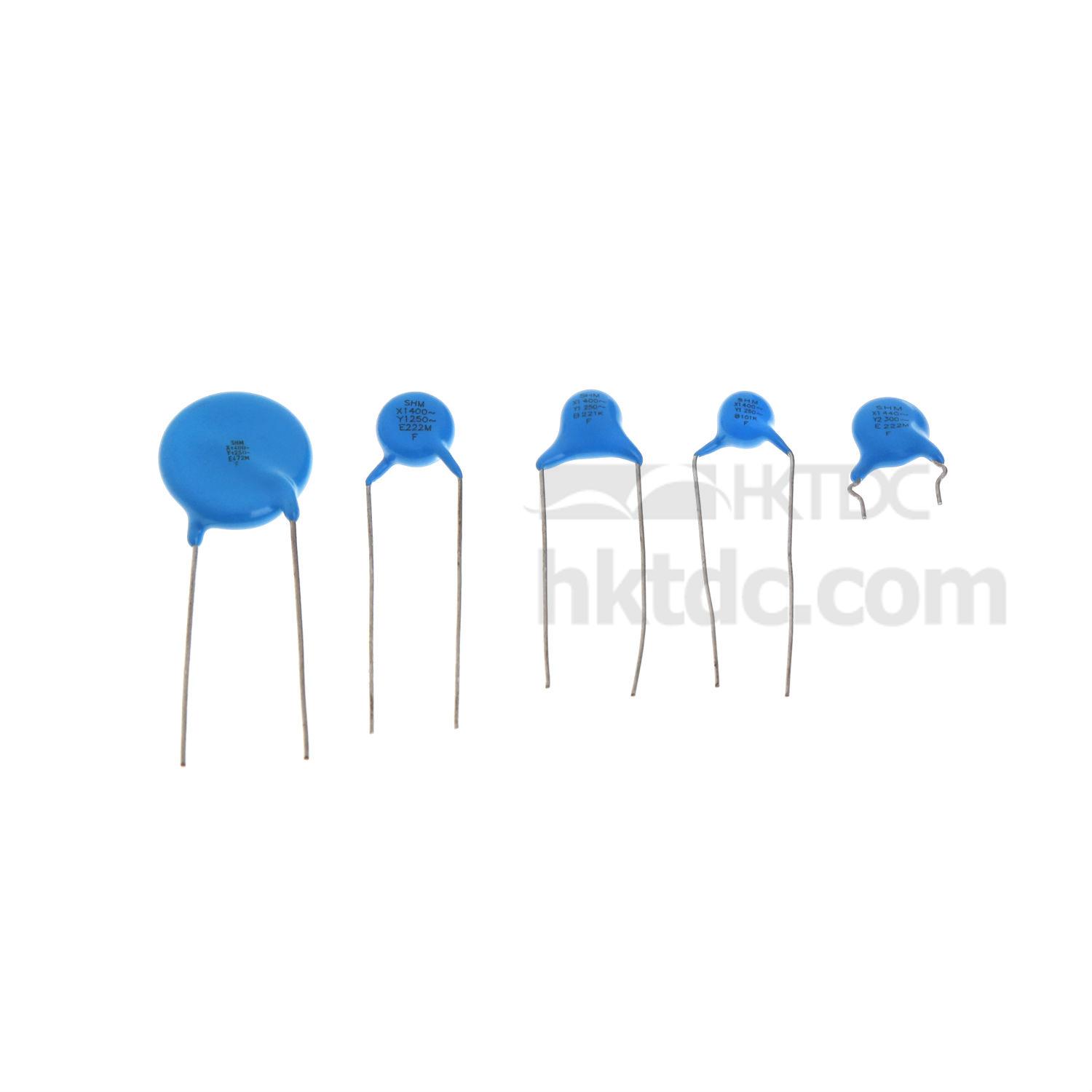

X1 Y2 Capacitor
Model No.:
472M Y2
Brand:
SHM
Colour:
Blue
Package:
Yes
Customised:
Yes
Operating Temperature:
-25~125℃
Rated Voltage:
250, 400VAC
Description
Contact Supplier
Description
- Operating temperature: -25~125℃
- Capacitance and dissipation factor testing condition: 25℃, 1Vrms, 1KHz
- Dissipation factor ≦2.5%
- Subclass: X1, Y1, Y2
- Rated Voltage: 250, 400VAC
- Voltage proof: 1500VAC, 2500VAC, 4000VAC
- Insulation resistance ≧10000MΩ (500VDC)
- Temperature Characteristic: Y5P, Y5U, Z5U, Y5V
- Flame retardant epoxy resin: UL94-0
- Recognized standards: UL, CSA, VDE, SEMKO, KTC, NEMKO, DEMKO, FIMKO, SEV, CQC.
