YO2086s-1GD(R2)-220
Production Lead Time:
14 day(s)
产品型号:
YO2086s-1GV(R2W)
Brand:
Yoswit
Size:
L: 86mm x W: 86mm x H: 32mm
Port:
Hong Kong, Zhongshan, China
Type of Payment:
PayPal, Bank Transfer
Minimum Order Quantity:
1 piece
Operating Temperature:
-10°C to 40°C
Max. Current:
6A
防护等级:
IP20
Package:
Yes
Customised:
Yes
Max. Voltage:
AC100 - 240V
Description
Contact Supplier
Description

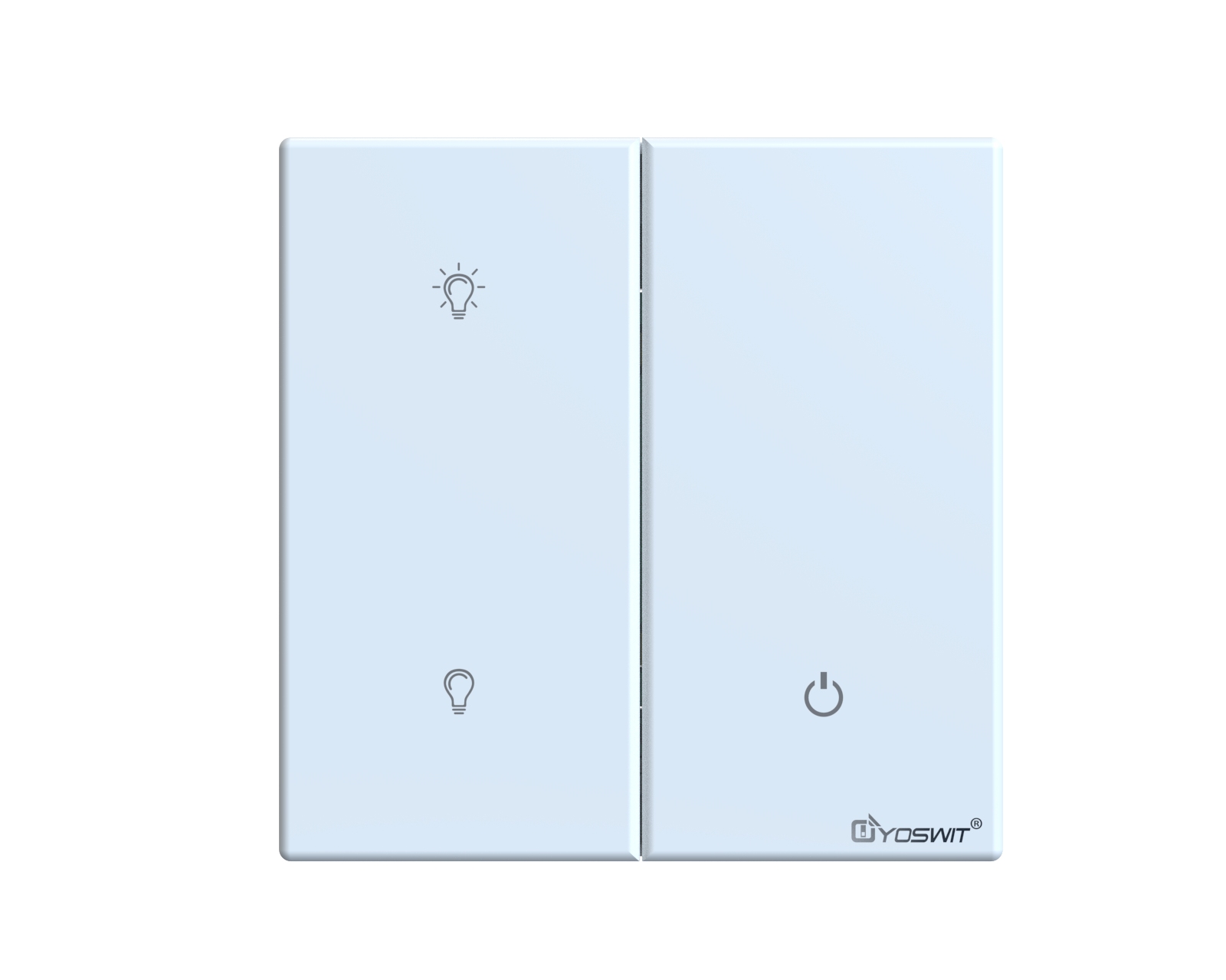

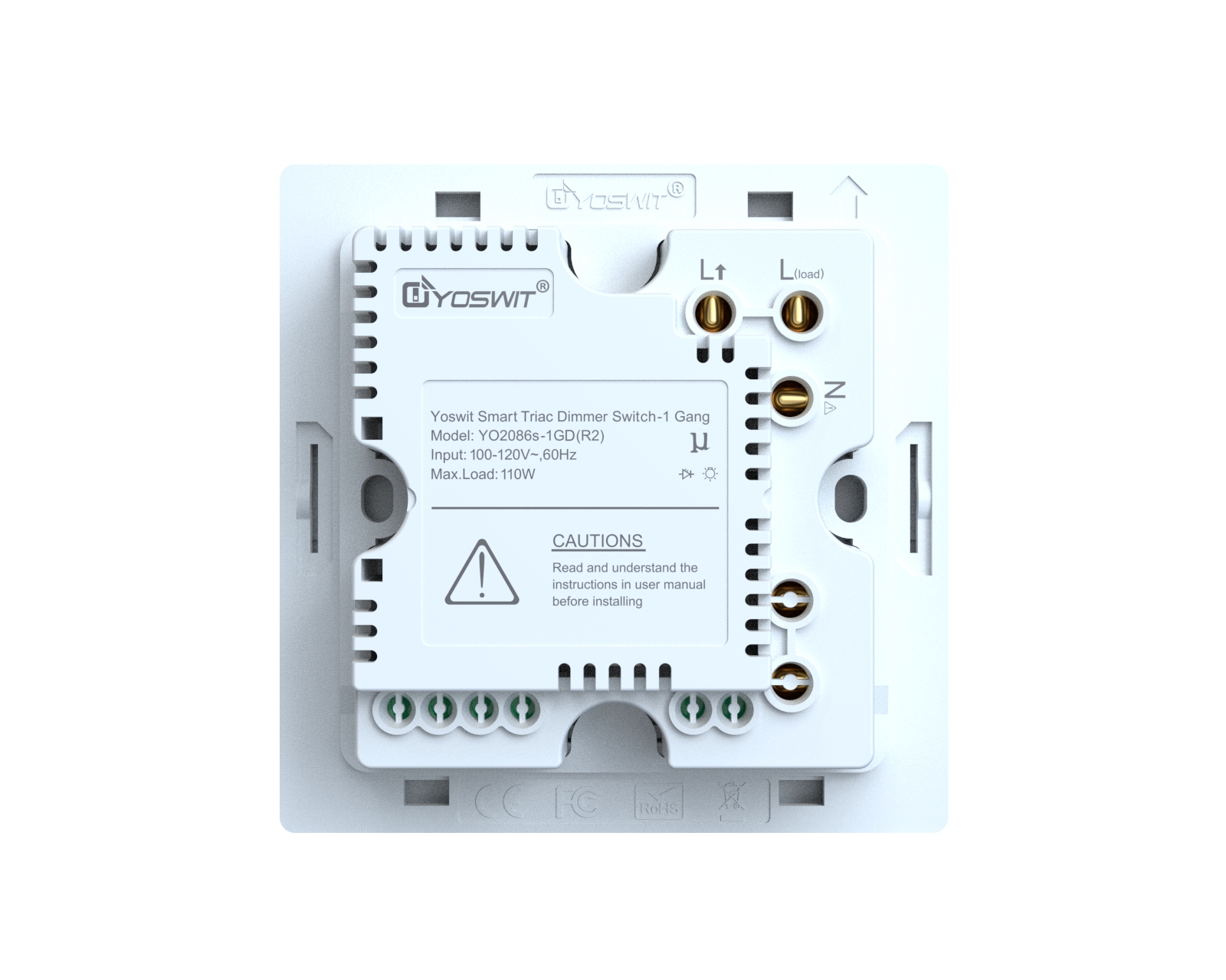

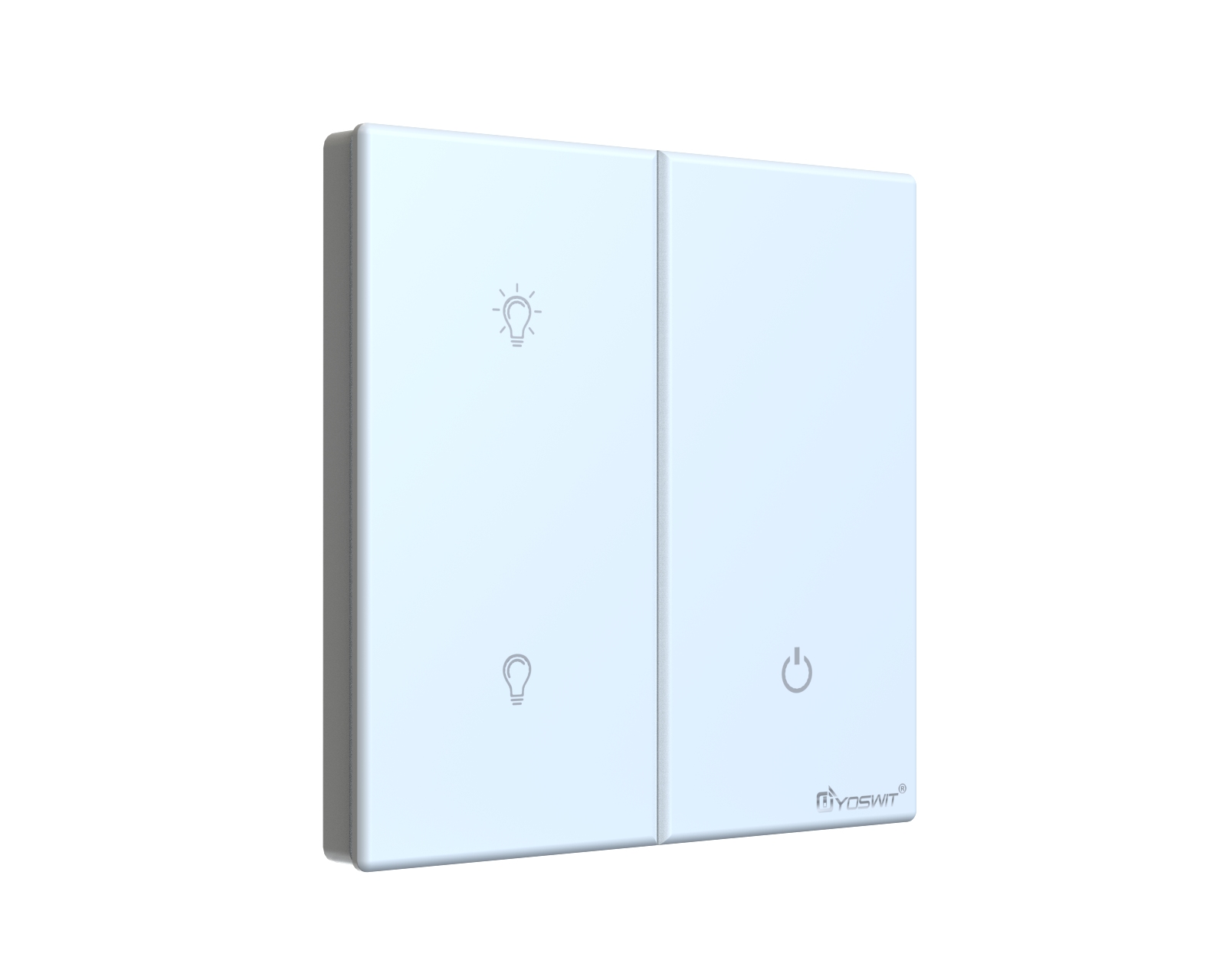

Yoswit Smart TRIAC Dimmer Switch
Model: YO2086s-1GD (R2)-220
Product Name: Yoswit Smart TRIAC Dimmer Switch
Panel Type: 86-type
Revision: V7.0
Designed by: Yoswit in Hong Kong, China
Assembled in: Guangdong, China
Certifications: CE (EMC + LVD), FCC, RoHS
Product Summary
A smart TRIAC dimmer switch for whole-home atmosphere control. It replaces traditional dimmer switches without gateway, rewiring, complex setup, or manual pairing. Unlike the 0–10V models, this unit focuses on TRIAC / phase-cut dimming and is tuned for 200–240V AC markets.
Key Features
- High compatibility: Incandescent, dimmable LED, dimmable CFL
- Leading-edge & trailing-edge dimming: Supports both phase-cut dimming methods
- Works with dimming loads: No brand-locked driver required; swap the old dimmer and it is ready
- Custom dimming step: Adjust brightness increment via Yoswit App
- High-precision dimming: Stable performance, no flicker
- Voice & remote control: Via Yoswit App; smart speaker linkage when paired with gateway
- Brightness memory: Remembers last brightness level after off/on
- Low power consumption: ≤1W standby/module power
- No hub required: BLE-based, auto-detected by Yoswit App
- No rewiring / no pairing / no complex configuration
- 2-in-1 concept: TRIAC dimming + compatible with neutral-wire 0–10V driver setups in the Yoswit family
Electrical Specifications
Item | Value |
|---|---|
Input Voltage | 200–240V AC, 50/60Hz |
Power Consumption | ≤1W |
Max Load | 1A |
Mechanical Specifications
Item | Value |
|---|---|
Operating Environment | Indoor only |
Operating Temperature | -10°C ~ 40°C |
Operating Humidity | 0–95% RH, non-condensing |
Control Method | App / Manual |
Ingress Protection | IP20 |
Product Size | 86 × 86 mm (86-type panel) |
Wireless Specifications
Item | Value |
|---|---|
Bluetooth Version | Bluetooth 4.2 (BLE) |
Frequency | 2.4 GHz |
Range | >50 m open area / 3–20 m indoor |
App Compatibility
- iOS 13.0 or later
- Android 7.0 or later
- Yoswit App (App Store / Android APK)
- Bluetooth Smart Ready devices supported
Package / Documents
- Smart TRIAC dimmer switch main unit
- Mounting screws
- User manual (EN / Simplified Chinese)
- Datasheet
- Leaflet: Smart Lighting Switch
- Product catalogue / Hong Kong product catalogue

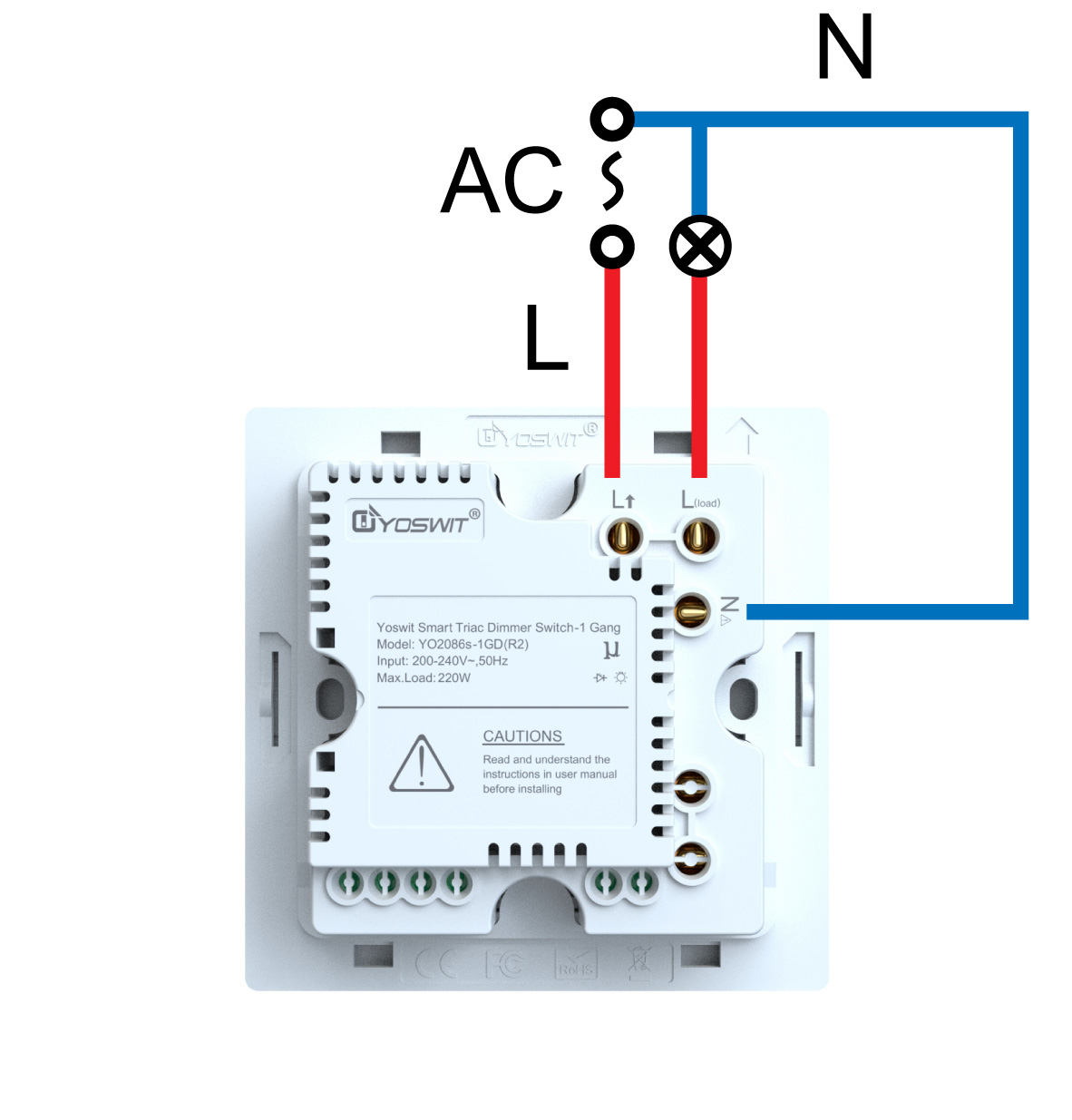

Installation Warnings
- Turn off circuit breaker before installation; install by licensed electrician
- Ground the device according to local electrical code
- For 2-wire no-neutral: if flicker/no-light occurs, use 3-wire (N) wiring or install LED stabilizer across lamp terminals
- After wiring: press button 2–3 times to verify load toggles; open Yoswit App for auto-detection
Competitive Notes vs Schneider / Legrand / Leviton / Lutron
- No gateway
- No rewiring
- No setup / no pairing
- TRIAC dimming (leading-edge + trailing-edge)
- Neutral-wire 0–10V capable in Yoswit platform
- Bluetooth 4.2 core technology
- Panel support: 55 / 86 / 118 / 120 (this unit: 86-type)
