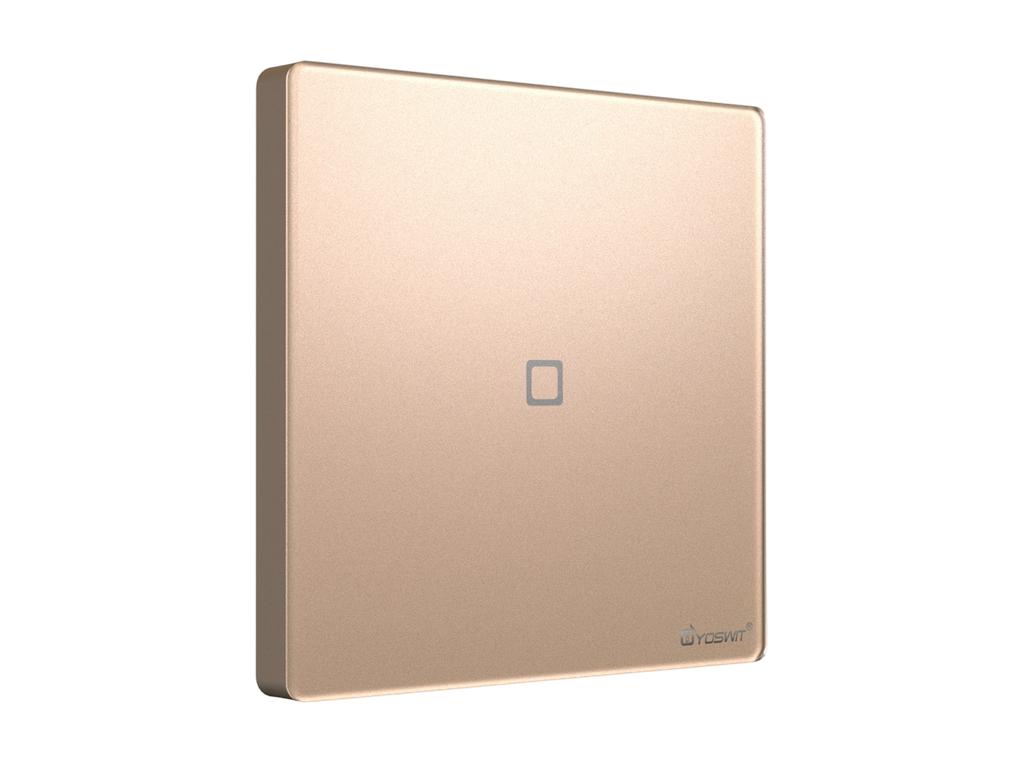

Yoswit Smart Touch Two-Way Light Switch — 1 Gang

Product Name: Yoswit Smart Touch Two-Way Light Switch

Model: YO2086s-1GMT (R2)

Panel Type: 86-type

Revision: V7.0

Manufacturer: Made by Yoswit in Hong Kong, assembled in Guangdong, China

Certifications: CE EMC, CE LVD, FCC, RoHS

Tagline

Control lights and appliances anytime, anywhere with a smart wall switch.

Key Features

• No rewiring
  Unlike many similar products, Yoswit smart light switches work with both 2-wire (no neutral) and 3-wire (with neutral) installations. No rewiring or renovation is required—just replace the traditional wall switch.
• Compatible with traditional two-way switches
  Works together with a conventional two-way switch, giving you more flexibility in staircases, hallways, and multi-entry rooms.
• High compatibility
  Supports common bulb types from incandescent to LED. Under 2-wire wiring, it supports low-wattage LED down to 3W.
• Delay & timer function
  Delay switching helps save energy in spaces needing brief lighting such as kitchens, staircases, bathrooms and storerooms. Timers can keep lights on until you leave an area.
• Dual operation modes
  Configurable in the Yoswit App: use as a normal light on/off switch, or as a lock switch to control an electric door / gate.
• Switch lock
  Lock the switch on or off to prevent accidental operation at home, in the office or in public areas. Enable/disable from the Yoswit App.
• Customizable LED indicator
  Each Yoswit smart light switch has an LED indicator. You can set it to stay on continuously or light only when power is connected, directly in the Yoswit App.
• Default power-on state
  After power restoration, the switch can default to ON or OFF based on your setting.

Specifications

Wiring Notes

• 2-wire: live + load, no neutral; supports LED ≥3W.
• 3-wire: live + load + neutral for more stable operation.
• If flickering occurs in 2-wire mode, either:
  1. use 3-wire wiring with neutral, or
  2. install the optional LED stabilizer across any lamp.

Installation Warnings

• To avoid electric shock, disconnect power at the source before installation.
• Installation must be carried out by a licensed electrician.
• To reduce the risk of electric shock, ground the switch according to local regulations. A missing ground wire results in an unsafe installation and may cause personal injury.
